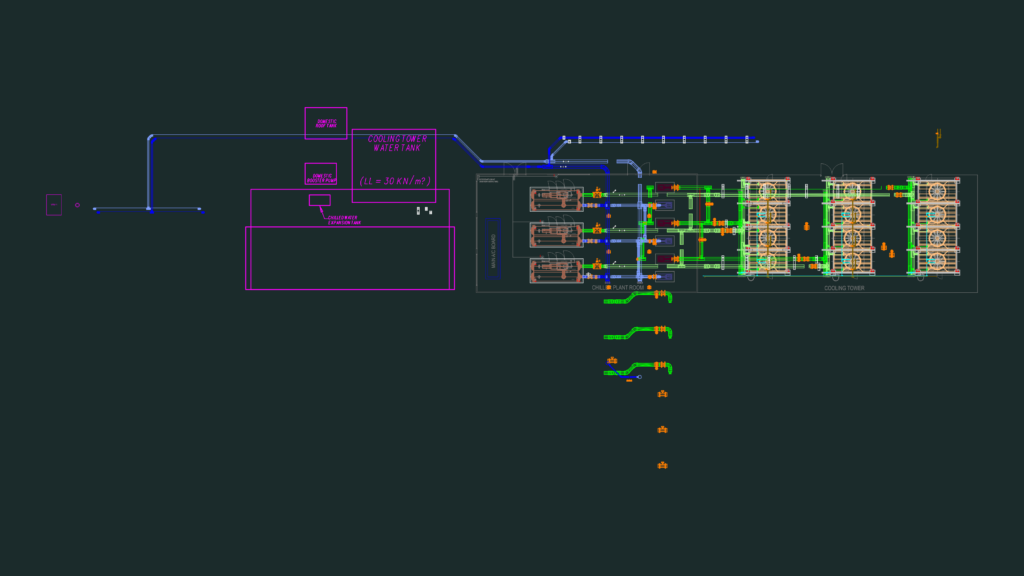

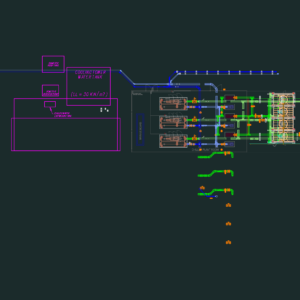

Chiller plant room 3D layout featuring chilled water (CHW) and condenser water (CDW) piping systems. Includes cooling towers, CHWP/CDWP pump sets, Victaulic fittings, and expansion tanks; 30 kN/m² live load spec for cooling tower water tank area.
3D Chiller Plant Room Layout with MEP Piping
