4-Story Medical Clinic Gastromed Açailândia

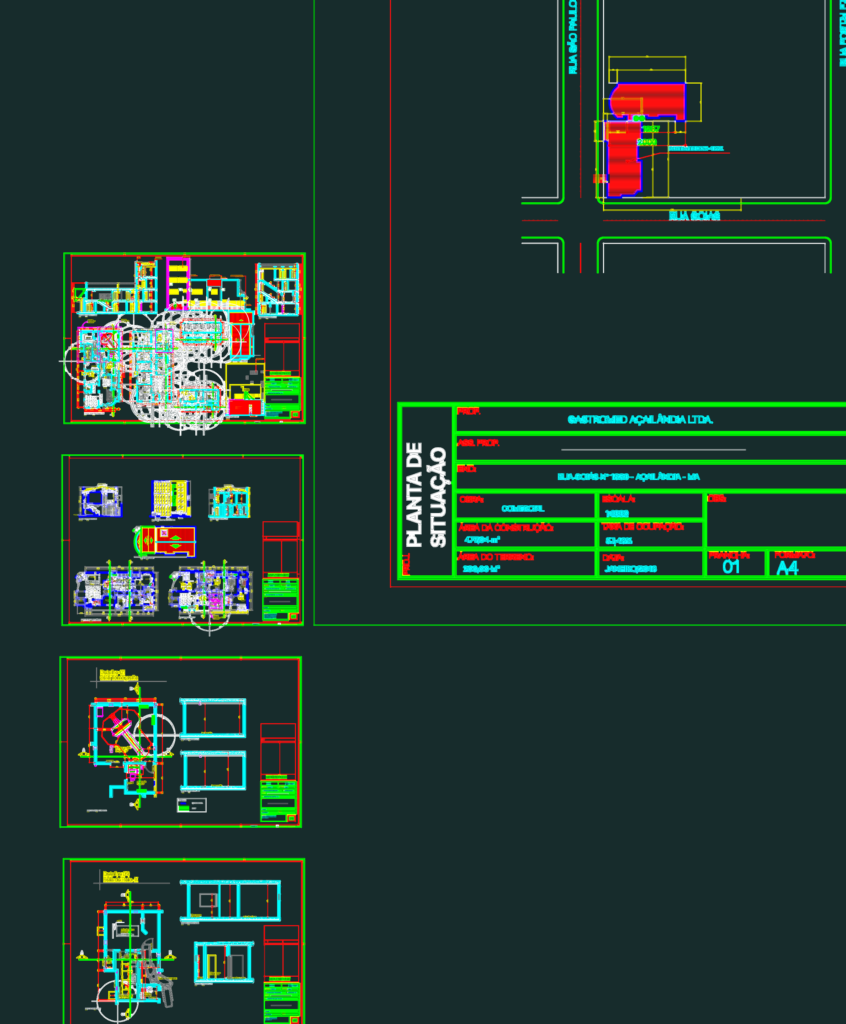

Detailed architectural floor plans, sections, and elevations for a four-story medical clinic.

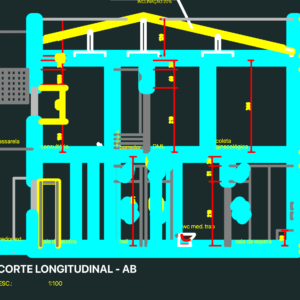

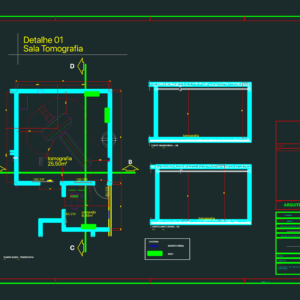

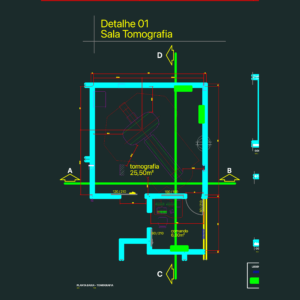

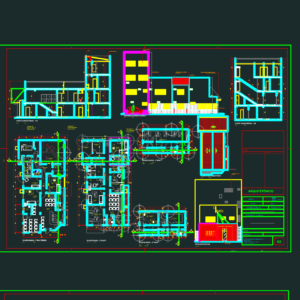

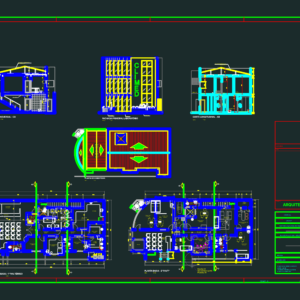

Architectural documentation for a 477.04 m² clinic incl. GA plans for 4 levels and specialized diagnostic imaging suites. Sections AB and CD show typ. masonry thk. and fiber cement roof specs at 20% incl.

PREMIUM

File Details

File Type
DWG
Type
Full Project
Language
Portuguese
Materials
Masonry, Concrete, Glass, Aluminum
Units
Metric
Area
250 – 499 m² (2691.0 – 5371.2 ft²)
Features
Parking, A/C, Elevator
Uploaded by
Daniel
Category
Hospital & Health Centres, Public Facilities
Published
Jun 15, 2026
Price $3.87
or

or get unlimited access from $7/mo

Tags

architectural sections CLINIC diagnostic center DWG floor plan Gastromed Hospital Design medical center Tomography Room
