8mm lead screw replacement parts

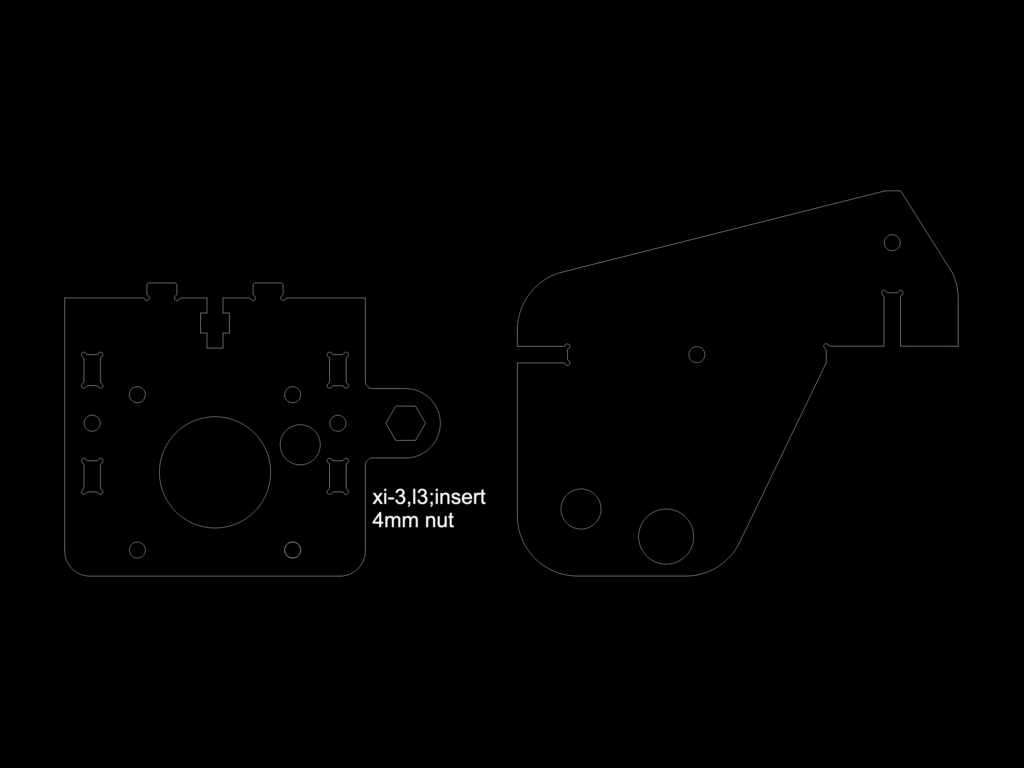

2D CNC profiles for an 8mm lead screw carriage plate with 4mm nut hex insert and auxiliary bracket.

Replacement profiles for 8mm lead screw drive. Includes carriage plate with 4mm nut insert hex and auxiliary bracket.All dims in mm.

FREE

File Details

File Type
DWG
Type
Detail
Language
English
Materials
Aluminum, Steel, Plastic
Units
Metric
Area
10 – 49 m² (107.6 – 527.4 ft²)
Uploaded by
CAD Workshop
Category
CNC, Woodworking
Published
Apr 17, 2026

Download faster, ad-free, with more daily files from $7/mo

Tags

8mm Cnc lead screw machine plate mechanical metric nut insert replacement parts
