ADA parking stall layout and site paving details

Name: ADA parking stall layout and site paving details
Brand: Designs CAD
SKU: 841049
Availability: InStock

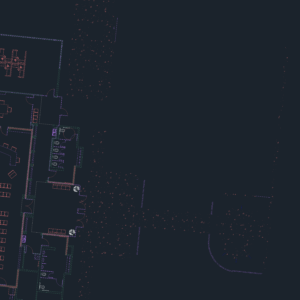

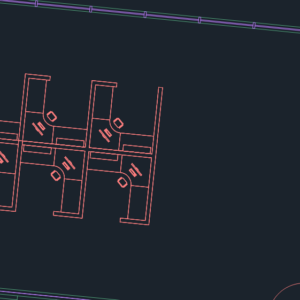

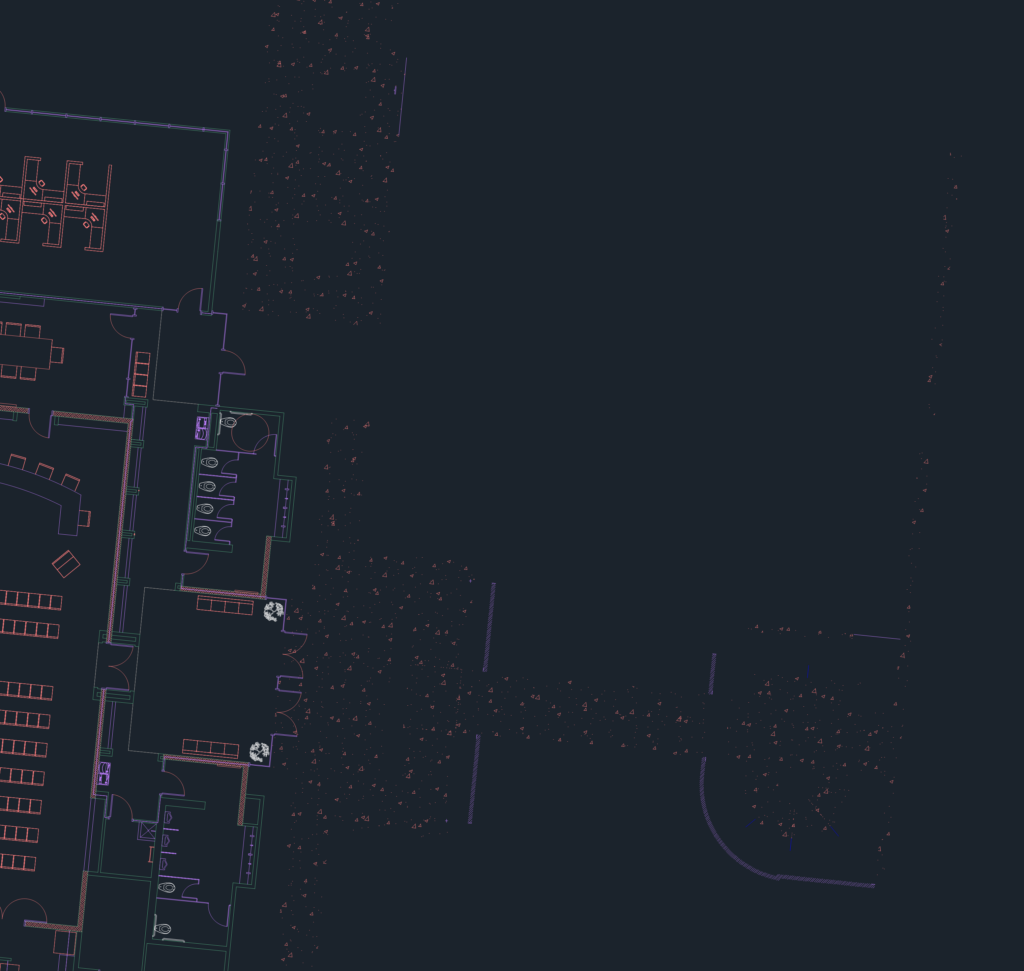

CAD site layout showing building floor plan, ADA parking stalls, and pavement striping details.

Site layout showing ADA parking stalls, 4″ thk. 3,000 PSI concrete paving and asphalt sections. Incl. details for truncated domes and curb ramps at 8.3% max slope.

FREE

File Details

File Type: DWG
Type: Plan
Language: English
Materials: Concrete, Other
Units: Imperial
Area: Over 5000 m² (53819.5 ft²)
Features: Parking, Garden / Park
Uploaded by: Blueprint Hub
Category: Public Facilities, Transportation & Parking
Published: May 22, 2026

Download faster, ad-free, with more daily files from $7/mo

Tags

ADA compliance asphalt paving civil engineering concrete paving curb ramp landscape parking lot parking stalls site plan striping detail truncated domes
