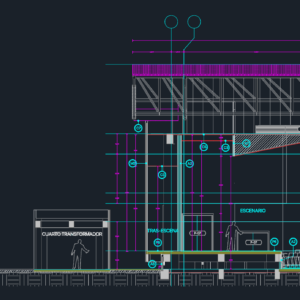

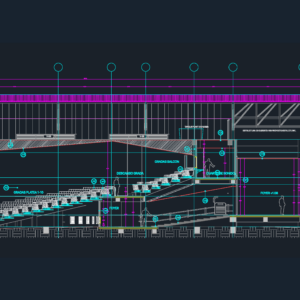

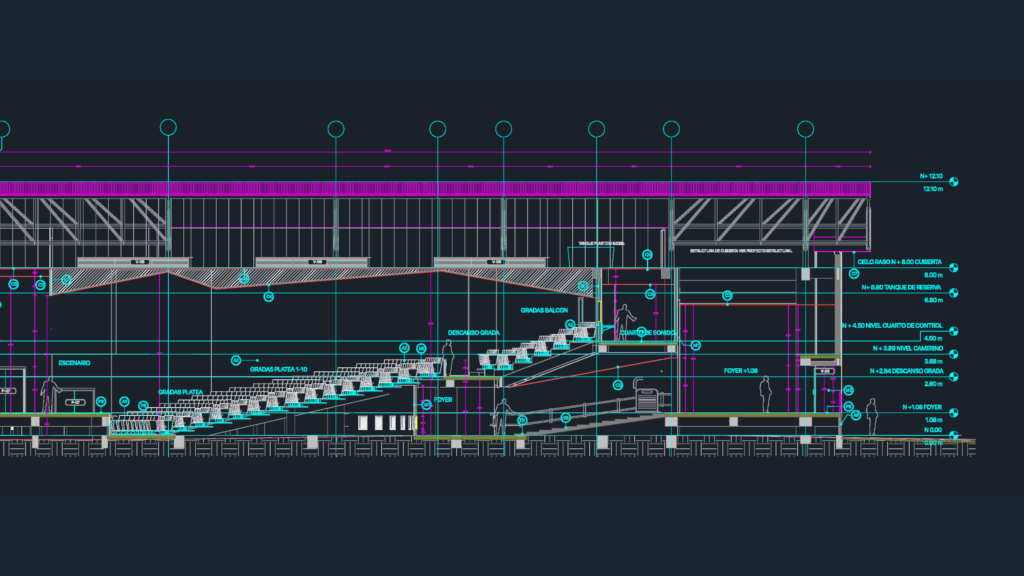

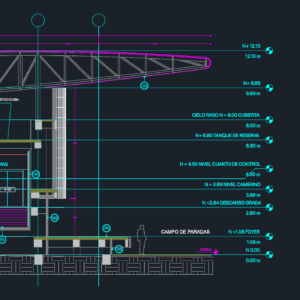

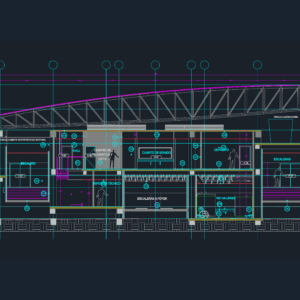

sections for a theater or auditorium project. Includes Corte C-C and Corte D-D at 1:100 scale. Seating areas for the main floor and balcony are shown alongside the stage and backstage. Technical spaces like the sound room, CCTV room, and transformer area are located near the foyer. A full list of material specs is attached, incl. acoustic MDF panels, drywall, and porcelain tile finishes. Roof detail shows the trss structure and a 5,000L reserve tank. Levels are marked from 0.00m to 12.10m.
Auditorium Building Sections DWG with Seating and Technical Details
