Auditorium – Plants – Sections – Details

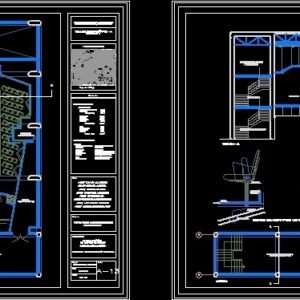

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):
