Two-storey detached beach house project including architectural floor plans, sections, and elevations. The layout is designed for an irregular site footprint, featuring a ground-floor patio with integrated landscaping and a fireplace.

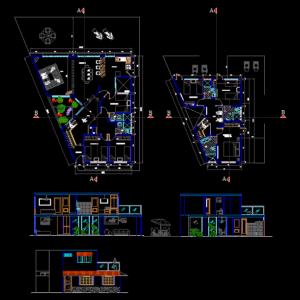

The CAD file contains:
- Ground floor plan: Entrance hall, kitchen, dining room, living area with fireplace, two bedrooms, bathrooms, and a central patio.
- Upper floor plan: Master bedroom suite, additional bedrooms with built-in closets, hall, and terrace access.
- Technical drawings: Longitudinal and transverse sections (Corte A-A and Corte B-B) showing internal heights and stair transitions.
- Main elevation: Front facade view showing the balcony, window treatments, and exterior material levels.
Drawings include dimensions in metric units and are noted at 1/50 scale. The layout is organized for a single-family residence with multiple bedrooms and shared social spaces. Proyecto de vivienda unifamiliar, casa de playa.
