Building sanitary installation plan with sewage & rainwater details

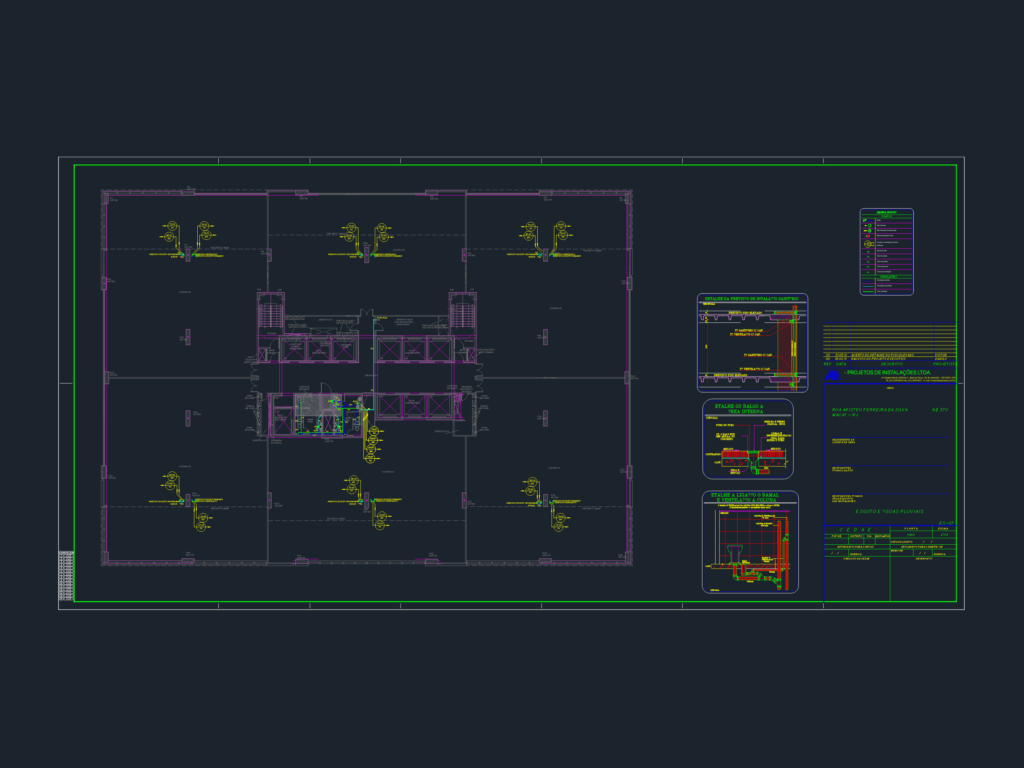

AutoCAD floor plan showing sanitary sewage and rainwater systems with technical details of drain connections and vents.

Plumbing layout plan for building including drainage & vent details etc.

PREMIUM

File Details

File Type
DWG
Type
Plan
Language
Portuguese
Materials
Plastic, Steel
Units
Metric
Area
50 – 149 m² (538.2 – 1603.8 ft²)
Uploaded by
Rafiq
Category
Public Facilities, Water Sewage & Electricity Infrastructure
Published
May 3, 2026
Price $6.87
or

or get unlimited access from $7/mo

Tags

autocad drainage floor plan MEP plumbing sanitary details sewage
