Cabin Gas DWG Block for AutoCAD

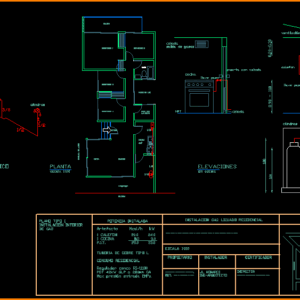

MAP OF GAS HUT IN CHILE.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Plant scale, Cylinders, balcony, bedroom, Bathroom with washing machine, Patio light, bath, to be, dinning room, access, Water heater, ventilation, Antebellum, kitchen, Isometric scheme, Car entrance, kitchen, Water heater, ventilation, Key step, road, Npt, kitchen, Location, owner, Installer, Jl menares, Rut:, Residential liquefied gas installation, scale, Certifier, inspector, installed potency, Kw artifact, Calefon cocina p.i.t., Copper pipe type, Residential consumption, Flat type indoor gas installation, Regulator cemco pot glp ca max pressure inlet, Key step, regulator, Test you, Cylinders, Non-stop elevations, Celosia exhaust, Lattice door, Lattice

Raw text data extracted from CAD file:

N O E S PLANTA escala 1:100 cilindros 1/2 BALCON DORMITORIO 1 DORMITORIO 2 DORMITORIO 3 DORMITORIO 4 BAÑO CON LAVADORA PATIO DE LUZ BAÑO ESTAR COMEDOR ACCESO C 1/2 R 3/8 1/2 calefon ventilación 1/2 R 1/2 ANTEJARDIN 1/2 1/2 1/2 3/8 cocina ESQUEMA ISOMETRICO ENTRADA DE AUTOS cocina calefon ventilación llave paso llave paso CALZADA NPT NPT COCINA 15m UBICACION —— —— —— —– ——- ——————————- PROPIETARIO INSTALADOR JL MENARES ING-ARQUITECTO ————–. RUT: ———- INSTALACION GAS LICUADO RESIDENCIAL ESCALA 1:100 CERTIFICADOR INSPECTOR —————- POTENCIA INSTALADA Artefacto Mcal/h kW 1 CALEFON 1 COCINA P.I.T. 20.0 8.0 28.0 24.0 9.0 33.0 TUBERIA DE COBRE TIPO L CONSUMO RESIDENCIAL PLANO TIPO I INSTALACION INTERIOR DE GAS Regulador cemco RI-11100 POT 42kW GLP a 280mm CA Max presión entrada 2MPa R H llave paso regulador Te de prueba 100 130 cilindros ELEVACIONES sin escala 0.90 – 110 0.20-0.30 100 3 celosia salida de gases puerta con celosia celosia
