The project is located on flat land 20m x 45m situated on a corner with 2 colindancias has the following areas: Administration (ground floor) – Waiting Room – Secretariat – Office of Command – Office subcomandancia – Health Areas of training and services (ground floor) – Nursing – Classroom training – Command Center – Bodega controlled chemicals and equipment stores – Wine Tools – hose drying area rest areas and services for personal (upstairs) – Bedroom men / women – Health – Fitness – Playground – Stay – Kitchenette – Dining Room Upstairs privacy through a lattice facade protects; allowing natural light. having open space for 4 large buses firefighters; and 2 spaces for medium buses; .

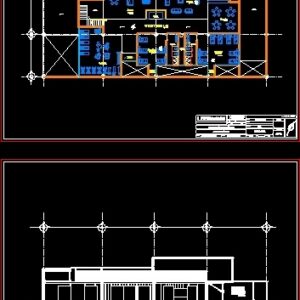

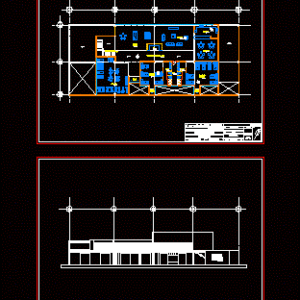

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):
low level, new, CD. see., key of the plane, flat, modifications, location, Location, type of unit, type of work, scale, date, dimension, architectural design workshop vii, architectural, anthony moon guandulay, meters, project, draft, fire station, north, apb, access, n.p.t., top floor, new, CD. see., key of the plane, flat, modifications, location, Location, type of unit, type of work, scale, date, dimension, architectural design workshop vii, architectural, anthony moon guandulay, meters, project, draft, fire station, north, apa, general facade, new, CD. see., key of the plane, flat, modifications, location, Location, type of unit, type of work, scale, date, dimension, architectural design workshop vii, architectural, anthony moon guandulay, meters, review, project, draft, fire station, north, afg, longitudinal section, new, CD. see., key of the plane, flat, modifications, location, Location, type of unit, type of work, scale, date, dimension, architectural design workshop vii, architectural, anthony moon guandulay, meters, review, project, draft, fire station, north, acg, goes up, bedroom women, secreteria, bedroom men, fitness center, dinning room, kitchenette, stay, Games area, lockers, sanitary, command office, Subcomandance office, Nursing, training room, of command, sanitary, controlled chemical warehouse stores equipment, altar, rescue boat, tool shop, hose drying area, sports field, saves fire team, low, down tubes, down tube, down tubes, down tube, pipeline installations, n.p.t., waiting room, n.p.t.
