Chicago Industrial Bolt Action 4 Inch Air Cannon Assembly

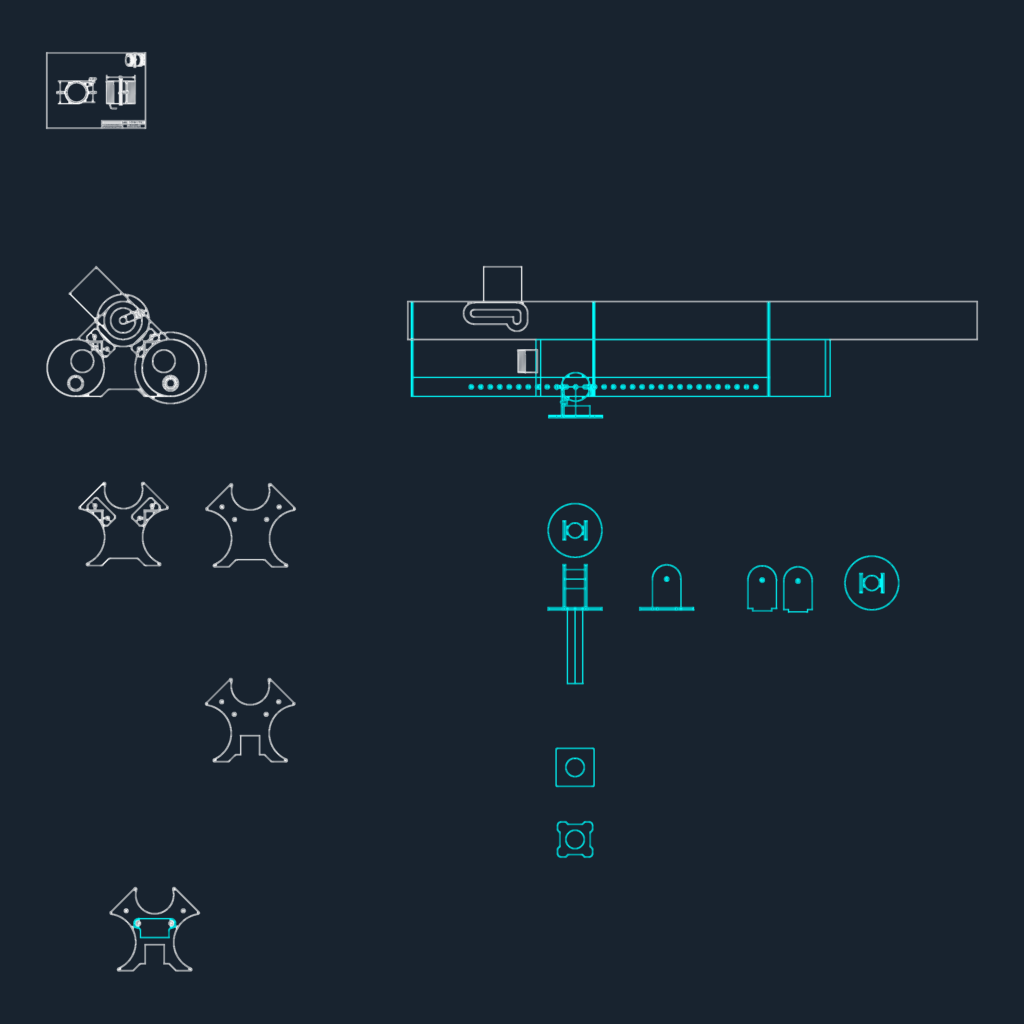

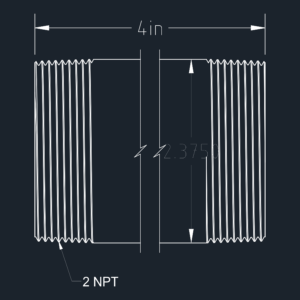

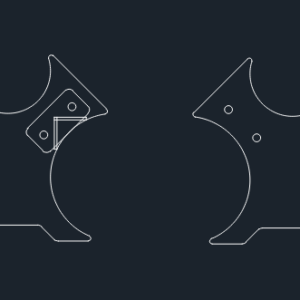

bolt action air cannon assembly I worked on. incl. the 4 inch main barrel, 2 inch NPT fittings & the custom brackets for the mounting plates. uses standard McMaster-Carr parts like the 44665K287 nipple etc. Ensamble de cañón de aire de 4 pulgadas con acción de cerrojo y piezas McMaster-Carr.

PREMIUM

File Details

File Type
DWG
Type
Detail
Language
English
Materials
Aluminum, Steel
Units
Imperial
Uploaded by
DWG Master
Category
Engineering & Technical, Mechanical, Electrical & Plumbing (MEP)
Published
Jun 5, 2026
Price $5.81
or

or get unlimited access from $7/mo

Browse All Downloads
