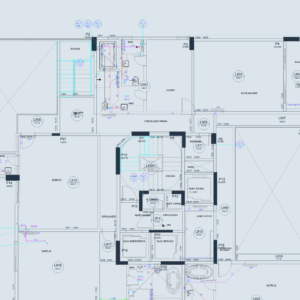

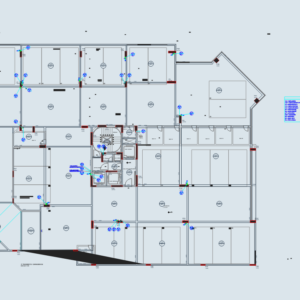

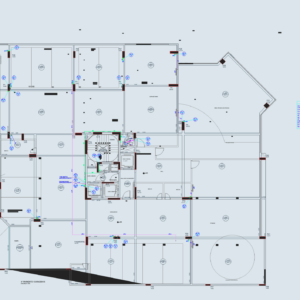

Hydraulic execution plans for a 15-story residential tower, incl. cold & hot water, sewage, and fire protection networks. Set covers everything from the garage levels to the rooftop, with layouts for the pool, grease traps, & cisterns. We’ve also got 1:25 bathroom details for all suites, the kitchen, and laundry areas. Projeto hidro sanitário completo: água fria, água quente, esgoto, rede pluvial e combate a incêndio. Inclui detalhes de isométricos, lixeira e reservatórios.
Multi-Story Residential Building Hydraulic and Plumbing Execution Plans
