Working drawings for a four-story commercial building with a basement and rooftop level. Each floor covers 1,704 sq. ft, featuring open showroom layouts, a central lift core, and multi-stall toilets. The basement provides dedicated parking and utility areas with ramp access.

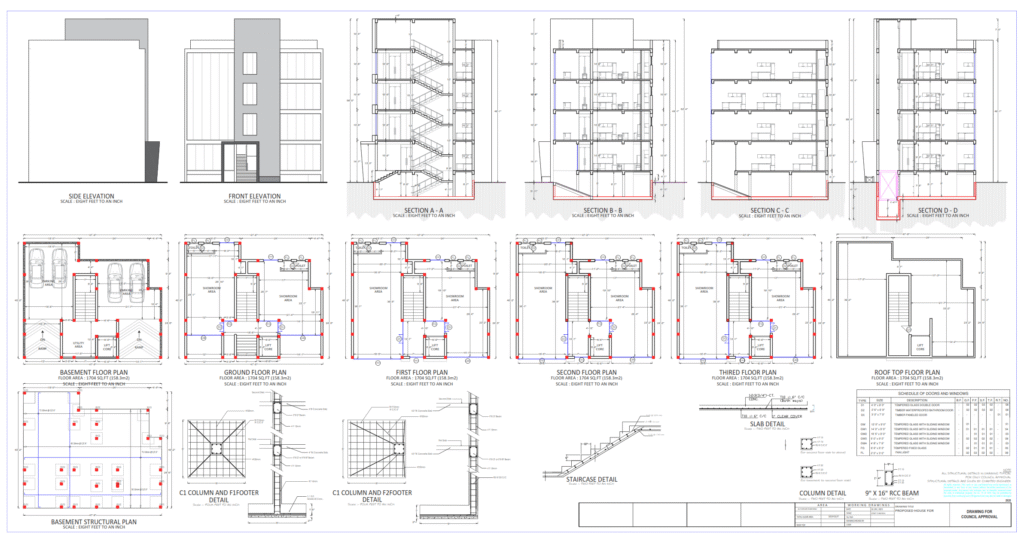

This drawing set contains front and side elevations, four cross-sections, and technical structural details for RCC beams (9″ x 16″), columns, footings, and slabs. It includes a complete basement structural plan and a door and window schedule specifying tempered glass and timber units. Scaled at 1/8″ and 1/4″ per inch for technical council approval documentation.
