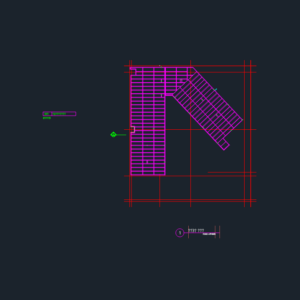

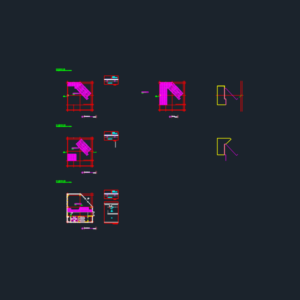

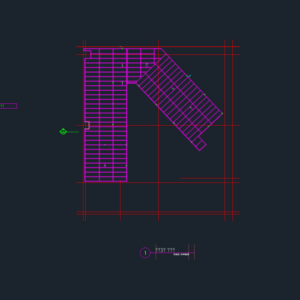

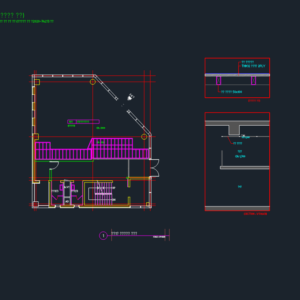

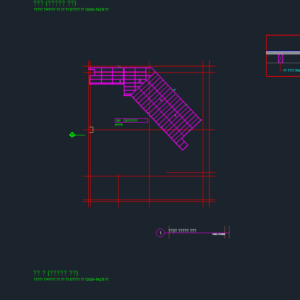

Technical drawings for a commercial mezzanine installation within a neighborhood living facility. The file includes a 1:100 scale floor plan showing the mezzanine layout and a dedicated structural framing plan using 50×100 square pipes. Detailed sections illustrate the construction of horizontal partitions and ceilings, specifying 12mm thick 2-ply board materials.
These drawings provide the layout and assembly details for retail, clinic, or restaurant renovations requiring mezzanine additions. The documentation covers framing grids, partition sections, and floor plan context for multi-story commercial interiors. 근린생활시설 복층 구조도 및 상세도.
