Construction Detail DWG Detail for AutoCAD

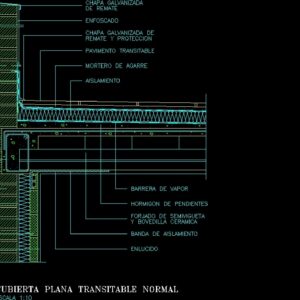

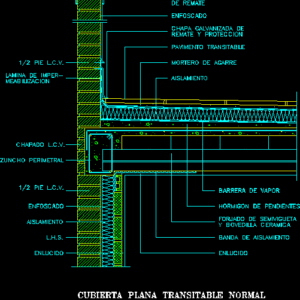

Detail cutting face of a common wall – wall with tile meeting ..

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

galvanized sheet, auction, foot l.c.v., perimeter belt, normal transitable flat roof, scale, forged half-jointed, Ceramic vault, plaster, insulation band, concrete of earrings, isolation, passable pavement, protection top, galvanized sheet metal, isolation, plastered, l.h.s., plaster, foot l.c.v., sheet of, meabilization, plastered, plating l.c.v., gripping mortar, vapor barrier
