Contention Wall DWG Detail for AutoCAD

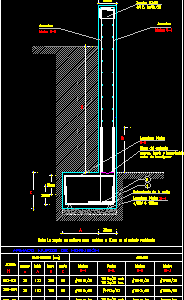

Details armors of contention wall in armed concrete

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Note: the shoe is buried with minimum in the resistant stratum., The dimensions of the painting are in cm, Hor., Vert., Hor., Vert., singing, heel, thick, dimensions, height, Reinforced concrete walls, base, armed, Detail retaining wall exempt, Heel with earth, armor, band, Before concrete, Clean moistened, Cutter key, Basic armor, Mesh shoe, armor, Tipus, Basic armor

Raw text data extracted from CAD file:

\A1;H \A1;Lb \A1;A \A1;30cm \A1;C \A1;30cm \A1;30cm \A1;30cm Nota: La zapata se entierra com mínimo a 60cm en el estrato resistente. las dimensiones del cuadro estan en cm 1d12c/20 hor. 1d16c/20 vert. 1d10c/20 vert. 1d12c/20 hor. 1d12c/20 hor. 1d10c/20 vert. canto talón grueso DIMENSIONES ALTURA ARMADO MUROS DE HORMIGÓN #1d12c/20 S-2 b%%224sica (cm) 180 60 B base C 200 60 30 300-251 30 350-301 e H A 150 170 #1d10c/20 S-1 b%%224sica #1d10c/20 110 60 150 60 30 30 150-0 250-151 80 120 #1d10c/20 #1d10c/20 ARMADO #1d10c/20 #1d10c/20 S-3 b%%224sica #1d16c/20 #1d16c/20 S-4 b%%224sica #1d10c/20 #1d10c/20 #1d16c/20 #1d16c/20 DETALLE MURO DE CONTENCIÓN EXENTO Lb TALÓN CON TIERRAS 5 Armadura b%%224sica S-2 5 5 C 5 5 H Zuncho 30×30 antes de hormigonar rugosa, limpia y humedecida Clave del cortante Armadura básica Calzamiento de la malla 4d12, 1ed8c/20 Armadura b%%224sica S-1 E 1:20 TIPUS B Armadura bàsica S-3 3 1 c/50d ó 100cm S-4
