Contention Wall DWG Section for AutoCAD

Contention Wall DWG Section for AutoCAD

Section with technical specifications

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

bowling cm, cleaning concrete, hearth of cm thickness, me cm, dimension, polyester mm more, geotextile layer, dimension, pvc sheet with reinforcement, dimension, detail retaining wall, esc, enclosure.

Raw text data extracted from CAD file:

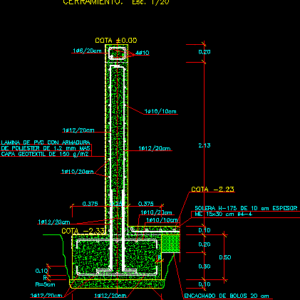

ENCACHADO DE BOLOS 20 cm HORMIGON DE LIMPIEZA H-125 SOLERA H-175 DE 10 cm ESPESOR ME 15x30 cm d4-4 COTA -2.23 DE POLIESTER DE 1.2 mm MAS 1d12/20cm CAPA GEOTEXTIL DE 150 g/m2 1d12/20cm 1d12/20cm R=5cm R 0.10 1d12/20cm 1.00 0.375 1d10/20cm 0.375 0.25 COTA -2.33 1d10/20cm 1d10/10cm R 0.50 0.10 0.20 0.30 0.10 LAMINA DE PVC CON ARMADURA 4d10 1d12/20cm 1d6/20cm COTA 0.00 - + 1d10/10cm 2.13 0.20 DETALLE MURO CONTENCION Esc. 1/20 CERRAMIENTO.

Language	Spanish
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	autocad, béton armé, concrete, contention, DWG, formwork, reinforced concrete, schalung, section, specifications, stahlbeton, technical, wall
