Detached House And Elevations DWG Section for AutoCAD

Detached House And Elevations DWG Section for AutoCAD

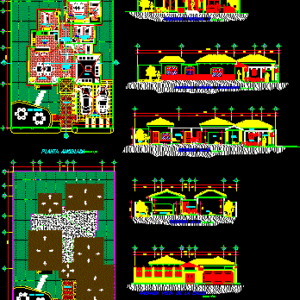

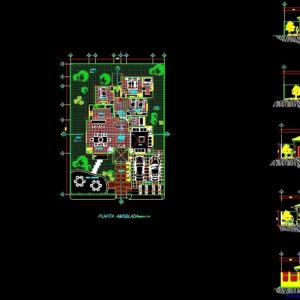

Rest Housing with furnished plant – Floor – Roof floor – Sections – Elevations

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

bounded plant, north, style, graphics, content of the multiline, carlos a. marroquin mijangos, colony :, address :, map of :, municipality :, department :, ing. jose rafael porras sandoval, antonio esteban mejia valencia, december, planner :, arq. jorge mario contreras ramirez, vo. bo., calculation :, scale :, date :, drawing :, sheet no., of :, model house, cadi sa, microcomputation, sa, project :, build :, company :, dimensions, manager :, san jose, guatemala ., pensi toledo chair, jorge pensi toledo chair, knoll, gigi swivel arm chair, frame maran gigi arm chair with swivel base, level, carlos david soda., indicated on the map., arq. daniel hernandez., university mariano galvez., umg, february, furnished floor, dining room, living room, carport, living outside, entrance, kitchen, bedroom, ss, daughter, vestibule, primary, secondary, children, master, garden, facade lateral left, entrance, main, pergola, coscina, floor ceilings, facade view of the street, pantry

Raw text data extracted from CAD file:

A 1 1 A 50 PLANTA ACOTADA ESCALA: 1: NORTE S S S S SILLAR Y VENTANA NORMAL 0.19 MTS. SILLAR Y VENTANA NORMAL 0.19 MTS. SILLAR Y VENTANA NORMAL 0.14 MTS. SILLAR Y VENTANA NORMAL 0.15 MTS. W14 WALL20 W20 W20H W19H W19 WALL19 W14H MURO DE 0.19 MTS. SILLAR Y VENTANA ALTO 0.19 MTS. MURO DE 0.19 MTS. SILLAR Y VENTANA ALTO 0.19 MTS. SILLAR Y VENTANA ALTO 0.14 MTS. WALL14 W15H W15 WALL15 STYLE GRAFICA 2 3 4 MURO DE 0.14 MTS. DRENAJE PVC DE d 2" DRENAJE PVC DE d 3" DRENAJE PVC DE d 4" CONTENIDO DE LA MULTILINEA MURO DE 0.15 MTS. SILLAR Y VENTANA ALTO 0.15 MTS. CARLOS A. MARROQUIN MIJANGOS COLONIA: DIRECCION: PLANO DE: MUNICIPIO: DEPARTAMENTO: ING. JOSE RAFAEL PORRAS SANDOVAL ANTONIO ESTEBAN MEJIA VALENCIA DICIEMBRE PLANIFICADOR: ARQ. JORGE MARIO CONTRERAS RAMIREZ Vo. Bo. CALCULO: ESCALA: FECHA: DIBUJO: 1:75 21 HOJA No. 1999 DE: Vo. Bo. 4 4 CASA MODELO CADI S.A. MICROCOMPUTACION,S.A. PROYECTO: CONSTRUYE: EMPRESA: COTAS 40. AVENIDA 10-55 ZONA 7 GERENTE: SAN JOSE GUATEMALA. GUATEMALA. s Pensi Toledo Chair Jorge Pensi Toledo Chair Knoll 29C 1.00 Ea 1.00 Ea 12520 E2022 72.3 G4 ##### Gigi Swivel Arm Chair Marco Maran Gigi Arm Chair with Swivel Base Knoll 87AS 1.00 Ea 1.00 Ea 12520 E2022 72.3 G4 ##### Pensi Toledo Chair Jorge Pensi Toledo Chair Knoll 29C 1.00 Ea 1.00 Ea 12520 E2022 72.3 G4 ##### NIVEL \A1;17.85 \A1;24.85 \A1;3.54 \A1;1.19 \A1;3.55 \A1;1.32 \A1;1.05 \A1;5.04 \A1;2.16 \A1;17.85 \A1;2.48 \A1;1.76 \A1;3.55 \A1;2.90 \A1;6.38 \A1;7.78 \A1;24.85 \A1;2.10 \A1;2.10 \A1;2.10 \A1;2.10 \A1;2.74 \A1;0.20 \A1;0.10 \A1;0.15 \A1;2.10 \A1;0.20 \A1;0.40 \A1;2.48 \A1;1.76 \A1;3.55 \A1;2.90 \A1;6.38 \A1;7.78 \A1;24.85 \A1;2.18 \A1;2.74 \A1;2.10 \A1;2.10 \A1;2.18 \A1;2.10 \A1;0.20 \A1;0.41 \A1;0.30 \A1;0.30 \A1;0.20 \A1;0.10 \A1;0.20 \A1;3.54 \A1;1.19 \A1;3.55 \A1;1.32 \A1;1.05 \A1;5.04 \A1;2.16 \A1;17.85 \A1;3.54 \A1;1.19 \A1;3.55 \A1;1.32 \A1;1.05 \A1;5.04 \A1;2.16 \A1;17.85 CARLOS DAVID SOSA. CARLOS DAVID SOSA. INDICADA EN EL PLANO. 22 PLANIFICADOR: ARQ. DANIEL HERNANDEZ. CONSTRUYE: ESCALA: Vo. Bo. FECHA: DIBUJO: CALCULO: UNIVERSIDAD MARIANO GALVEZ. PROYECTO: U.M.G FEBRERO 2010 1 HOJA No. DE: CASA MODELO 1 \A1;17.85 \A1;24.85 PLANTA AMOBLADA COMEDOR SALA CAR-PORT ESTAR EXTERIOR INGRESO COCINA DORMITORIO S.S DORMITORIO HIJA VESTIBULO VESTIBULO PRIMARIO SECUNDARIO HIJOS DORMITORIO MASTER S.S JARDIN JARDIN JARDIN 0.15 +0.30 0.00 +0.30 +0.30 0.00 0.00 0.00 0.00 A B C D F G H I 1 2 3 4 5 6 7 5 5 A B C D F G H I 5 5 5 5 5 5 5 5 FACHADA FRONTAL 2 B A A 7 6 5 4 3 2 1 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 7 6 5 4 3 2 1 5 5 5 5 5 5 5 FACHADA LATERAL IZQUIERDA ENTRADA PRINCIPAL SALA VESTIBULO SECUNDARIO JARDIN CAR-PORT PERGOLA PERGOLA JARDIN SALA VESTIBULO COSCINA 5 2.74 5 5 5 5 5 5 5 5 5 5 5 A B C D F G H I 5 5 5 5 5 5 5 5 SECCION B-B` SECCION A-A` A B C D F G H I 5 5 5 5 5 5 5 5 PLANTA TECHOS ESCALA: 1/75 ESTAR EXTERIOR INGRESO JARDIN 0.00 B A B C D F G H I 1 2 3 4 5 6 7 5 5 FACHADA VISTA DE LA CALLE ESCALA: 1/75 DESPENSA ESCALA: 1/50 ESCALA: 1/50 ESCALA: 1/50 ESCALA: 1/50 ESCALA: 1/50

Language	Spanish
Drawing Type	Section
Category	House
Additional Screenshots
File Type	dwg
Materials	Other
Measurement Units	Metric
Footprint Area
Building Features	Garden / Park
Tags	apartamento, apartment, appartement, aufenthalt, autocad, casa, chalet, detached, dwelling unit, DWG, elevations, floor, furnished, haus, house, Housing, logement, maison, plant, residên, residence, rest, roof, section, sections, unidade de moradia, villa, wohnung, wohnung einheit
