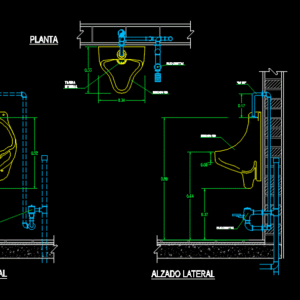

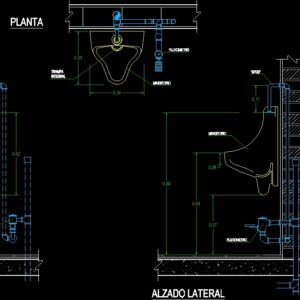

Detail Mingitorio DWG Detail for AutoCAD

Detail Mingitorio DWG Detail for AutoCAD

Detail Connection type urinals; plumbing installations

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Room, Flowmeter, Full trap, Urinal, side, Urinal, Flowmeter, Flowmeter, Urinal, frontal, Spec notes, Urinal, Characteristics: location as indicated by the project. Wall color tintory with integral upper feed trap with manufactured according to the official Mexican standard brand type as specified in the project. Apparent pedal flowmeter of the accessories must comply with the official standards of manufacture. Materials: hydraulic feed without recordable duct. Cap copper tube copper pipe copper elbow copper copper elbow copper copper inner pipe of copper coupling internal thread of coupling connection reducer copper copper pipe type of tube of combre type of drain with ventilation . Copper copper coupling copper coupling outer coupling copper reducer copper tube type mm.

Raw text data extracted from CAD file:

000 ROOM ROOM 000 \A1;0.89 \A1;0.08 \A1;0.52 \A1;0.17 \A1;0.64 \A1;0.37 \A1;0.17 FLUXOMETRO \A1;0.34 TRAMPA INTEGRAL \A1;0.33 MINGITORIO \LPLANTA \LALZADO LATERAL 5 5 5 5 5 "SPUD" MINGITORIO FLUXOMETRO 5 5 FLUXOMETRO MINGITORIO "SPUD" \LALZADO FRONTAL NOTAS DE ESPECIFICACIONES MINGITORIO (FLUXOMETRO) \W6.87285; CARACTERÍSTICAS: 1.- LOCALIZACIÓN SEGUN INDIQUE EL PROYECTO. 2.- TMINGITORIO DE PRIMERA, COLOR BLANCO, DE PARED CON TRAMPA INTEGRAL Y ALIMENTACIÓN SUPERIOR CON "SPUD" DE 19mm. FABRICADO DE ACUERDO A LA NORMA OFICIAL MEXICANA NOM-C-328/1-1986. 3.- ACCESORIOS, MARCA Y TIPO SEGUN ESPECIFIQUE EL PROYECTO. \W6.87285; a) FLUXOMETRO APARENTE DE PEDAL DE 19mm. LOS ACCESORIOS DEBERAN SUJETARSE A LAS NORMAS OFICIALES DE FABRICACION. \W6.87285; MATERIALES: \W6.87285; - ALIMENTACION HIDRAULICA SIN DUCTO REGISTRABLE. \W6.87285; b) TAPON CAPA PARA TUBO DE COBRE DE 25mm. \W6.87285; c) "TEE" DE COBRE DE 25mm. \W6.87285; d) CODO DE COBRE A COBRE DE 90° x 25mm. \W6.87285; e) CODO DE COBRE A COBRE DE 90° x 19mm. \W6.87285; f) CODO DE COBRE A ROSCA INTERIOR DE 90° x 32mm. \W6.87285; g) COPLE DE COBRE A ROSCA INTERIOR DE 25mm. \W6.87285; h) COPLE REDUCTOR DE CONEXIÓN A COBRE 32 x 19mm. \W6.87285; i) TUBO DE COBRE TIPO "M" DE 19mm. \W6.87285; j) TUBO DE COMBRE TIPO "M" DE 25mm. \W6.87285; - DESAGÜE CON VENTILACIÓN. \W6.87285; k) "TEE" DE COBRE A COBRE DE 50mm. \W6.87285; l) COPLE DE COBRE A ROSCA EXTERIOR DE 50mm. \W6.87285; m) COPLE REDUCTOR DE CONEXION A COBRE 50 x 38mm. \W6.87285; n) TUBO DE COBRE TIPO "M" DE 50 mm.

Language	Spanish
Drawing Type	Detail
Category	Bathroom, Plumbing & Pipe Fittings
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	autocad, connection, DETAIL, DWG, installations, mictório, pissoir, plumbing, type, urinal, urinals, urinoir
