Details Pergola DWG Detail for AutoCAD

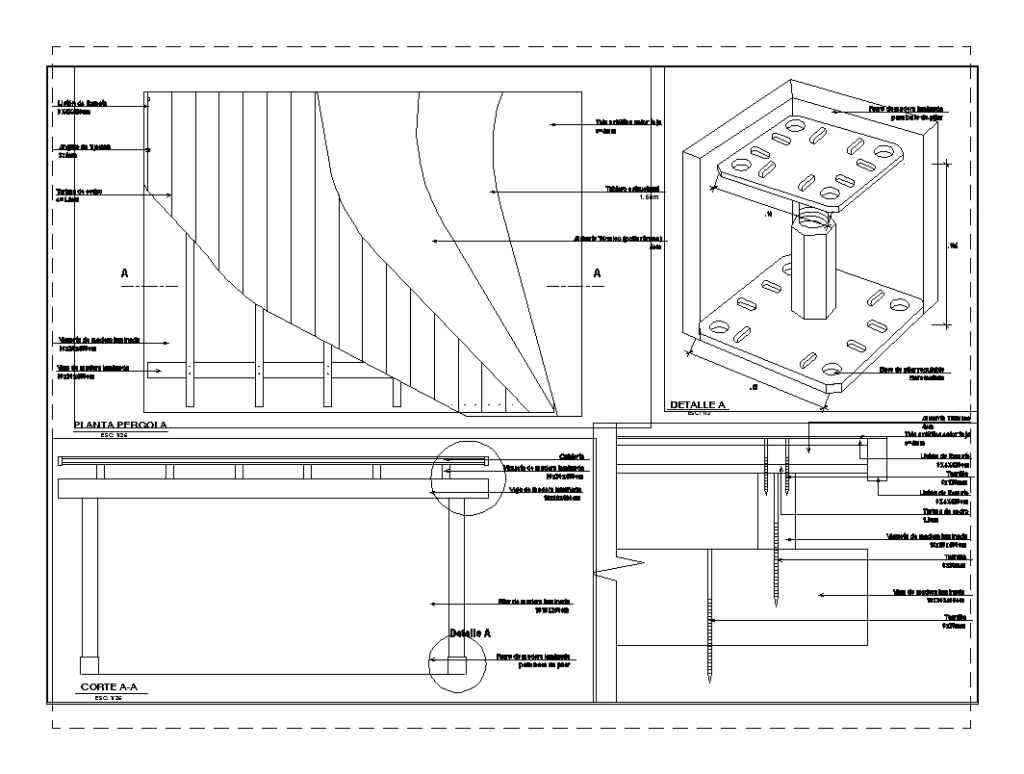

Details step, of laminated wood pergola, installation, embedment, materials, details of metal parts.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

auction strip, angle canets, screw, laminated timber joist, thermal insulation, board, cedar floor, laminated pillar, laminated timber joist, wood deck, detail, cut, esc:, detail, esc:, galvanized steel stirrup, detail, esc:, laminated timber beam, laminated plywood base for pillar base, screw, asphalt canvas color tile, screw, detail, esc:, profile in mm mm for securing minor profile guides, laminated plywood base for pillar base, bicromat adjustable abutment base, laminated pillar, laminated plywood base for pillar base, laminated timber beam, detail, esc:, cut, esc:, pergola plant, esc:, laminated timber joist, cover, laminated timber beam, laminated timber joist, cedar floor, screw, thermal insulation, screw, auction strip, asphalt canvas color tile, auction strip, laminated timber joist, laminated timber beam, fixing angle, cedar floor, asphalt canvas color tile, auction strip, board, thermal insulation

Raw text data extracted from CAD file:

Listón de Remate 9X4X420cm Canets ángulo 45° Tornillo 8x28mm Vigueta de madera laminada 8x16x360cm Aislante Térmico (poliestireno) 4cm Tablero estructural\W1; 1.5cm Tarima de cedro e=1.9cm Pilar de madera laminada 1616x250cm Pilar de madera laminada 1616x250cm Vigueta de madera laminada 8x16x360cm Cubierta de madera Detalle C CORTE B-B ESC: 1/25 DETALLE C ESC: 1/5 Estribo de acero galvanizado Detalle D DETALLE D ESC: 1/1 5 5 5 Viga de madera laminada 16x20x400cm Viga de madera laminada 16x20x400cm Forro de madera laminada para base de pilar Tornillo 4x45mm Tela asfáltica color teja e=4mm Tornillo 6x120mm DETALLE E ESC: 1/1 Perfil en L 40 mm x 55 mm para sujetar guias y perfil menor \A1;.135 \A1;.12 \A1;.10 \A1;.08 \A1;.08 \A1;.03 A A A A A A A A Forro de madera laminada para base de pilar Base de pilar regulable Bicromatada Pilar de madera laminada 1616x250cm Forro de madera laminada para base de pilar Viga de madera laminada 16x20x400cm Detalle A DETALLE A ESC: 1/2 CORTE A-A ESC: 1/25 PLANTA PERGOLA ESC: 1/25 5 5 5 Vigueta de madera laminada 16x20x400cm Cubierta Viga de madera laminada 16x20x400cm Vigueta de madera laminada 16x20x400cm Tarima de cedro 1.9cm Tornillo 8x28mm Tornillo 8x28mm Aislante Térmico 4cm Tornillo 6x120mm Listón de Remate 9X4X420cm Tela asfáltica color teja e=4mm Listón de Remate 9X4X420cm Vigueta de madera laminada 16x20x400cm Viga de madera laminada 16x20x400cm Angulo de fijación 3x5cm Tarima de cedro e=1.9cm Tela asfáltica color teja e=4mm Listón de Remate 9X4X420cm Tablero estructural\W1; 1.5cm Aislante Térmico (poliestireno) 4cm
