Details Transformer Pedestal DWG Detail for AutoCAD

Details Transformer Pedestal DWG Detail for AutoCAD

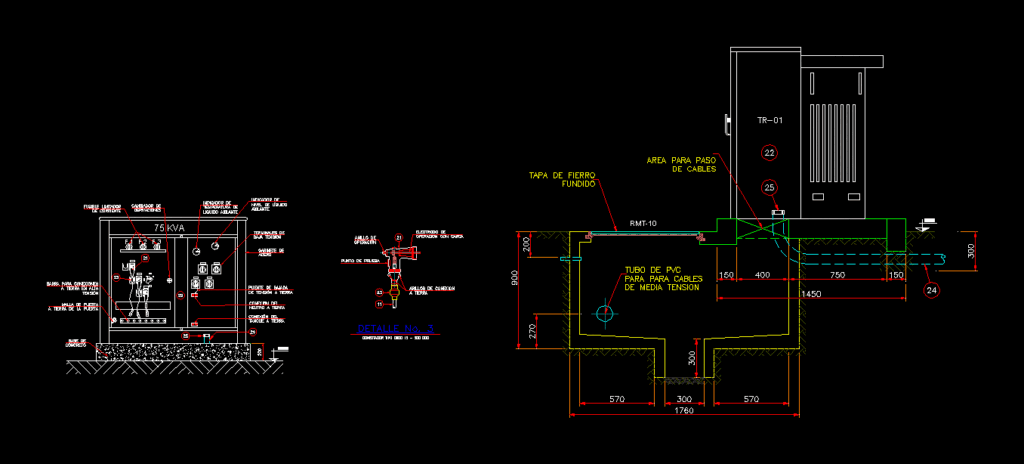

Detail of a pedestal type transformer 75KVA Three Phase with detail Boveda .

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

N.t.n., Kva, concrete base, Fuse current limiter, Shunt changer, Low voltage terminals, Insulation liquid temperature indicator, Insulating liquid level indicator, Bar for high voltage earth connections, Earth neutral connection, Voltage drop bridge ground, Steel cabinet, Detail no., Elbow type connector occ, Operating ring, Operating electrode with load, Ground connection rings, Test point, Ground tank connection, Grounding mesh of the door, N.t.n., Cast iron cover, Area for cable passage, Pvc pipe for medium voltage cables

Raw text data extracted from CAD file:

200 300 570 1760 900 570 300 200 300 270 150 400 750 150 1450 F 1 F 2 F 3 21 23 200 N.T.N. 22 75 KVA BASE DE CONCRETO FUSIBLE LIMITADOR DE CORRIENTE CAMBIADOR DE DERIVACIONES TERMINALES DE BAJA TENSION INDICADOR DE TEMPERATURA DE LÍQUIDO AISLANTE INDICADOR DE NIVEL DE LÍQUIDO AISLANTE BARRA PARA CONEXIONES A TIERRA EN ALTA TENSIÓN CONEXIÓN DEL NEUTRO A TIERRA PUENTE DE BAJADA DE TENSIÓN A TIERRA GABINETE DE ACERO 25 24 21 DETALLE No. 3 CONECTADOR TIPO CODO 15 - 200 OCC ANILLO DE OPERACION ELECTRODO DE OPERACION CON CARGA ARILLOS DE CONEXION A TIERRA PUNTO DE PRUEBA 23 11 CONEXIÓN DEL TANQUE A TIERRA MALLA DE PUESTA A TIERRA DE LA PUERTA 5 5 5 5 5 5 5 5 5 5 5 5 5 5 N.T.N. TAPA DE FIERRO FUNDIDO AREA PARA PASO DE CABLES TUBO DE PVC PARA PARA CABLES DE MEDIA TENSION RMT-10 22 25 24 TR-01

Language	Spanish
Drawing Type	Detail
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	autocad, DETAIL, details, DWG, einrichtungen, facilities, gas, gesundheit, installation, kva, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, pedestal, phase, provision, transformer, type, vault, wasser bestimmung, water
