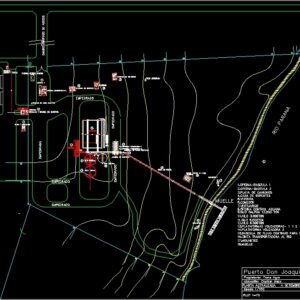

Site layout for Puerto Don Joaquín, a river port facility for grain handling on the Paraná River. The file contains a 1/750 scale general site plan showing truck parking zones, paved access roads (empedrado), and the river dock (muelle).
Architectural floor plans at 1/100 scale cover the administrative offices, control booths, a manager’s residence, staff housing, and a dining hall for drivers. Technical layouts detail the grain terminal operations, including tubular and barn silos, dump platforms, loading conveyor belts, and truck scales (básculas).
