Electrical Wiring Schematic, Office DWG Block for AutoCAD

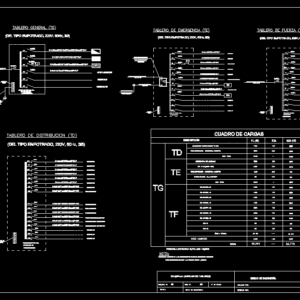

Line diagram of an office.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

date of realization:, scheme, scale:, sheet, of leaves:, drew by:, reviewed by:, engineering drawing, flatboard diagram, warning light, reservation, power of ruptuta:, unless indicated, of poles:, earth well, of protection, ohms, cu., for electrical connection, bar of, Earth, kind, power of ruptuta:, of poles:, kind, bar of, Earth, lighting, lighting, banking hours, lighting, general board, transparent switch, Manuel built by two, an interlock, more switch, go to tg, outlet for connection, of the electrogen group, Mobile, emergency lighting, tsi, tca, alarm center, reservation, power of ruptuta:, of poles:, kind, bar of, Earth, reservation, go to tg, load box, description, pi., f.d., m.d., lighting, power outlets, Subtotal, lighting, ups kva, power outlets, unid. from, Subtotal, icg, Subtotal, warning light, total, power to hire:, note:, up to the maximum of the voltage of hz, request edelnor s.a.a. increasing the load on existing supply, emergency board, power board, unless indicated, power of ruptuta:, of poles:, kind, bar of, Earth, lighting, lighting, lighting, lighting, lighting, lighting, lighting, outlet, outlet, outlet, outlet, power outlet, power outlet, reservation, power outlet, Switchboard, unless indicated

Raw text data extracted from CAD file:

FECHA DE REALIZACIÓN: ESQUEMA N°: ESCALA: HOJA N°: N° DE HOJAS: DIBUJADO POR: REVISADO POR: DIBUJO DE INGENIERÍA DIAGRAMA UNIFILAR DE TABLEROS 02 01 Wh F-1 3-1x120mm2T+1×25/Tmm2TW-80mmdPVC-P 3-1x16mm2THW+1×10/Tmm2TW-35mmdPVC-P 3-1×10+1x10Tmm2TW-25mmdPVC-P 3-1x50mm2THW+1×16/Tmm2TW-50mmdPVC-P 3-1×4+1×4/Tmm2TW-20mmdPVC-P AVISO LUMINOSO RESERVA 3 RESERVA 1d G-1 G-2 G-3 G-4 G-5 G-6 3x40A 3x50A 3x150A 25kA 3x20A PODER DE RUPTUTA: 10kA SALVO INDICACION N° DE POLOS: 24 POZO DE TIERRA DE PROTECCION R> 25 OHMS 1×35/Tmm2 Cu. DESN- 35mmoPVC-P 100mmdPVC-P S/A PARA ACOMETIDA ELECTRICA BARRA DE TIERRA (DEL TIPO EMPOTRADO, 220V, 60Hz, 3d) 2-1x4mm2TW-20mmdPVC-P E-1 2×20 A PODER DE RUPTUTA: 10kA N° DE POLOS: 30 (DEL TIPO EMPOTRADO, 220V, 60Hz, 3d) BARRA DE TIERRA E-2 E-3 E-4 E-5 E-6 E-7 E-8 E-9 E-10 E-11 E-12 2×20 A 2×20 A 2×20 A 2×20 A 2×20 A 2×20 A 2×20 A ALUMBRADO 2-1x4mm2TW-20mmdPVC-P ALUMBRADO 2-1x4mm2TW-20mmdPVC-P BANCA 24 HORAS 2-1x4mm2TW-20mmdPVC-P 2-1x4mm2TW-20mmdPVC-P 2-1x4mm2TW-20mmdPVC-P ALUMBRADO ALUMBRADO 3x250A 35kA TABLERO GENERAL (TG) 3×40 A INTERRUPTOR DE TRANPARENCIA 3-1x10mm2THW+1×10/Tmm2TW 25mmdPVC-P MANUEL CONSTRUIDO POR DOS UN INTERLOCK INTERRUPTOR DE 3x40A MAS 3-1x10mm2THW+1×10/Tmm2TW-25mmdPVC-P G-2 VA AL TG SALIDA PARA CONEXIONADO DEL GRUPO ELECTROGENO MOVIL DE 9kW,3d,220V T 2-1x4mm2TW-20mmdPVC-P 2-1×4+1x4mm2TW-20mmdPVC-P 2-1×4+1x4mm2TW-20mmdPVC-P ALUMBRADO DE EMERGENCIA TSI TCA CENTRO DE ALARMAS RESERVA 1d RESERVA 1d RESERVA 1d 3-1x4mm2TW+1×4/Tmm2TW-20mmdPVC-P F-1 3×20 A PODER DE RUPTUTA: 10kA N° DE POLOS: 36 (DEL TIPO EMPOTRADO, 220V, 60Hz, 3d) BARRA DE TIERRA F-2 F-3 F-4 F-5 F-6 F-7 F-8 F-9 F-10 F-11 F-12 3×20 A 3×20 A 3×20 A 3×30 A 3×30 A 3×20 A 3×20 A UC-01+UMA-01 UC-02+UMA-02 UC-03+UMA-03 UC-05+UMA-05 UC-04+UMA-04 22kV RESERVA 3d RESERVA 1d RESERVA 1d 3-1x50mm2THW+1×16/Tmm2TW-50mmdPVC-P G-3 VA AL TG TG TE TD TF CUADRO DE CARGAS DESCRIPCIÓN P.I. (W) F.D. M.D. (W) ALUMBRADO : 301 m2 x 25W/m2 = 7 525w TOMACORRIENTES : 46 PUNTOS x 153W/PTO SUB – TOTAL ALUMBRADO : 157 m2x25w/m2 UPS : 6 kVA (cos d = 0.80) TOMACORRIENTES : 10 PUNTOS x 153W/PTO BOMBA DE AGUA : 2 unid. DE 1/2HP SUB – TOTAL UC – 01+UMA – 01 UC – 02+UMA – 02 UC – 03+UMA – 03 UC – 04+UMA – 04 UC – 05+UMA – 05 UC – 06+UMA – 06 UC – 07+UMA – 07 ICG – 01 ICG – 02 SUB – TOTAL 7,525 1.00 7,525 7,038 0,50 3,519 14,563 — 11,044 7,525 1.00 7,525 3x150A 2×20 A 3-1x4mm2TW+1×4/Tmm2TW-20mmdPVC-P 3-1x4mm2TW+1×4/Tmm2TW-20mmdPVC-P 3-1x4mm2TW+1×4/Tmm2TW-20mmdPVC-P 3-1x4mm2TW+1×4/Tmm2TW-20mmdPVC-P 3-1x4mm2TW+1×4/Tmm2TW-20mmdPVC-P 2-1x4mm2TW+1×4/Tmm2TW-20mmdPVC-P 2-1x4mm2TW+1×4/Tmm2TW-20mmdPVC-P 2-1x4mm2TW+1×4/Tmm2TW-20mmdPVC-P 4,800 0.80 3.840 1.530 0.50 765 746 0.50 373 11,001 – – – 8,903 4 373 1.00 4 373 4 373 1.00 4 373 4 373 1.00 4 373 4 373 1.00 4 373 5 373 1.00 5 373 5 373 1.00 5 373 1 420 1.00 1 420 800 1.00 800 373 1.00 373 30 831 — 30 831 AVISO LUMINOSO TOTAL 3,000 1.00 3,000 59,395 — 53,778 POTENCIA A CONTRATAR: 53,778 x 0.80 = 43,022W NOTA: HASTA POR MÁXIMO DE 43kW. A LA TENSIÓN DE 220V. , 3d,60 Hz – SOLICITAR A EDELNOR S.A.A. EL INCREMENTO DE CARGA AL SUMINISTRO EXISTENTE TABLERO DE EMERGENCIA (TE) TABLERO DE FUERZA (TF) SALVO INDICACION UC-06+UMA-06 UC-07+UMA-07 ICG-01 IE-01 D-1 PODER DE RUPTUTA: 10kA N° DE POLOS: 36 (DEL TIPO EMPOTRADO, 220V, 60Hz, 3d) BARRA DE TIERRA D-2 D-3 D-4 2×20 A ALUMBRADO 2-1x4mm2TW-20mmdPVC-P ALUMBRADO 2-1x4mm2TW-20mmdPVC-P ALUMBRADO 2-1x4mm2TW-20mmdPVC-P ALUMBRADO 2-1x4mm2TW-20mmdPVC-P ALUMBRADO 2-1x4mm2TW-20mmdPVC-P ALUMBRADO 2-1x4mm2TW-20mmdPVC-P ALUMBRADO 2-1×4+1×4/Tmm2TW-20mmdPVC-P TOMACORRIENTE 2-1×4+1×4/Tmm2TW-20mmdPVC-P TOMACORRIENTE 2-1×4+1×4/Tmm2TW-20mmdPVC-P TOMACORRIENTE 2-1×4+1×4/Tmm2TW-20mmdPVC-P TOMACORRIENTE 2-1×4+1×4/Tmm2TW-20mmdPVC-P 2-1×4+1×4/Tmm2TW-20mmdPVC-P TOMACORRIENTE DE COMPUTO 2-1×4+1×4/Tmm2TW-20mmdPVC-P TOMACORRIENTE DE COMPUTO 2-1×4+1×4/Tmm2TW-20mmdPVC-P RESERVA 1d RESERVA 1d RESERVA 1d 2×20 A 2×20 A 2×20 A 2×20 A 2×20 A 2×20 A 2×20 A 2×20 A 2×20 A 2×20 A 2×20 A 2×20 A 2×20 A 2×20 A 2×20 A 2×20 A D-5 D-6 D-7 D-8 D-11 D-12 D-13 D-16 D-15 D-14 D-19 D-18 D-17 TOMACORRIENTE DE COMPUTO TABLERO DE DISTRIBUCION (TD) SALVO INDICACION
