Fire Sprinkler Hanger Details DWG Detail for AutoCAD

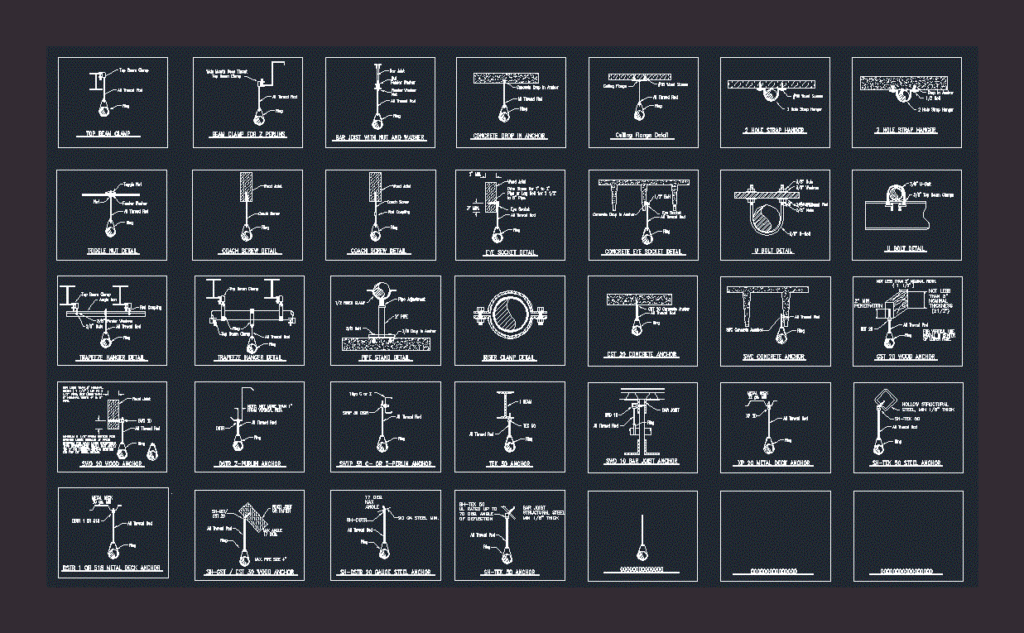

Various individual details of hangers used to support fire sprinkler piping. TOP BEAM CLAMP BEAM CLAMP FOR Z PERLINS BAR JOIST WITH NUT AND WASHER CONCRETE DROP IN ANCHOR CEILING FLANGE DETAIL 2 HOLE STRAP HANGER TOGGLE NUT DETAIL COACH SCREW DETAIL EYE SOCKET DETAIL CONCRETE EYE SOCKET DETAIL U BOLT DETAIL U BOLT DETAIL 2 TRAPEEZE HANGER DETAIL TRAPEEZE HANGER DETAIL 2 PIPE STAND DETAIL RISER CLAMP DETAIL CST 20 CONCRETE ANCHOR SWC CONCRETE ANCHOR GST 20 CONCRETE ANCHOR SWG 20 CONCRETE ANCHOR DSTR Z PURLIN ANCHOR SWXP 35C OR Z PERLIN ANCHOR TEK 50 ANCHOR SWD 10 BAR JOIST ANCHOR XP 20 METAL DECK ANCHOR SH – TEK 50 STEEL ANCHOR DST 1 OR 518 METAL DECK ANCHOR SH – GST/CST 30 WOOD ANCHOR SH – DSTR 20 GAUGE STEEL ANCHOR SH – TEK 50 ANCHOR
| Language | Other |
| Drawing Type | Detail |
| Category | Mechanical, Electrical & Plumbing (MEP) |
| Additional Screenshots | |
| File Type | dwg |
| Materials | |
| Measurement Units | Metric |
| Footprint Area | |
| Building Features | |
| Tags | autocad, beam, DETAIL, details, DWG, einrichtungen, facilities, fire, gas, gesundheit, hanger, individual, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, piping, provision, sprinkler, support, top, wasser bestimmung, water |
