Floor To Roof, Wood DWG Section for AutoCAD

Floor To Roof, Wood DWG Section for AutoCAD

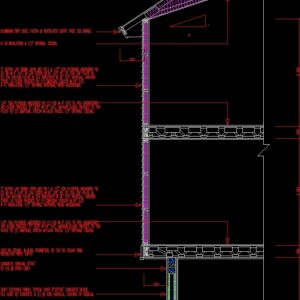

Section detailed construction from floor to roof

Drawing labels, details, and other text information extracted from the CAD file:

metal roofing over tin tabbed over cdx, anchored with to roof, anchor trusses, drip fascia ventilated soffit over barge., dutch lap siding over felt cdx plywood anchored, to studs top plate, plywood anchored to, floor trusses deep anchor floor trusses to top, insulation drywall ceiling., drywall wood baseboard., bottom plate firestops vertical. anchor, to floor trusses, each truss. drywall ceiling., rs cedar bldg. rs cedar trim., rods cont., textured typical over concrete, core concrete rod footing to tiebeam., concrete slab w.w.m. visqueen, clean termite treated fill. smooth trowel finish., finished grade., each truss. drywall ceiling., to floor trusses, bottom plate firestops vertical. anchor, drywall wood baseboard., floor trusses deep anchor floor trusses to top, plywood anchored to, to studs top plate, dutch lap siding over felt cdx plywood anchored, rods cont., drywall over batt insulation pt furring strips, wood baseboard, vinyl soffit

Raw text data extracted from CAD file:

3 170 366 3 292 366 3 292 731\A1\S5^ ; 731\A1\S5^ ; 5 5 5 5 5 5 5 \W0.500000x;5-V METAL ROOFING OVER #30 FELT, TIN TABBED @ 12" O/C OVER 1/2" CDX \W0.500000x;PLYWOOD, ANCHORED WITH (1) 8D @ 4" O/C TO PRE-ENGINEERED ROOF \W0.500000x;TRUSSES @ 24" O/C, ANCHOR TRUSSES W/ (1) SIMPSON, ST6224. \W0.500000x;ALUMINUM DRIP EDGE, FASCIA & VENTILATED SOFFIT OVER 2X6 BARGE. \W0.500000x;5" DUTCH LAP SIDING OVER #15 FELT & 1/2" CDX PLYWOOD ANCHORED W/ \W0.500000x;(1) 8D @ 4" O/C TO 2X4 STUDS @ 16" O/C W/ (2) 2X4 TOP PLATE & \W0.500000x;3/4" T&G PLYWOOD ANCHORED W/ (1) 10D @ 4" O/C TO PRE-ENGINEERED \W0.500000x;4X2 FLOOR TRUSSES 12" DEEP @ 24" O/C, ANCHOR FLOOR TRUSSES TO TOP \W0.500000x;R-30 INSULATION & 1/2" DRYWALL CEILING. \W0.500000x;R-11 INSULATION, 1/2" DRYWALL INTERIOR, WOOD BASEBOARD. \W0.500000x;(1) 2X4 BOTTOM PLATE & 2X4 FIRESTOPS @ 36" O/C VERTICAL. ANCHOR \W0.500000x;STUDS TO FLOOR TRUSSES W/ (1) SIMPSON, ST6224 @ 24" O/C. \W0.500000x;PLATE W/ (1) SIMPSON, ST6224 @ EACH TRUSS. 1/2" DRYWALL CEILING. \W0.500000x;2X12 RS CEDAR @ BLDG. PERIMETER, W/ 2X2 RS CEDAR TRIM. \W0.500000x;CONCRETE TIEBEAM, 8"X16" \W0.500000x;W/ (4) #5 RODS CONT. \W0.500000x;LIGHT TEXTURED FINISH, TYPICAL OVER 8"X8"X16" CONCRETE BLOCK, \W0.500000x;FILL CORE W/ CONCRETE & (1) #5 ROD VERTICAL, FOOTING TO TIEBEAM. \W0.500000x;4" CONCRETE SLAB (MIN. 2500 P.S.I.) W/ 6X6 #10/10 W.W.M. & VISQUEEN \W0.500000x;OVER CLEAN COMPACTED, TERMITE TREATED FILL. SMOOTH TROWEL FINISH. \W0.500000x;CONCRETE FOOTING, 24"X24" \W0.500000x;APPROXIMATE FINISHED GRADE. \W0.500000x;PLATE W/ (1) SIMPSON, ST6224 @ EACH TRUSS. 1/2" DRYWALL CEILING. \W0.500000x;STUDS TO FLOOR TRUSSES W/ (1) SIMPSON, ST6224 @ 24" O/C. \W0.500000x;(1) 2X4 BOTTOM PLATE & 2X4 FIRESTOPS @ 36" O/C VERTICAL. ANCHOR \W0.500000x;R-11 INSULATION, 1/2" DRYWALL INTERIOR, WOOD BASEBOARD. \W0.500000x;4X2 FLOOR TRUSSES 12" DEEP @ 24" O/C, ANCHOR FLOOR TRUSSES TO TOP \W0.500000x;3/4" T&G PLYWOOD ANCHORED W/ (1) 10D @ 4" O/C TO PRE-ENGINEERED \W0.500000x;(1) 8D @ 4" O/C TO 2X4 STUDS @ 16" O/C W/ (2) 2X4 TOP PLATE & \W0.500000x;5" DUTCH LAP SIDING OVER #15 FELT & 1/2" CDX PLYWOOD ANCHORED W/ \W0.500000x;W/ (3) #5 RODS CONT. \W0.500000x;1/2" DRYWALL OVER 1" BATT INSULATION & 1X2 PT FURRING STRIPS \W0.500000x;@ 16" O/C, WOOD BASEBOARD \W0.500000x;VENTILATED VINYL SOFFIT \W0.500000x;12 \W0.500000x;8 \W0.500000x;12 \W0.500000x;4

Language	English
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Aluminum, Concrete, Wood
Measurement Units
Footprint Area
Building Features
Tags	autocad, construction, dach, dalle, detailed, DWG, escadas, escaliers, floor, lajes, mezanino, mezzanine, platte, reservoir, roof, section, slab, stair, telhado, toiture, treppe, Wood
