Fountain Technical Room Layout

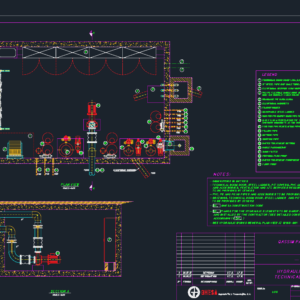

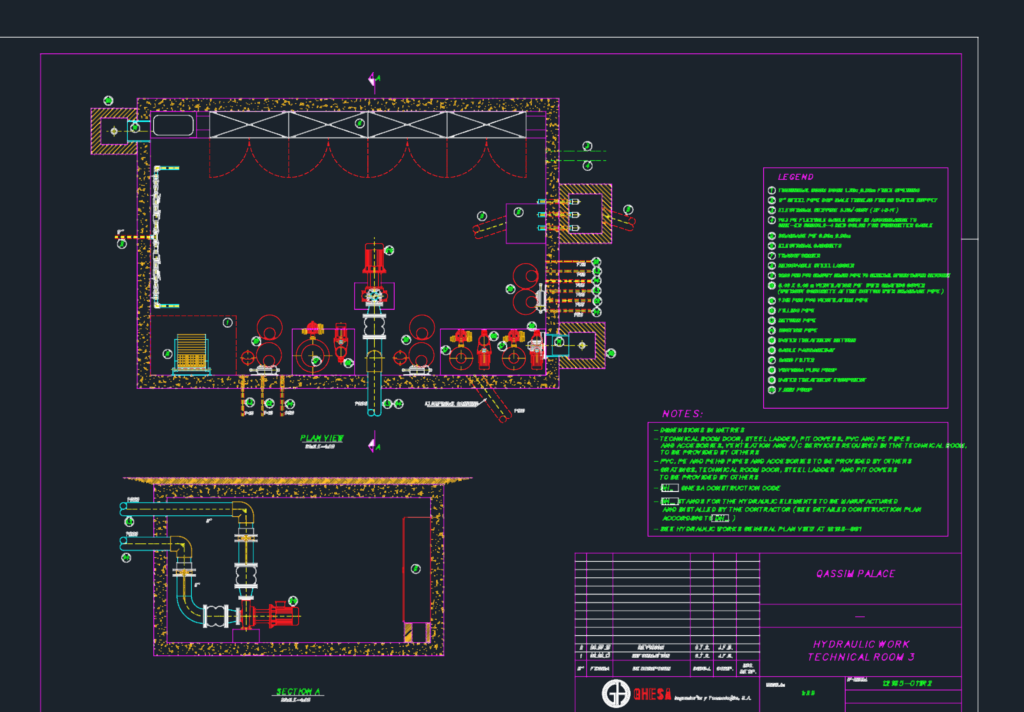

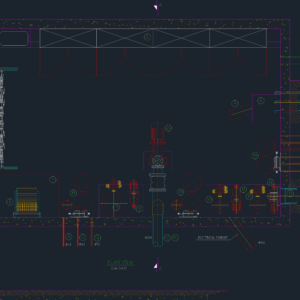

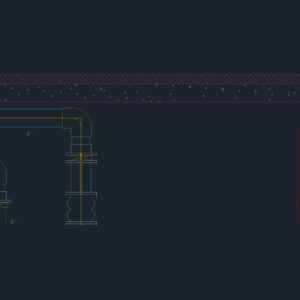

Technical room CAD drawing for a fountain showing pumps, sand filter, and piping layout in plan and section views.

pump room for fountains incl plans, sections, and equipment list

PREMIUM

File Details

File Type
DWG
Type
Plan
Language
English
Materials
Steel, Plastic, Concrete
Units
Metric
Area
50 – 149 m² (538.2 – 1603.8 ft²)
Features
Garden / Park
Uploaded by
CAD Corner
Category
Engineering & Technical, Mechanical, Electrical & Plumbing (MEP)
Published
Jun 21, 2026
Price $4.84
or

or get unlimited access from $7/mo

Tags

filtration fountain hydraulic MEP plumbing pump room technical room
