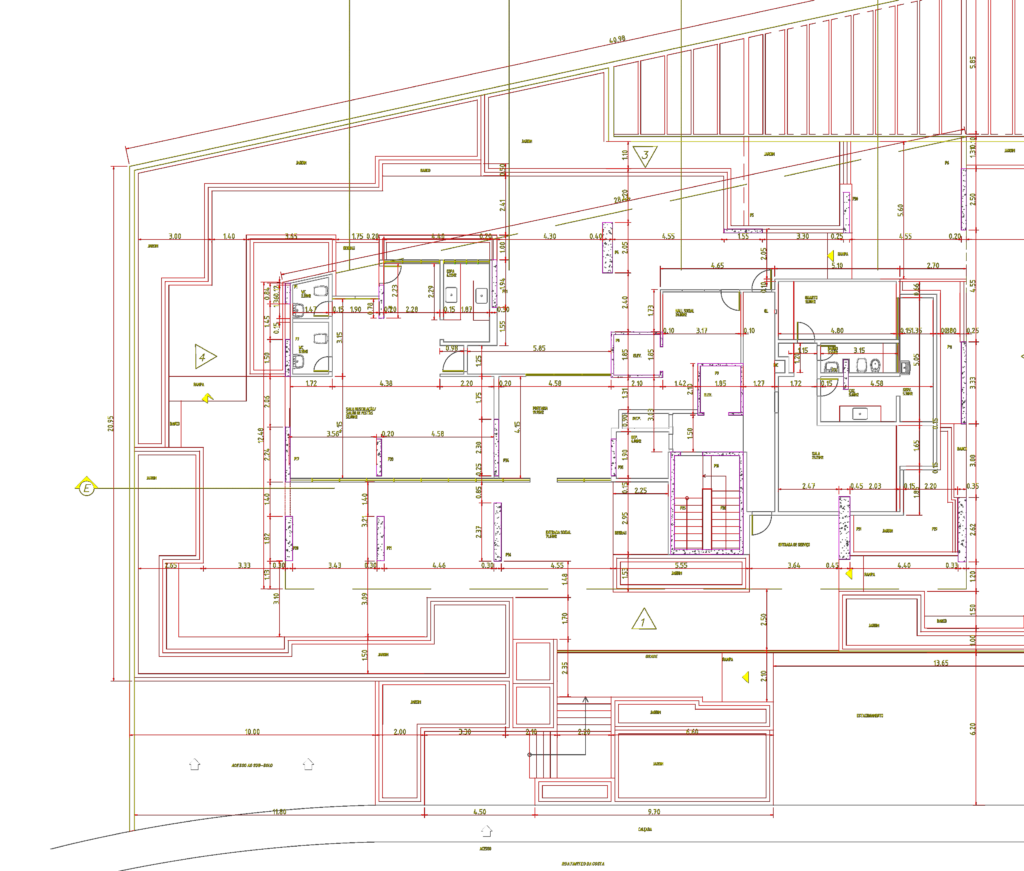

Ground floor plan for a multi-family residential building in Rio. It covers the whole site layout, from the social and service entrances to the internal apartment unit. You’ve got the gym/party room, a reception desk (portaria), and access ramps for the basement parking. The drawing shows column locations, wall thicknesses, and room areas in m2. All the landscaping is there too—gardens, benches, recreation area, etc. It’s scaled at 1/75.Planta baixa do pavimento térreo de edifício multifamiliar localizado no Leblon, Rio de Janeiro. Inclui áreas sociais, portaria, academia/salão de festas e áreas externas.
Ground Floor Architectural Plan DWG for Multi-family Residential Building
