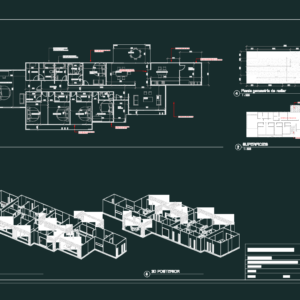

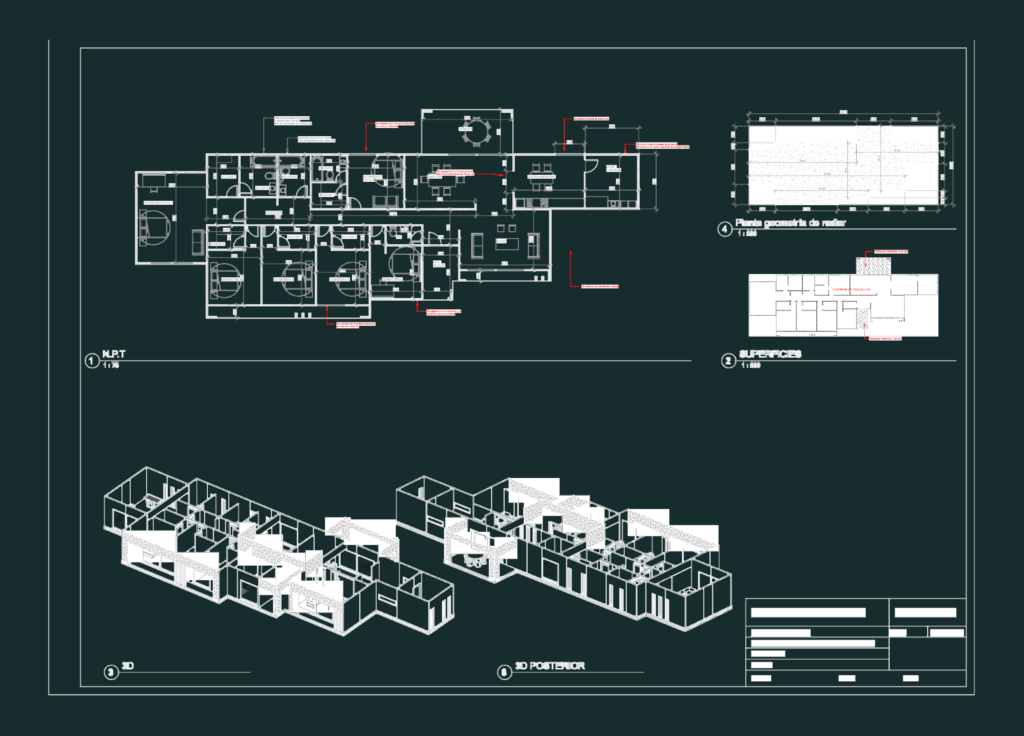

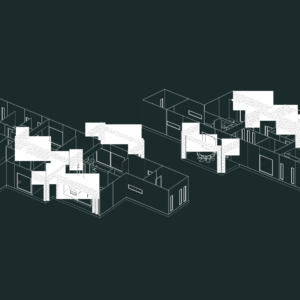

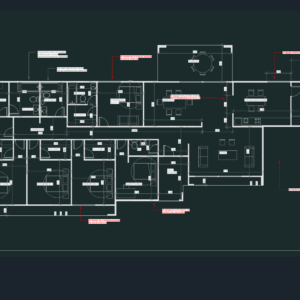

Architectural layout for a 281m2 residence designed with Marbella Plus SIP panels. The main set covers a 1:75 scale floor plan with a master suite and five secondary bedrooms, so six total. We’ve included the concrete slab geometry (radier) at 1:200 scale and a dedicated surface area breakdown. There’s an isometric 3D view too, showing the panel arrangement. Layout features a kitchen, living area and a logia + bodega section. Large terraces on the front and back are with specific m2 counts. It’s a pretty thorough set for this specific build in Copiapó.
Marbella Plus SIP Panel Residential House Plan
