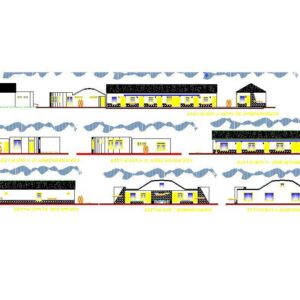

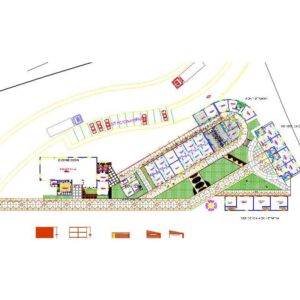

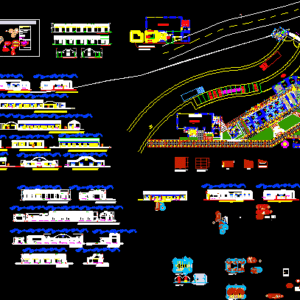

Plan, elevation and sectional view of hostel. It also called as lodge. The floor plan has following areas – dining room, parking lot, administration room, administrative residence, guest bedroom, director bedroom, 4 single bed bedroom, kitchen, hall, restroom for men and women, 10 student bedroom with applied materials . The entire plan is fully covered with landscaping and gardening. The total foot print area of the plan is approximately 3800 sq meters.
Hostel, Lodge, Star Hotel 2D DWG Plan for AutoCAD
