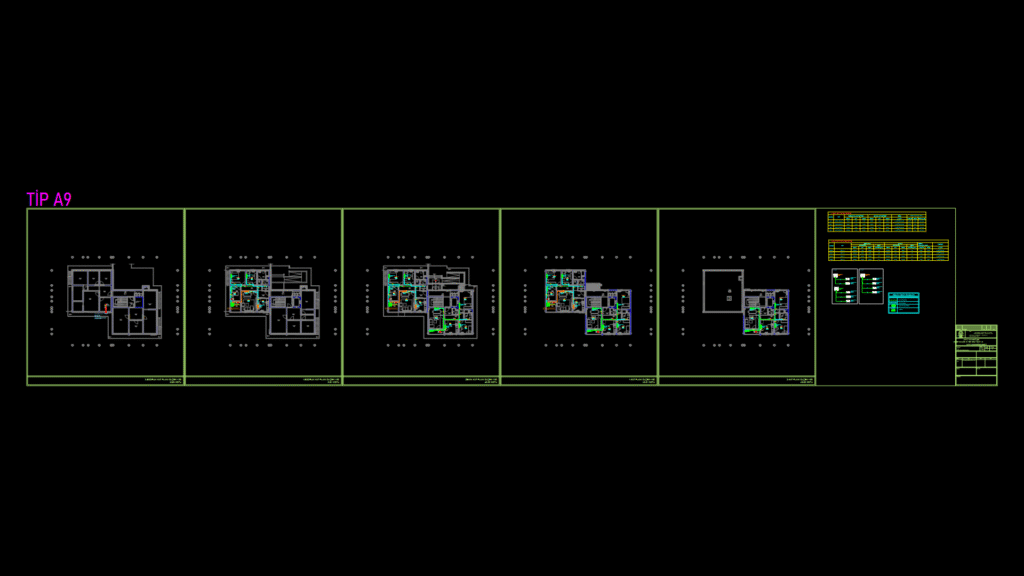

Multi-level air conditioning installation plan for a Type A9 residential building in the Hidirbey District of Hatay, Turkey. The drawing details the complete HVAC system with specified cooling capacities and equipment specifications across multiple floors at elevations ranging from -5.82m to +5.82m.
Equipment Specifications:
– Wall-mounted indoor units (D-1 through D-4) with cooling capacities from 7,000 BTU (2.0 kW) to 18,000 BTU (5.28 kW)
– Multi-split outdoor condensing units (DU-1 through DU-4) rated from 24,000 BTU (7.0 kW) to 42,000 BTU (12.3 kW)
– All units powered by 220-240V/50-60Hz single-phase electricity
– Refrigerant piping: 6.35mm liquid lines and 9.52-12.7mm vapor lines
– Condensate drain pipes (25/16mm) with specified routing
The drawing includes ventilation provisions with 200x200mm panjur (louver) installations providing 200 m³/h airflow. Note that outdoor units are stacked on balcony walls as clearly indicated in the installation notes. Project is part of a 424-unit housing development by TOKİ (Turkish Housing Development Administration).
