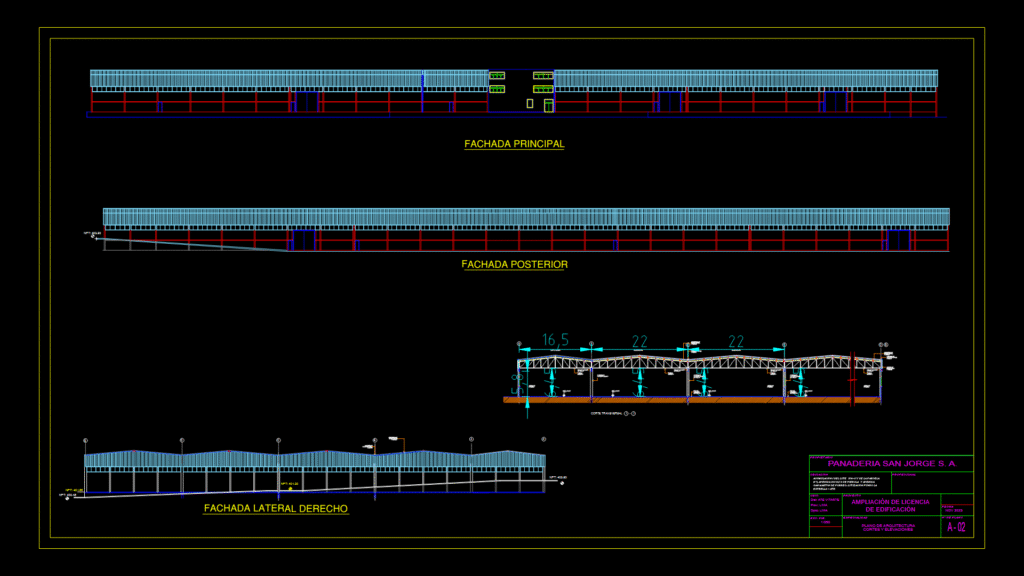

Architectural elevations and cross-section for the Panaderia San Jorge S.A. bakery facility expansion in Ate Vitarte, Lima. This drawing presents three elevations (main facade, rear facade, and right lateral facade) plus a detailed transverse section.
Key Structural Features:
– Metal trusses supporting Thermotecho roofing system with integrated rainwater drainage channels
– Reinforced concrete columns (25x50cm) with concrete floor finishing
– Concrete beams (25x70cm) supporting the roof structure
– Building height variations with finished floor levels at 401.65, 400.45, and 403.80 meters
Construction Specifications
– Thermomuro wall system along exterior perimeters
– Rainwater drainage system with continuous gutters
– Metal doors at specified heights
– Hardened concrete flooring throughout
– Section spans show 16.5m and 22m structural bays
