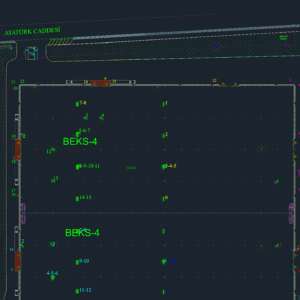

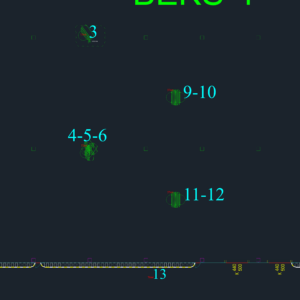

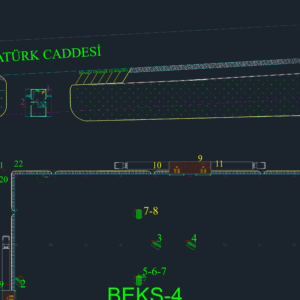

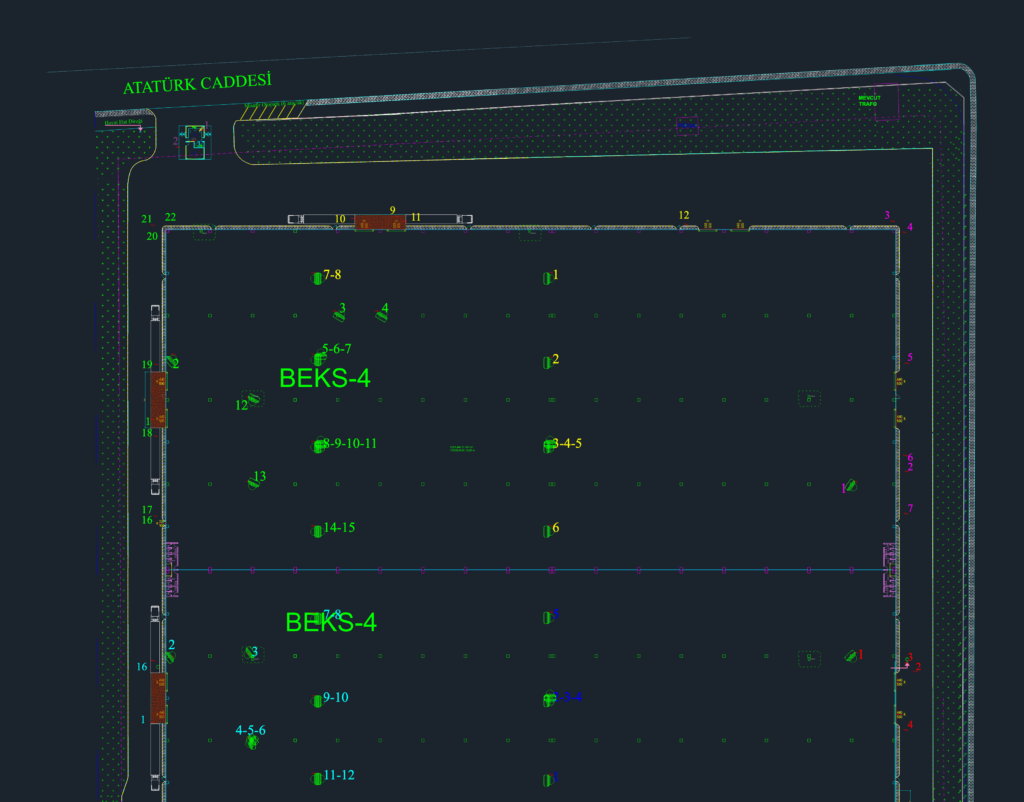

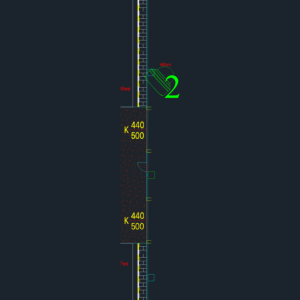

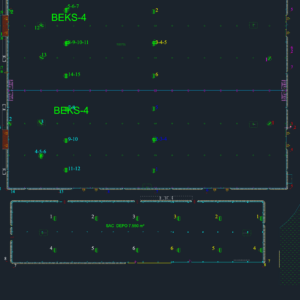

Full layout for a massive industrial warehouse facility known as BEKS-4. It covers a main area of approx. 31,500 m² with a 12m ceiling height, plus an additional steel storage (SAC DEPO) of 7,550 m². Included are detailed security and fire safety layers showing CCTV camera placements—internal dome cameras and both internal/external box cameras. I’ve also mapped out fire detector locations and rack cabinets for the network. Site features are also shown: transformer (TRAFO) station, guest parking for 6 cars, and road access points on Atatürk Caddesi. Partitioning details mention trapezoidal sheet metal (trapez saç) walls. Dimensions for the structural bays are noted, ranging from 40mt to 75mt etc.
Industrial Warehouse Security and Electrical Plan with CCTV and Fire Layout
