Latrine, Masonry DWG Plan for AutoCAD

Latrine, Masonry DWG Plan for AutoCAD

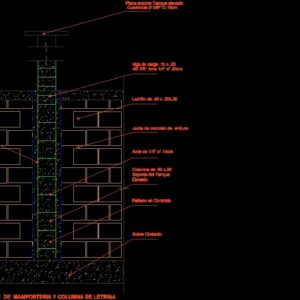

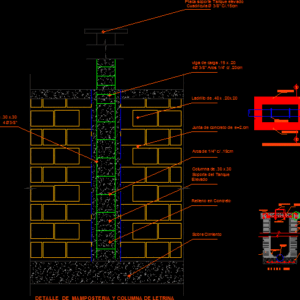

SECTION, PLAN

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Brick of, On foundation, Concrete gasket, rings of, High tank support column, Concrete filling, Loading beam, Grid, Column of, High tank support plate, Detail of masonry column of latrine, Hoops, Clay brick, meeting, Clay brick, Union of p.v.c, Tube p.v.c, Support hook lid, Perimeter angle, Clay brick, meeting, Mesh of both direction, detail, concrete, tube of, Drainage cannons, Fixing nuts, Ring of, Galvanized iron angle, Esc

Raw text data extracted from CAD file:

Ladrillo de .40 x .20x.20 Sobre Cimiento Junta de concreto de e=2.cm Aros de 1/4" c/ .15cm Columna de .30 x.30 Soporte del Tanque Elevado Relleno en Concreto viga de carga .15 x .20 Cuadricula d 3/8" C/.15cm Columna de .30 x.30 4 d3/8" Placa soporte Tanque elevado DETALLE DE MAMPOSTERIA Y COLUMNA DE LETRINA 4d 3/8" Aros 1/4" c/ .20cm Ladrillo de arcilla Junta e=2cm Ladrillo de arcilla Union de p.v.c tubo d 4" p.v.c P L A N T A R E G I S T R O A A ´ C O R T E A-A´ Gancho de soporte tapa d 1/2" Angulo Perimetral Ladrillo de arcilla Junta e=2cm Malla de d 1/4" c/.10cm Ambos sentido Detalle concreto 1-2-3 Tubo de d 4" Cañuelas desague Tuercas de Fijación d 3/8" Aro de 1/4" Ángulo de hierro galvanizado ESC 1:3 ESC 1:10 ESC 1:10 ESC 1:20

Language	Spanish
Drawing Type	Plan
Category	Bathroom, Plumbing & Pipe Fittings
Additional Screenshots
File Type	dwg
Materials	Concrete, Masonry
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	autocad, DWG, latrine, masonry, plan, section, toilet, toilette, toilettes, WC
