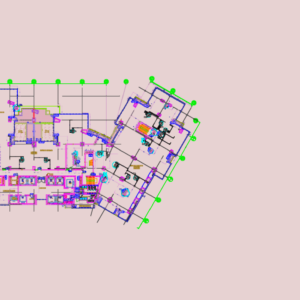

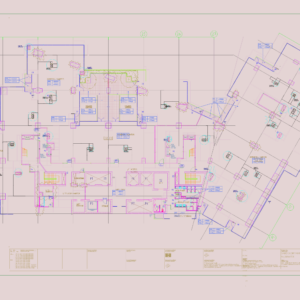

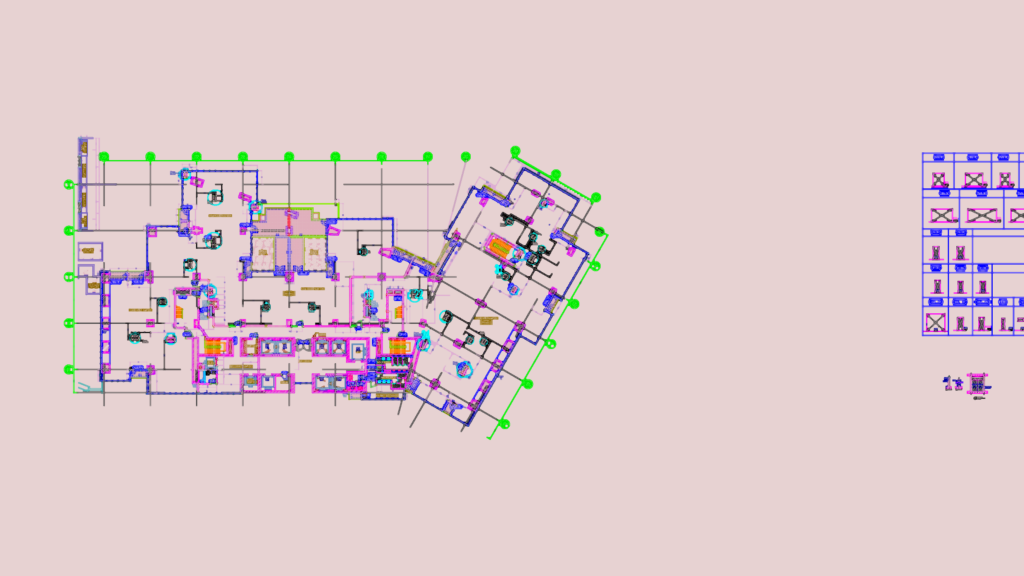

Level 2 floor plan for the Sahid Sudirman Residence in Jakarta. I’ve included the office layouts, lift lobbies, & service areas. celcon partitions and various MEP shaft sizes (300×700, 400×1100, etc.) are all there. FFL is +10000 and SSL is +9960. Ringbalk details call for 4 dia. 10 reinforcement with dia. 6-200 beugel. – Materias: concrete, celcon masonry, granite, ceramic – Scales: 1:150 and 1:300 – Spaces: shared garden, engineering room, pantry Works for multi-story residential/commercial coordination.
Level 2 Architectural Layout for Sahid Sudirman Residence Jakarta
