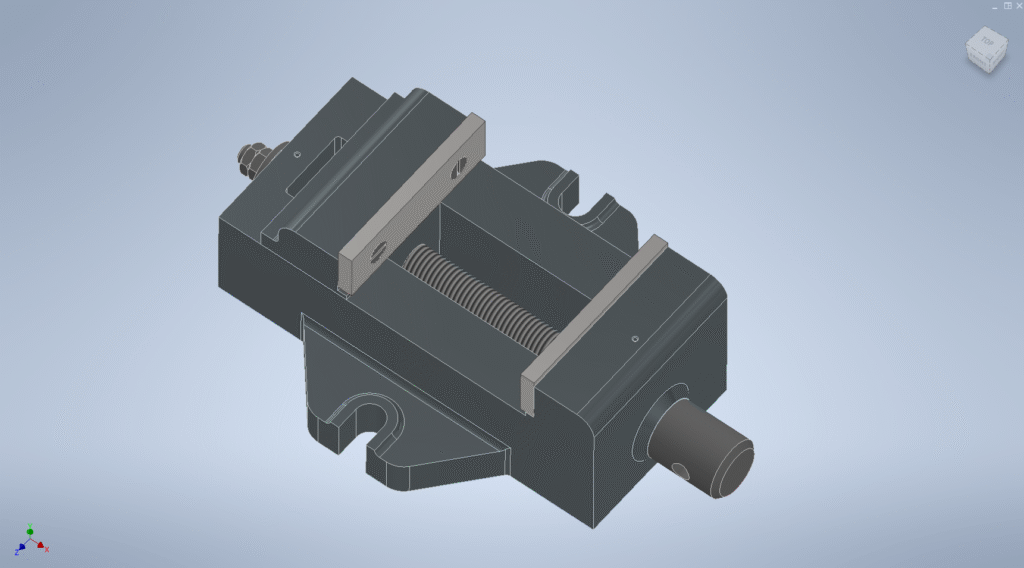

This project contains a complete Machine Vice assembly designed in Autodesk Inventor.
Files Included:
– All individual part files (.ipt)
– Fully constrained assembly file (.iam)
– Dimensioned 2D manufacturing drawing
– STEP file for compatibility with other CAD software
The model includes base, fixed jaw, moving jaw, lead screw, handle, and guide components.
Suitable for mechanical engineering students, workshop design, and fabrication reference.
All dimensions are in metric units.
