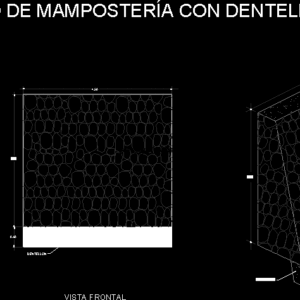

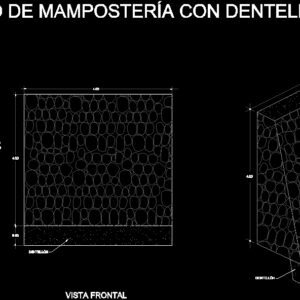

Masonry Retaining Wall DWG Detail for AutoCAD

Masonry wall with Dentellon – Details

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

filter, gravel, toothbrush, masonry wall with dentellón, binder, drain, side view, front view, toothbrush, symbology, minor base, major base, base greater dentin, lower tooth base, tooth height, height wall, isometric

Raw text data extracted from CAD file:

H=4.00 B1=0.60 FILTRO GRAVA DENTELLÓN b2=0.40 h=0.60 b1=0.30 B=1.50 MURO DE MAMPOSTERÍA CON DENTELLÓN CARPETA DREN 4.50 4.00 0.60 VISTA LATERAL VISTA FRONTAL DENTELLÓN DENTELLÓN 4.00 4.50 SIMBOLOGÍA B1 = Base menor B = Base mayor b2 = Base mayor dentellón b1 = Base menor dentellón h = Altura dentellón H = Altura Muro ISOMETRICO
