Metalcon DWG Full Project for AutoCAD

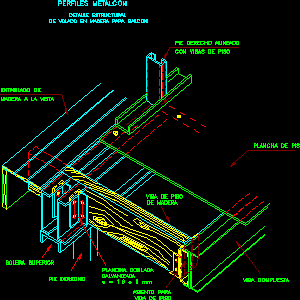

Structural detail wooden projecting in balcony

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

structural engineering, way melipilla santiago, fax phone, cintac s.a., issued for information, description, revisions, revised, date, first name, rodrigo concha p., civil engineer, cad file, approved, professional, drawing, rev. dib, calculation, p. lies, r. shell, firm, file, composite sections, metalcon profiles, cont., rev., right foot aligned, with floor beams, board of, wood the view, right foot, upper hearth, floor beam, of wood, right foot, folded iron, galvanized, seat for, floor beam, composite beam, floor iron, metalcon profiles, of flown in wood for balcony, structural detail

Raw text data extracted from CAD file:

INGENIERIA ESTRUCTURAL E-MAIL : desarro@cintac.cl CAMINO A MELIPILLA 8920 – SANTIAGO FONO : 3682300 – FAX : 5575498 CINTAC S.A. EMITIDO PARA INFORMACION DESCRIPCION REVISIONES N A REVISO FECHA NOMBRE 0200-0.DWG RODRIGO CONCHA P. INGENIERO CIVIL ARCHIVO CAD : APROBO PROFESIONAL DIBUJO REV. DIB CALCULO P. ACOSTA R. CONCHA FIRMA FICHA : ME97 0200-0 SECCIONES COMPUESTAS PERFILES METALCON CONT. REV. A PIE DERECHO ALINEADO CON VIGAS DE PISO ENTABLADO DE MADERA A LA VISTA PIE DERECHO SOLERA SUPERIOR VIGA DE PISO DE MADERA PIE DERECHO PLANCHA DOBLADA GALVANIZADA ASIENTO PARA VIGA DE PISO VIGA COMPUESTA PLANCHA DE PISO e = 1.6 o 1 mm PERFILES METALCON DE VOLADO EN MADERA PARA BALCON DETALLE ESTRUCTURAL
