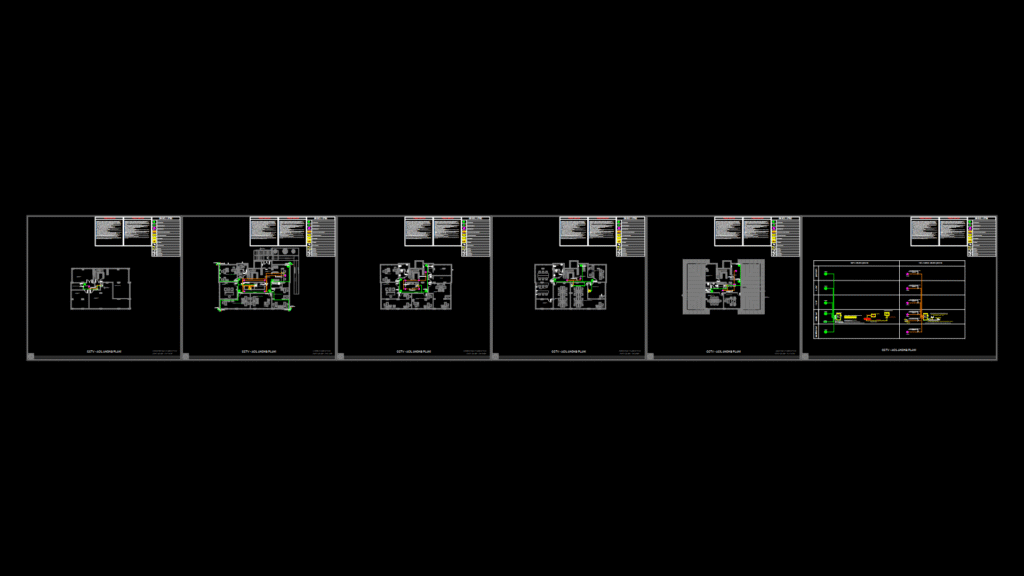

A comprehensive security and communication infrastructure plan for a 5-level building (basement, ground, first, second, and roof floors) with total area of approximately 1,314 m². This drawing details both CCTV surveillance and emergency announcement systems with complete cabling infrastructure.
CCTV System Components:
– Interior dome cameras and exterior bullet cameras strategically positioned throughout all floors
– 32-channel Network Video Recorder (NVR) with 48-port PoE switch for camera connectivity
– CAT6 UTP HF cabling for all camera connections
– 40″ LED LCD monitor for central monitoring and 22″ LED monitor for secondary viewing
– Fiber optic connectivity between monitoring stations
Public Address System:
– Ceiling-mounted 6W hat transformer speakers distributed across 5 distinct zones
– 300W amplifier with announcement unit and UHF handheld wireless microphone
– LIH(st)H FE180 3×1.5 mm² fire-resistant cabling for speaker connections
– Integration with fire detection system for emergency announcements
System Integration: Both systems share rack cabinet infrastructure with UPS backup power. The CCTV, public address, and data systems utilize a centralized 42U rack cabinet with appropriate patch panels and networking equipment.
