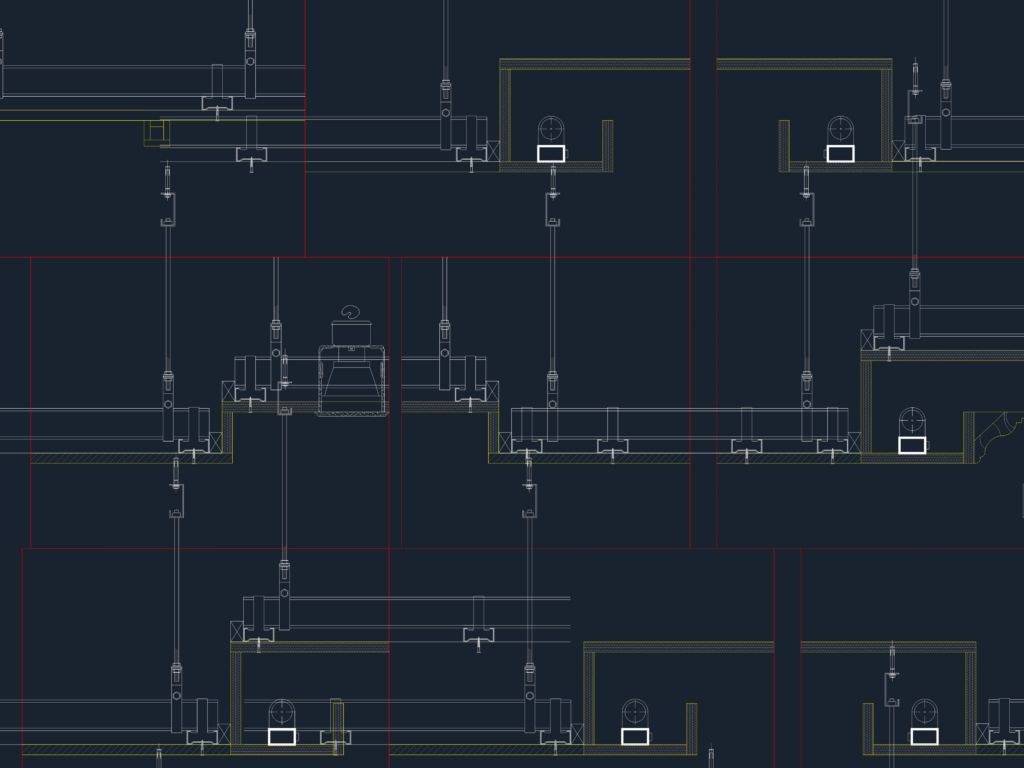

Ceiling section details for various suspended gypsum board configurations. Includes typical arrangements for indirect cove lighting, curtain pockets, and wall junctions. Structural suspension components are shown, including threaded rods, hangers, and main/cross runners. Detail views cover multi-level ceilings with light troughs and decorative cornices. Materials indicated include gypsum board on metal furring, steel hangers, and LED light strip housings.Dims in inches.
Multiple Suspended Gypsum Ceiling Section and Cove Lighting Details
