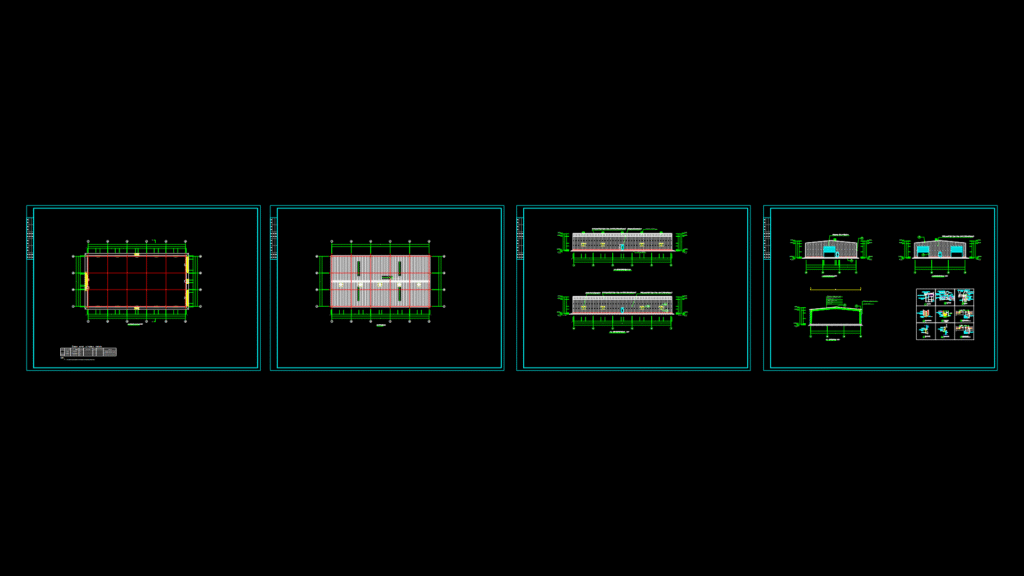

This comprehensive set of drawings depicts a prefabricated industrial building with lightweight steel structure, featuring both architectural and structural details. The building employs a 35m × 18m grid system with 6 bays and 6.2m height (±0.000 to +5.900m). The structure utilizes V-820 type 0.3mm roof panels and V-900 type 0.3mm wall panels, both with white-grey outer finish. Connection details showcase key interfaces like door/window edging, masonry wall connections, and roof-to-wall transitions at 1:20 scale. The facility incorporates aluminum alloy swing doors (900×2000mm), rolling doors (4000×4000mm), and plastic steel sliding windows (1500×1000mm). Insulation consists of 50mm single-sided aluminum foil glass wool (16kg/m³) with 1.0mm stainless steel wire mesh. Roof design includes a 10% slope with self-tapping screw fasteners (M5.5×45@≤350mm) and waterproof aluminum rivets (Ø5×13@300mm) for panel connections. The foundation employs a concrete pressure top system with appropriate flashing and sealant at critical junctions.
Prefabricated Industrial Building Plans with Steel Structure Details
