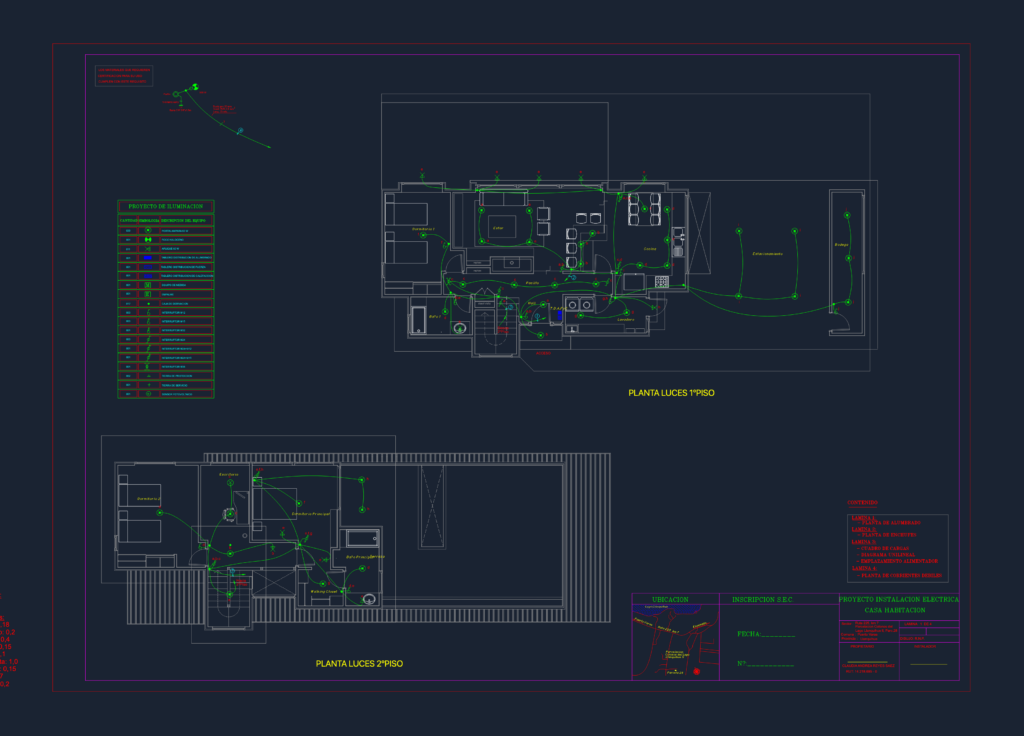

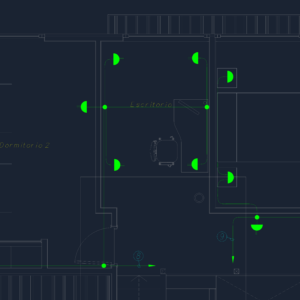

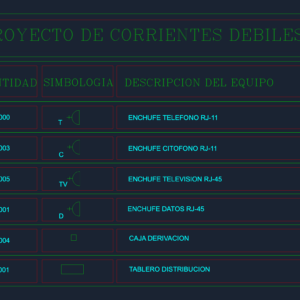

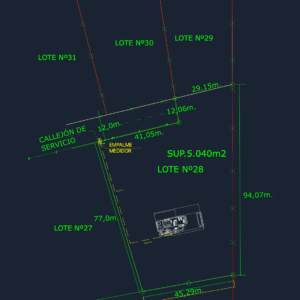

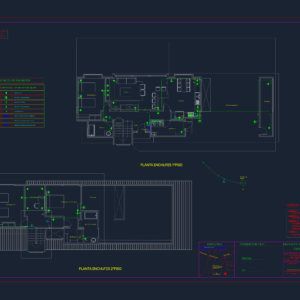

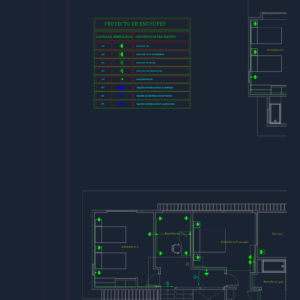

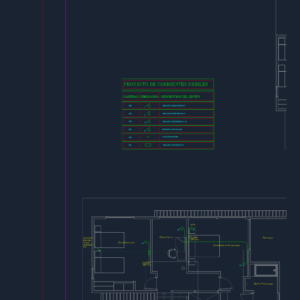

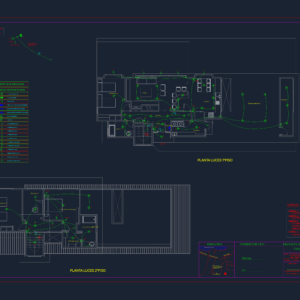

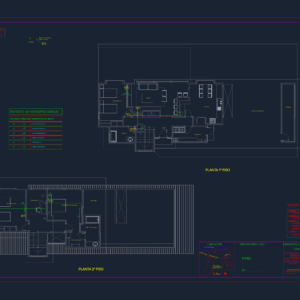

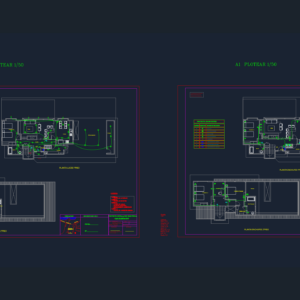

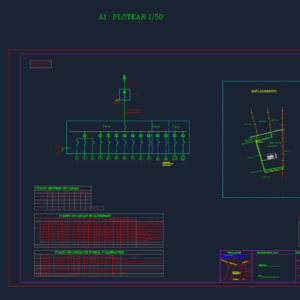

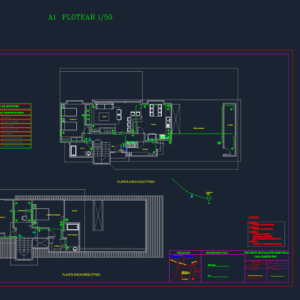

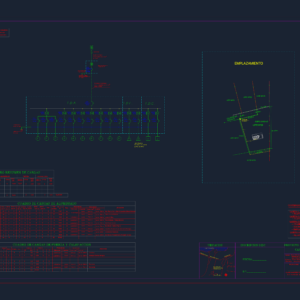

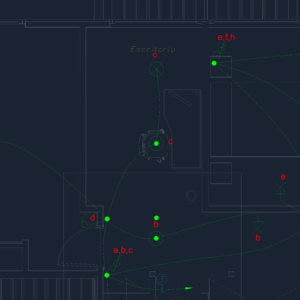

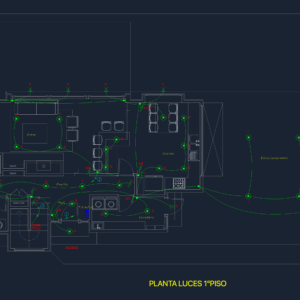

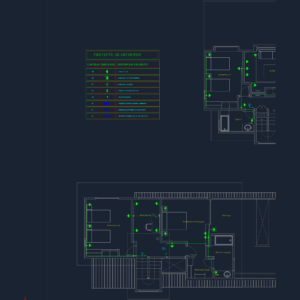

complete set of electrical drawings for a two-story residence in Puerto Varas. Includes 4 sheets covering everything from the lighting layout to power sockets and weak currents for telecom. detailed load schedules (cuadros de cargas) for lighting, force, and heating circuits are included. single-line diagrams (unilineales) and feeder location plans are also there. 1st floor has the kitchen, living room, laundry, and garage/storage area. 2nd floor covers bedrooms, study, and master bath. project is scaled at 1/50 for A1 plot.. Proyecto en español. Includes technical specs for wiring (THHN), grounding, and circuit protection.
Residential Electrical Installation Project – Casa Colonos (15.45 KW)
