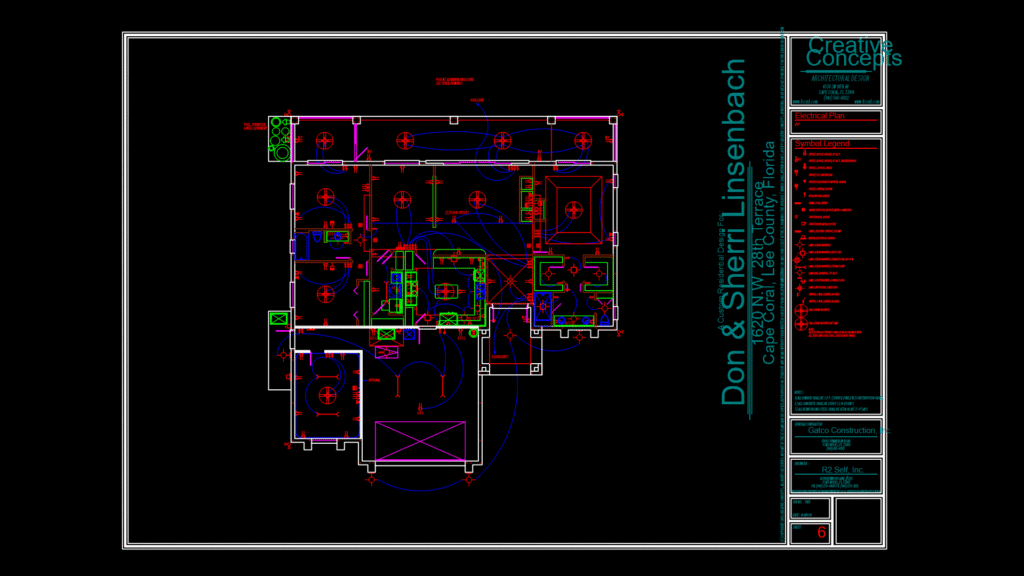

This electrical plan depicts a comprehensive power distribution layout for a single-family residence in Cape Coral, Florida. The drawing shows, essentially, a 200 AMP electrical service panel with circuit specifications for both 110V and 220V applications throughout the home. Notable electrical features include multiple GFCI-protected outlets in wet areas, weatherproof exterior outlets, interconnected smoke detectors, and specialized circuits for pool equipment. The plan incorporates ceiling-mounted fans, recessed lighting fixtures, and landscape lighting. Blue lines indicate wiring runs between fixtures and junction boxes, with clear demarcation of three-way switch connections. The design complies with 1997 SBCCI standards for 110 MPH wind loads, essential for Florida coastal construction. The layout thoughtfully addresses both functional requirements and safety concerns, with particular attention to proper electrical isolation for the swimming pool and aluminum enclosure area.
Residential Electrical Plan with GFCI Protection and Pool Integration
