Project Overview

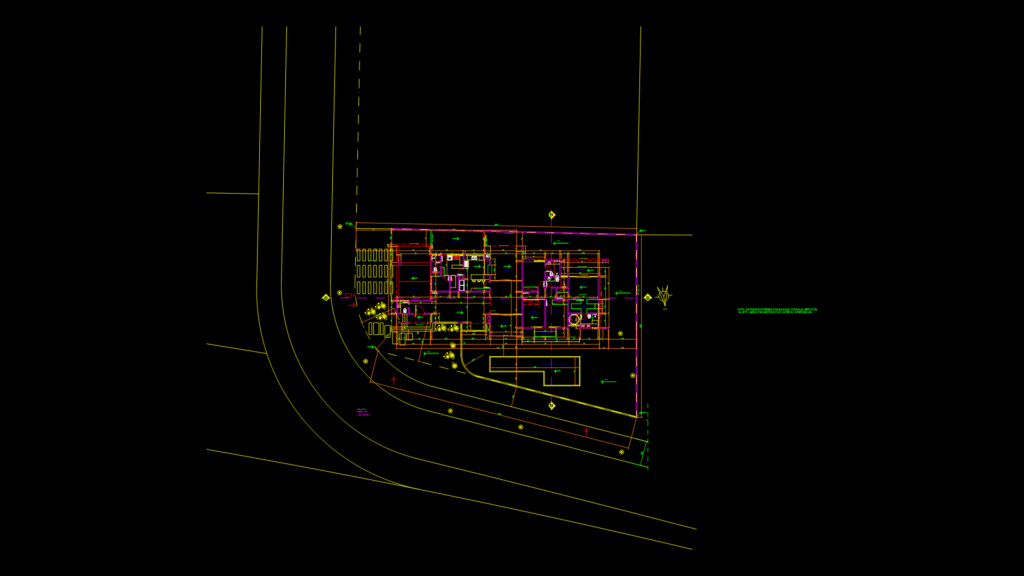

This architectural floor plan depicts a single-family residence situated on a corner lot at the intersection of Rua Ouro Preto and BR/356 in the Alphaville Lagoa dos Ingleses development. The dwelling occupies a 843.92 m² lot with a built area of 307.29 m² (representing a 36.41% site coverage ratio).
Spatial Organization
The residence features a thoughtful layout that includes:
– Social Areas: Living room, dining room, and gourmet veranda with integrated kitchen (23.67 m²)
– Private Areas: Master suite with closet, two additional bedrooms, and intimate living space
– Service Areas: Kitchen, laundry, maid’s quarters with bathroom, and utility spaces
– Outdoor Amenities: Swimming pool, garden areas, and covered porch
The design incorporates level changes, with the main floor at reference level 0.00, and various areas stepping up (+0.22, +0.58, +0.73, +0.75, +0.76) or down (-0.90) to create spatial hierarchy.
Technical Specifications
– Exterior wall height: 280 cm
– Boundary wall height: 180-200 cm with vegetative screening
– Large sliding glass doors (450×240 cm, 450×390 cm) create indoor-outdoor connections
– Fireplace feature in the main living area
– Strategic window placement for cross-ventilation
– Service patio includes both covered and uncovered areas
The plan incorporates detailed dimensions for all rooms, openings, and circulation paths, with particular attention to the relationship between interior spaces and exterior landscaped areas. The property boundaries are clearly delineated with a combination of solid walls and vegetative screening to provide privacy while maintaining views.
