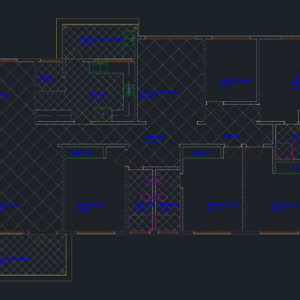

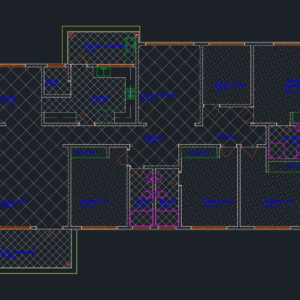

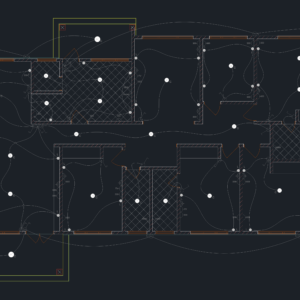

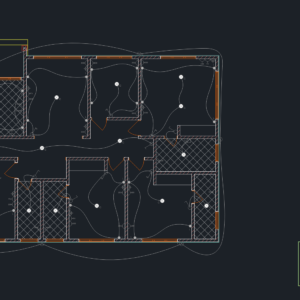

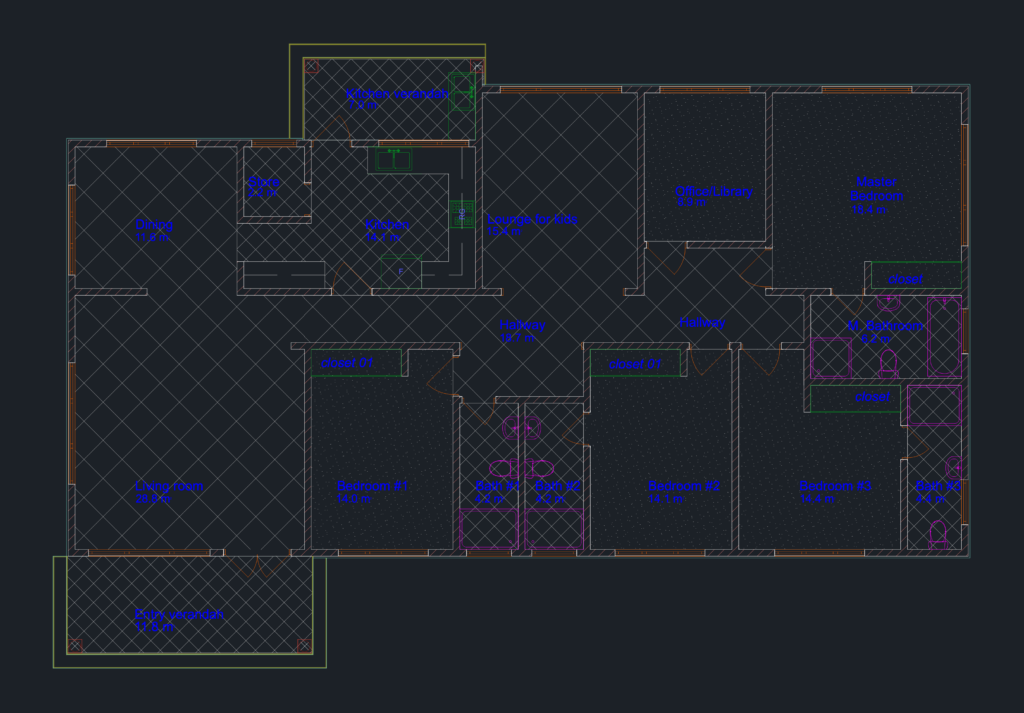

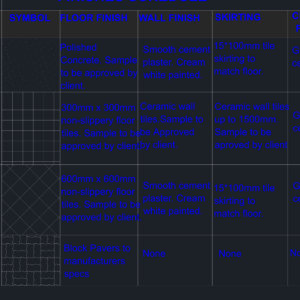

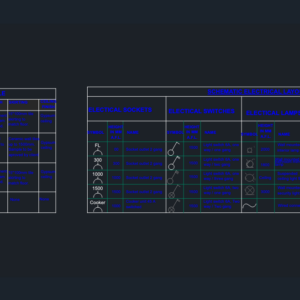

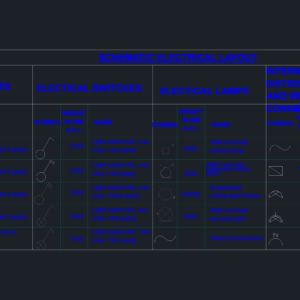

Residential floor plan for a 4-bedroom home featuring a comprehensive schematic electrical layout. It covers lighting circuits, socket placements, and specialized units like the 45A cooker switch for the kitchen. There is also a detailed finishes schedule for every room, specifying everything from gypsum ceilings to polished concrete and non-slippery ceramic tiles. The house layout includes a master bedroom with an en-suite bathroom, three additional bedrooms, an office/library, and a very spacious 28.8 sqm livig room. Technical symbols for switches (1-gang, 2-gang, 2-way) and various interior/exterior lamps are clearly labeled with height specs for installation. Everything is in metric units.
Residential Floor Plan with Schematic Electrical Layout and Finish Schedule
