Residential house floor plan

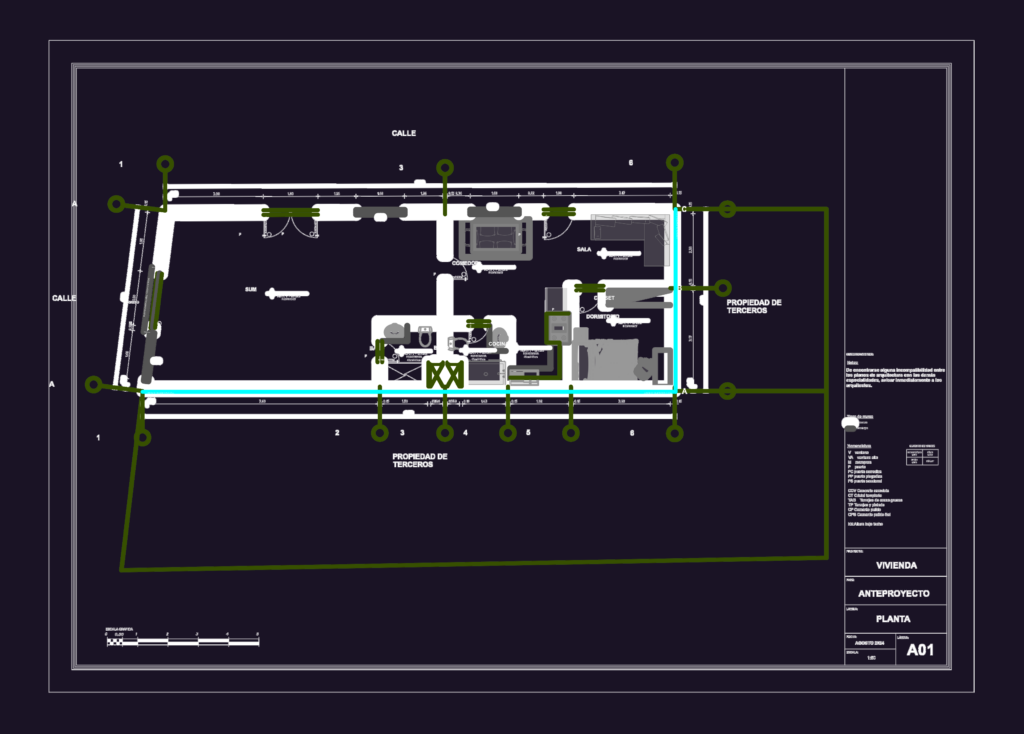

2D architectural floor plan of a small residential house with living room, bedroom, and dining area annotations.

Floor plan for a small house with sala, dining area, and bedroom. basic anteproyecto layout.

FREE

File Details

File Type
DWG
Type
Plan
Language
Spanish
Materials
Concrete, Masonry, Wood, Glass
Units
Metric
Area
50 – 149 m² (538.2 – 1603.8 ft²)
Uploaded by
CAD Corner
Downloads
1 downloads
Category
House, Residential
Published
Jun 6, 2026

Download faster, ad-free, with more daily files from $7/mo

Tags

architecture House Plan residential spanish
