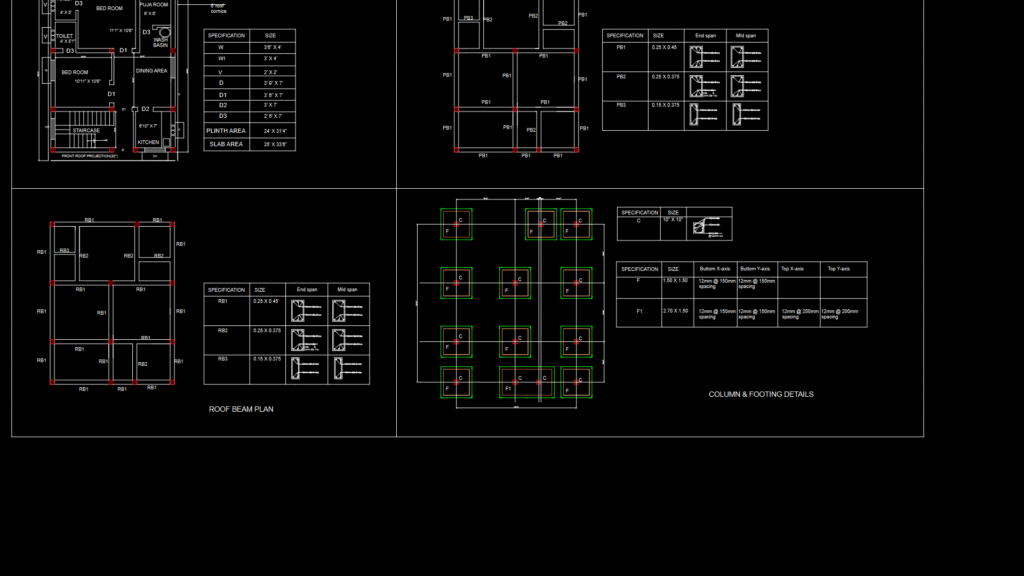

Comprehensive single-family house plan featuring ground floor layout, plinth beam plan, roof beam plan, and column/footing details. This floor plan showcases a 24′ x 31’4″ plinth area with two bedrooms (10’11” x 10’6″), kitchen (11’1″ x 10’6″), puja room (6′ x 6′), dining area, toilet, and staircase. Door specifications include three variants (D1: 3’9″ x 7′, D2: 3’6″ x 7′, D3: 3′ x 7′). The structural plans detail beam dimensions with PB1-PB3 plinth beams (0.25 x 0.45m to 0.15 x 0.375m) and RB1-RB3 roof beams with reinforcement specifications. Column footings (10″ x 10″) include detailed rebar configurations with 12mm bars at 150mm/200mm spacing. The thoughtful layout optimizes space utilization while providing proper circulation between functional areas; the 20″ front roof projection adds weather protection to the entrance.
Residential House Plan with Structural Details and Beam Layout
