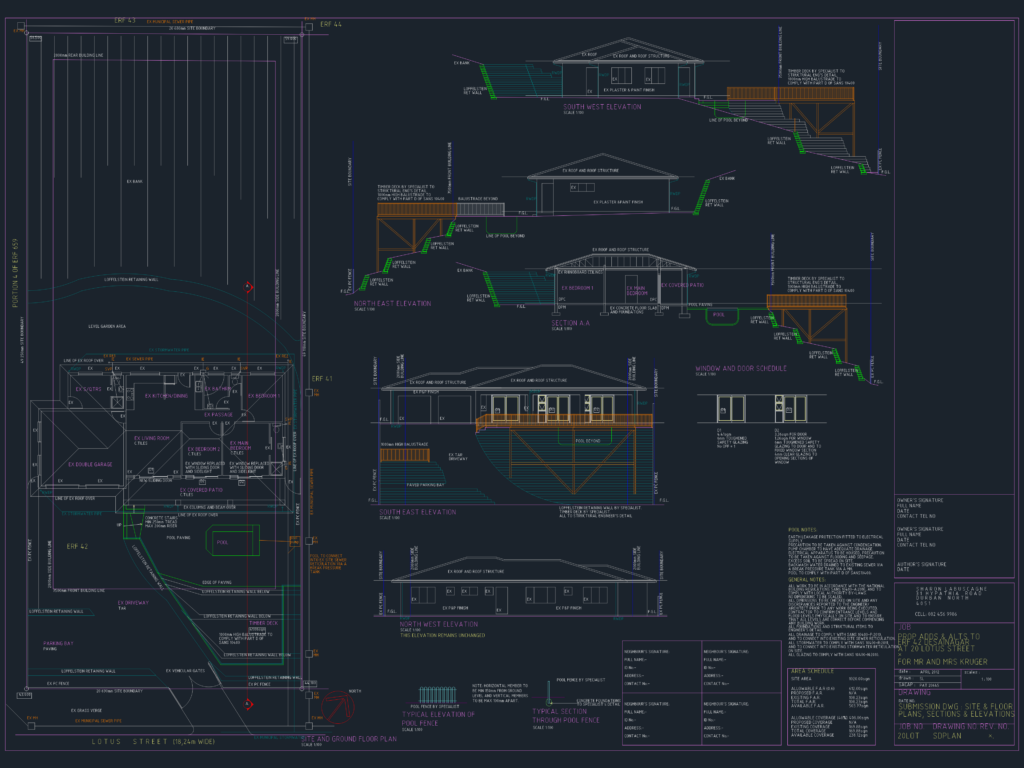

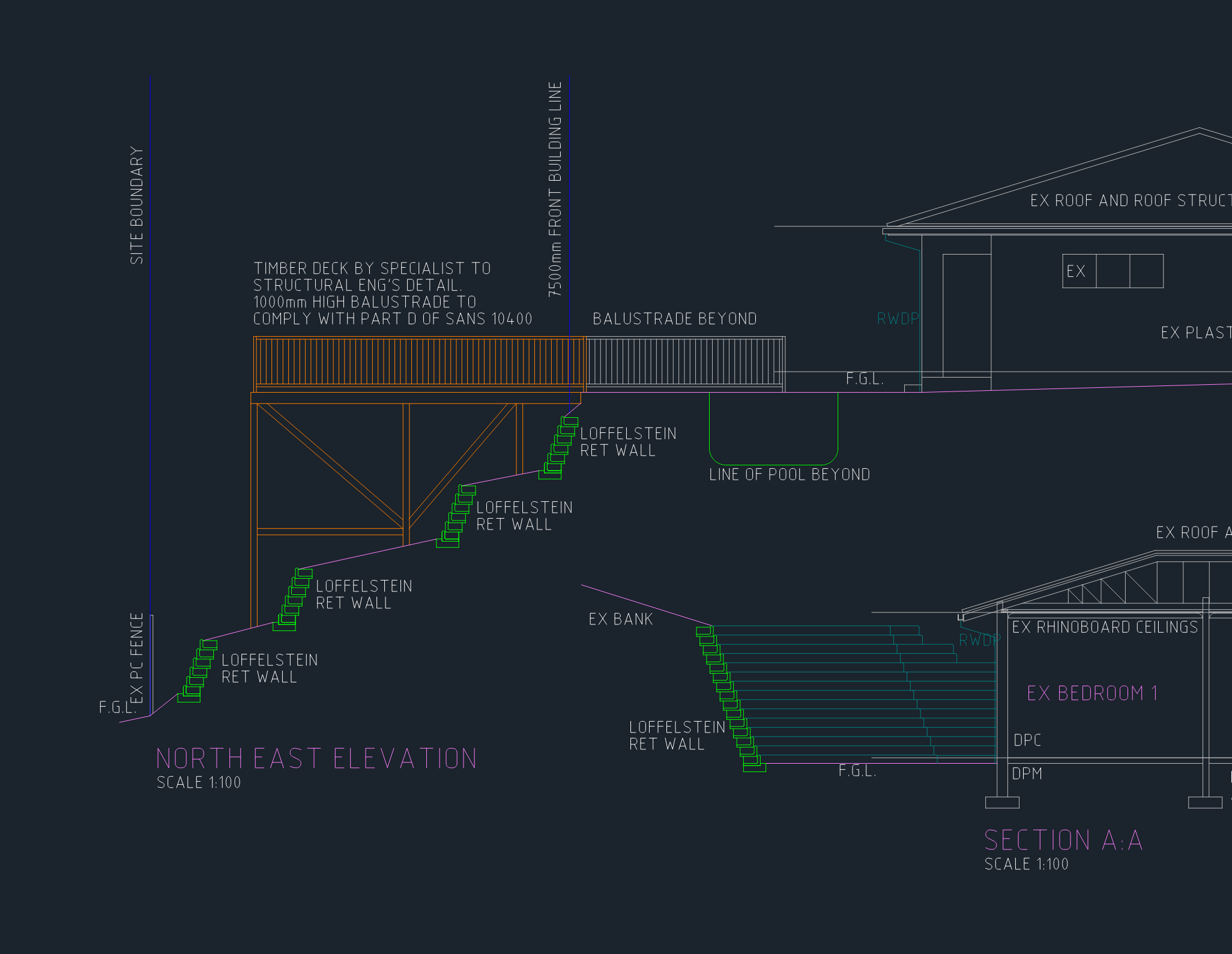

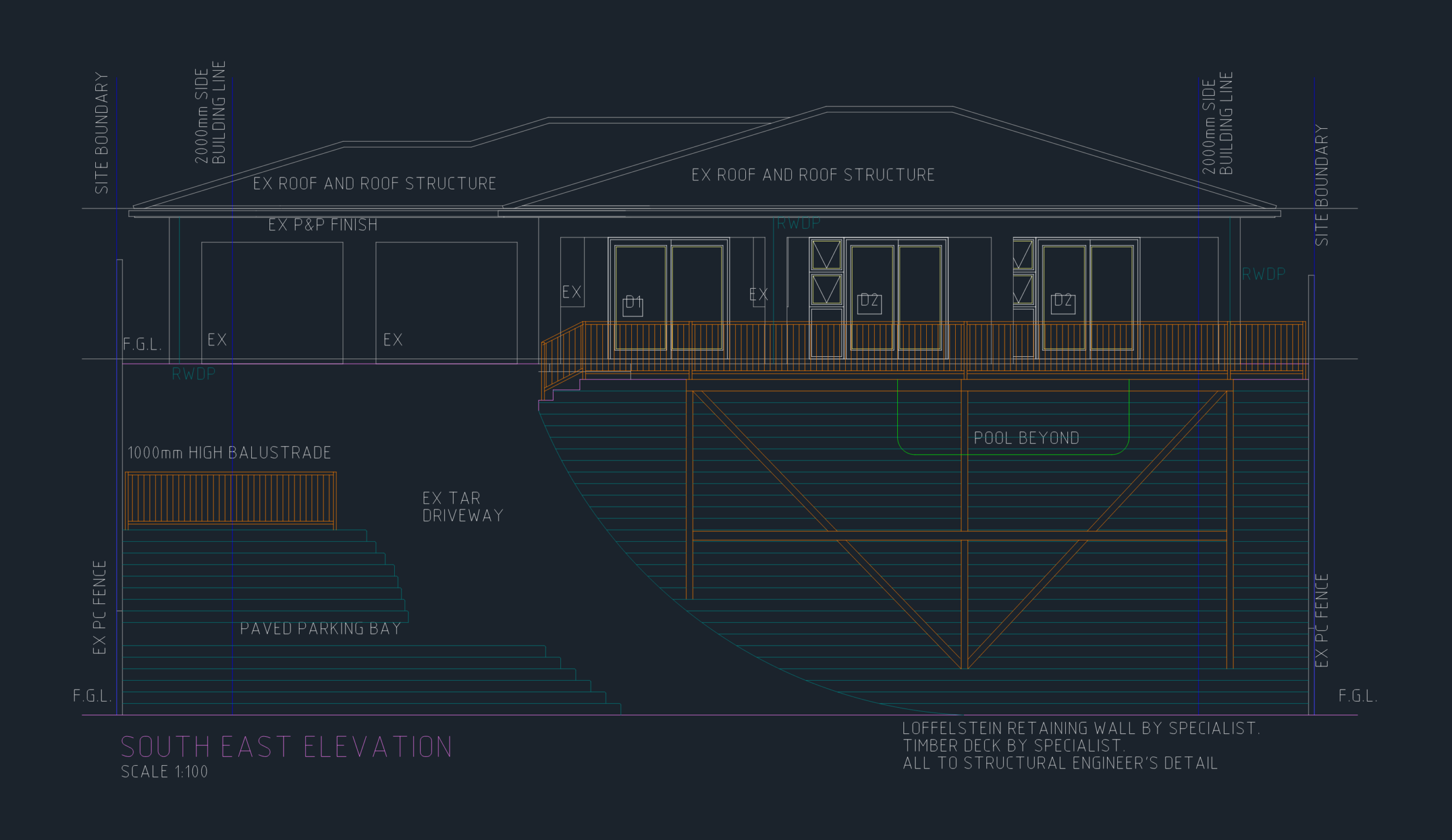

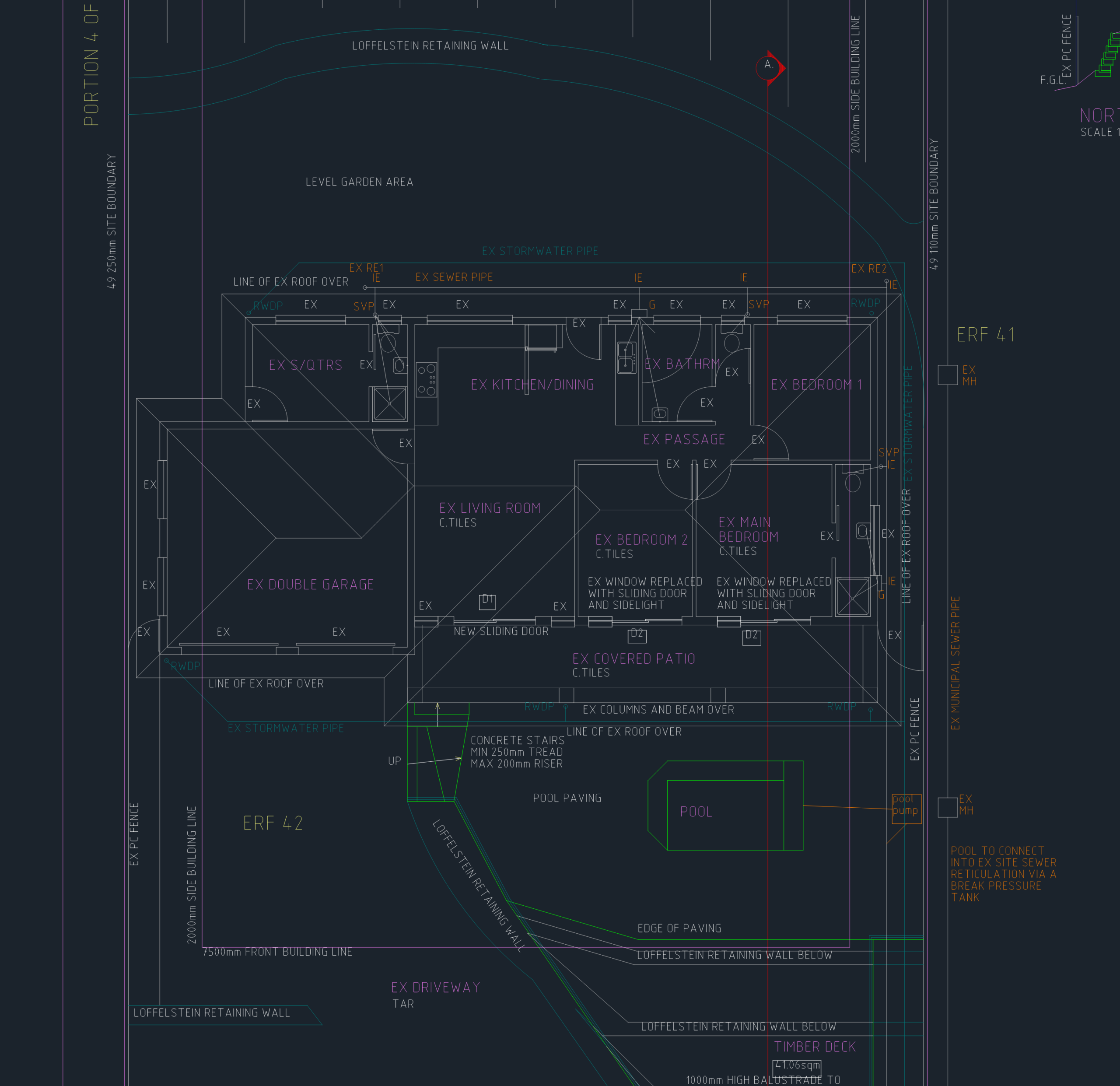

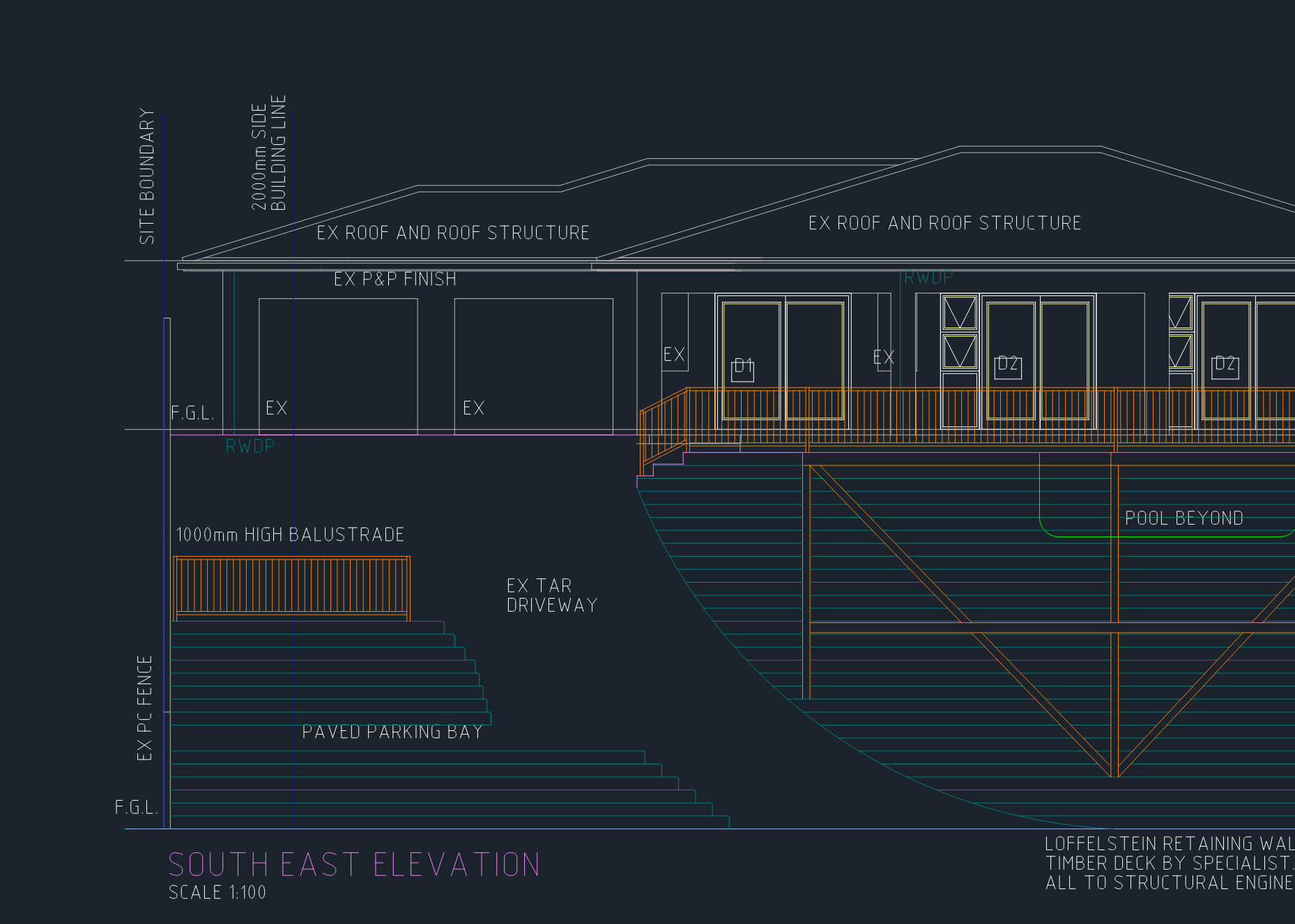

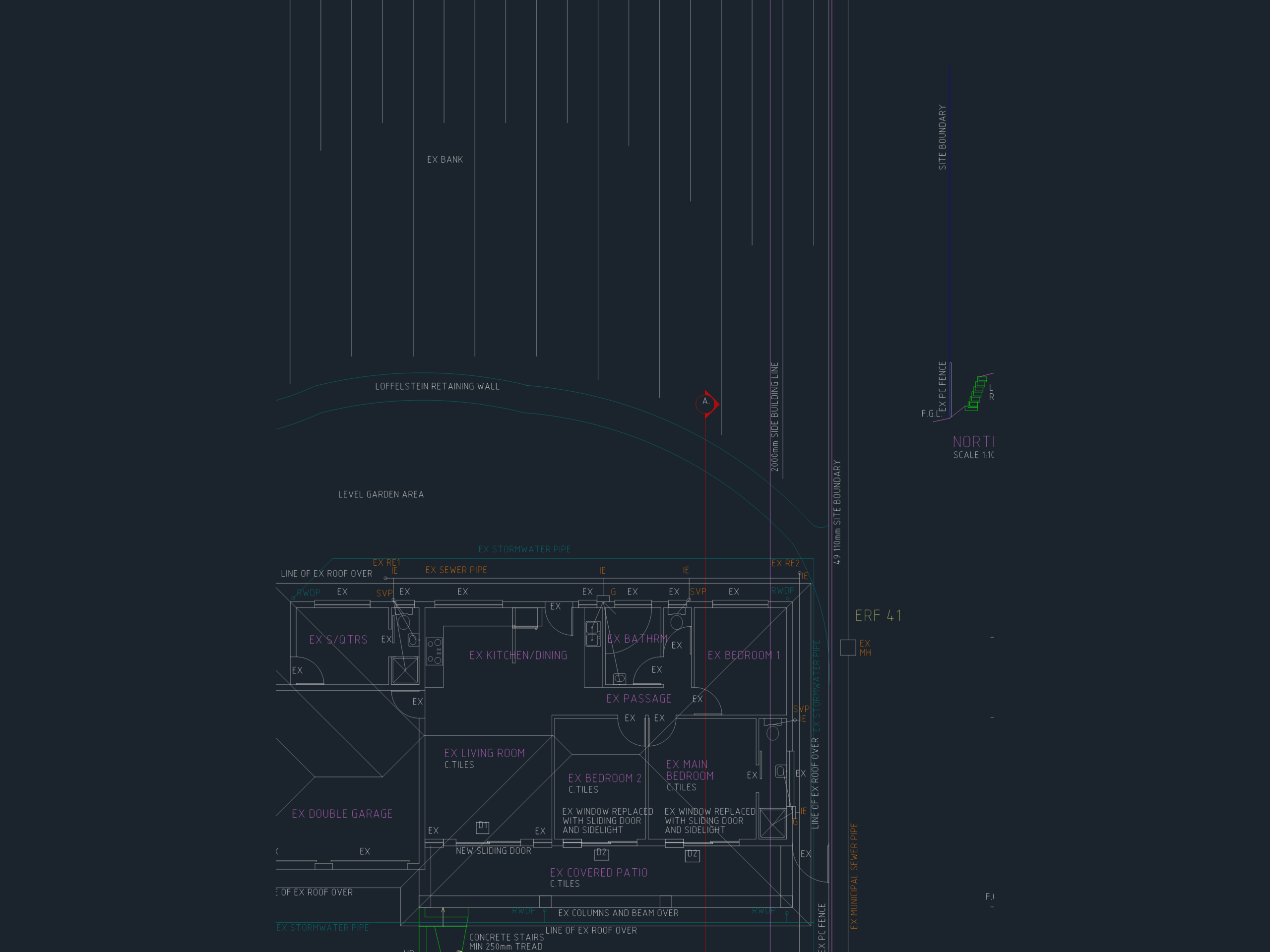

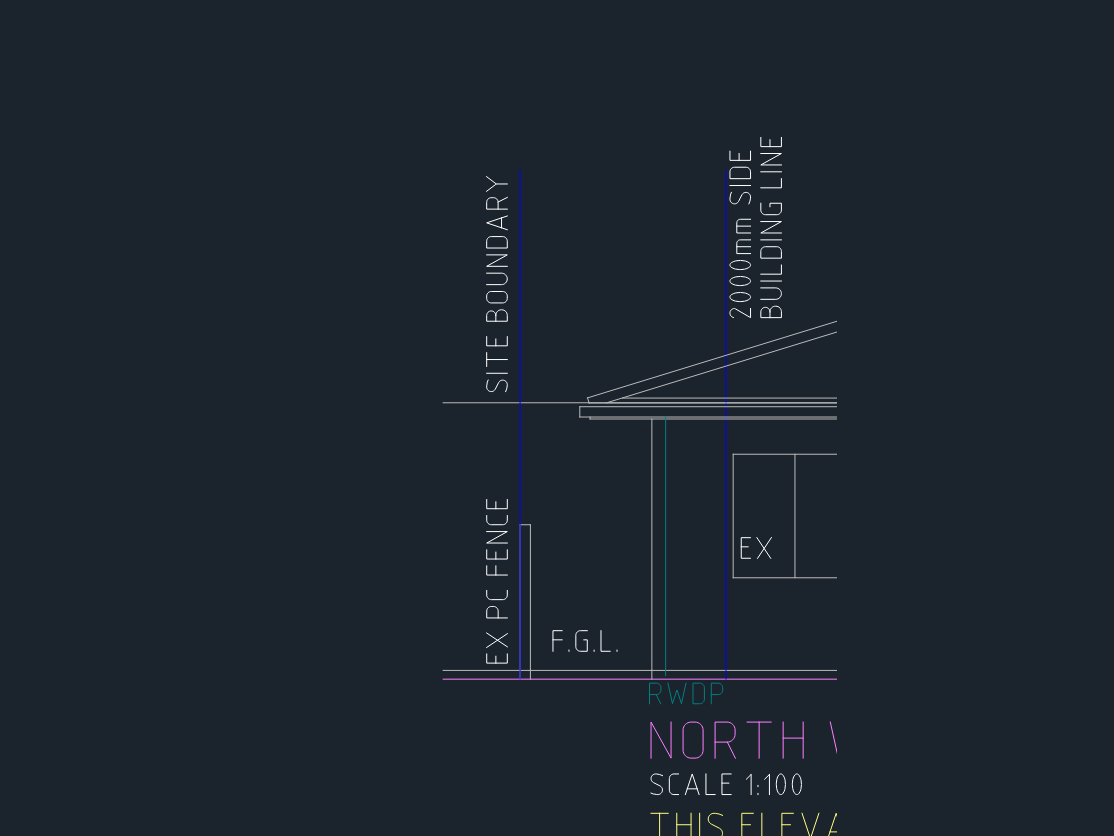

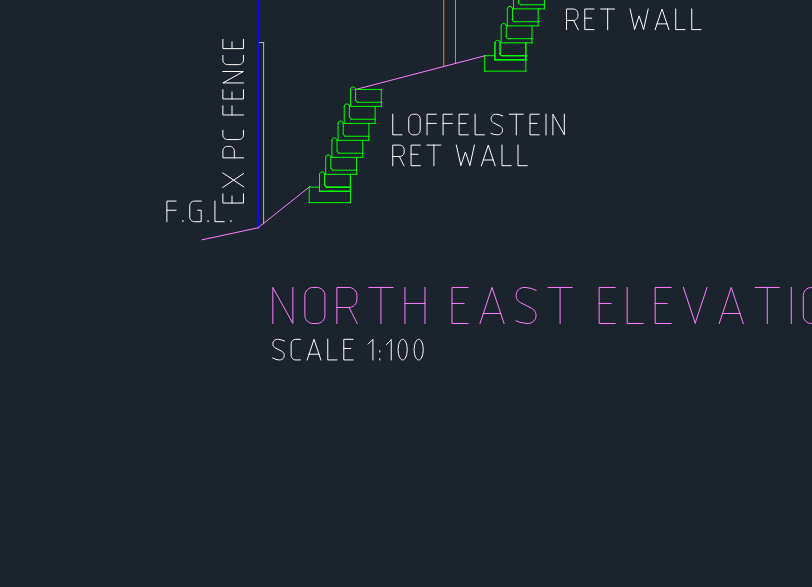

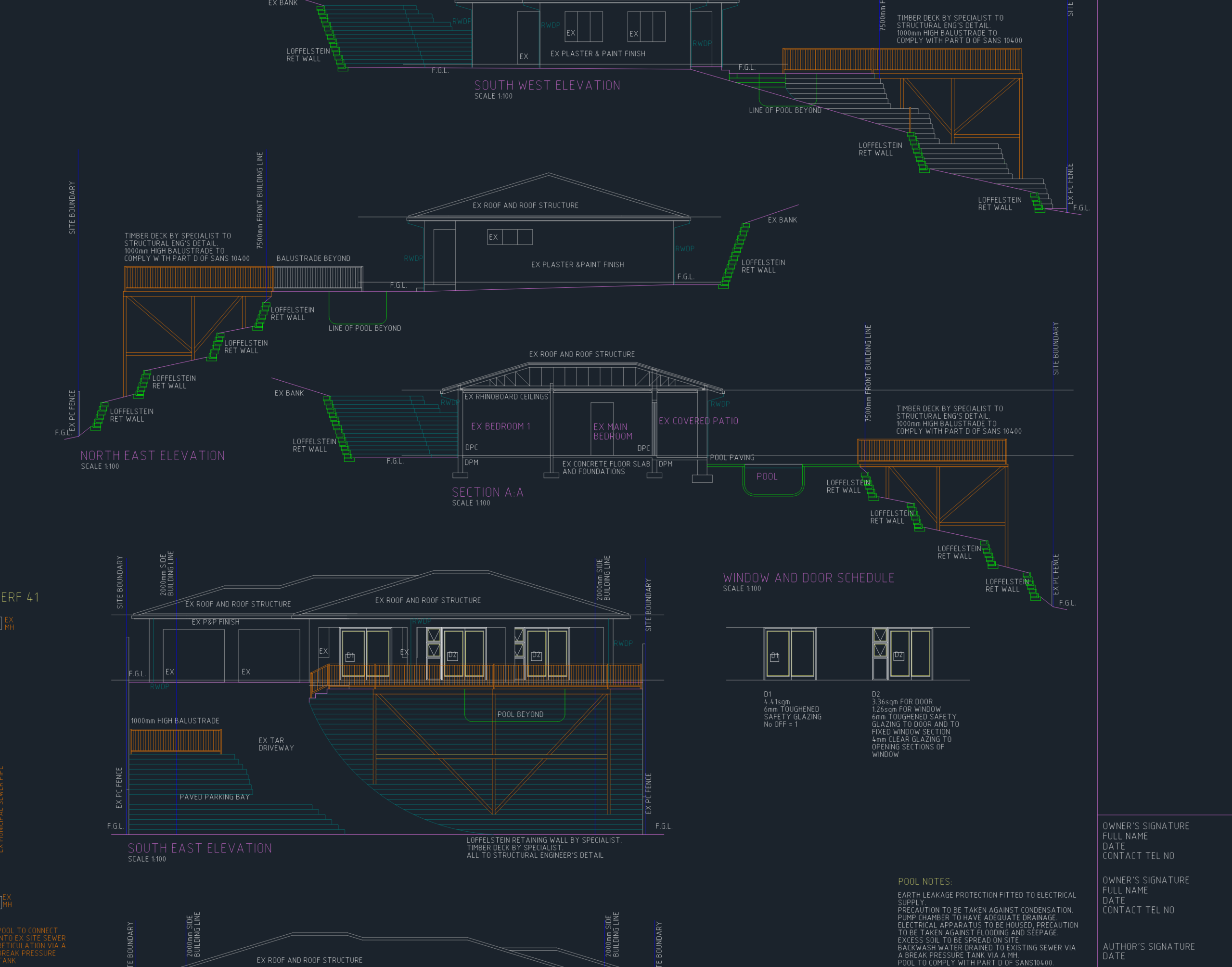

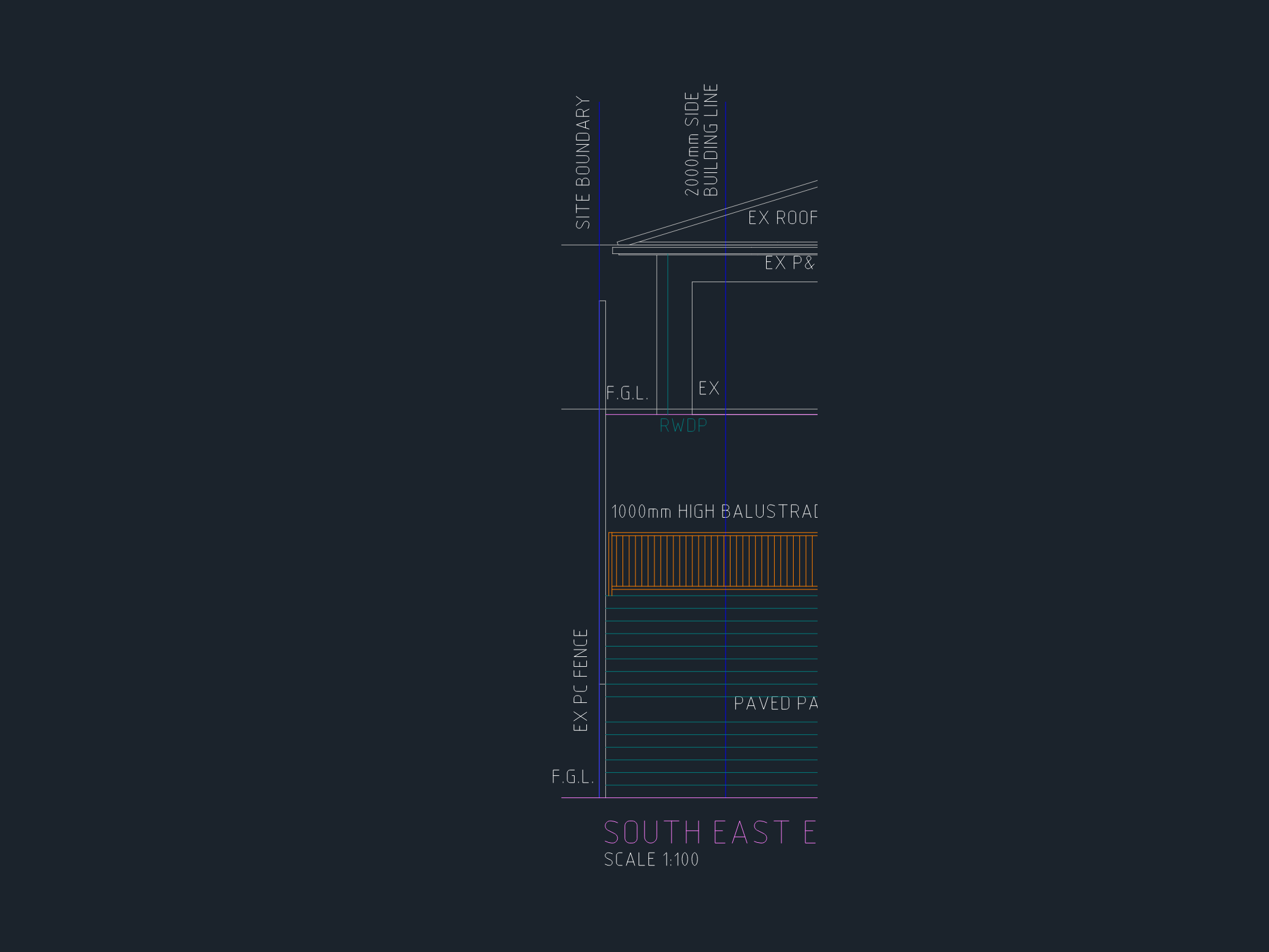

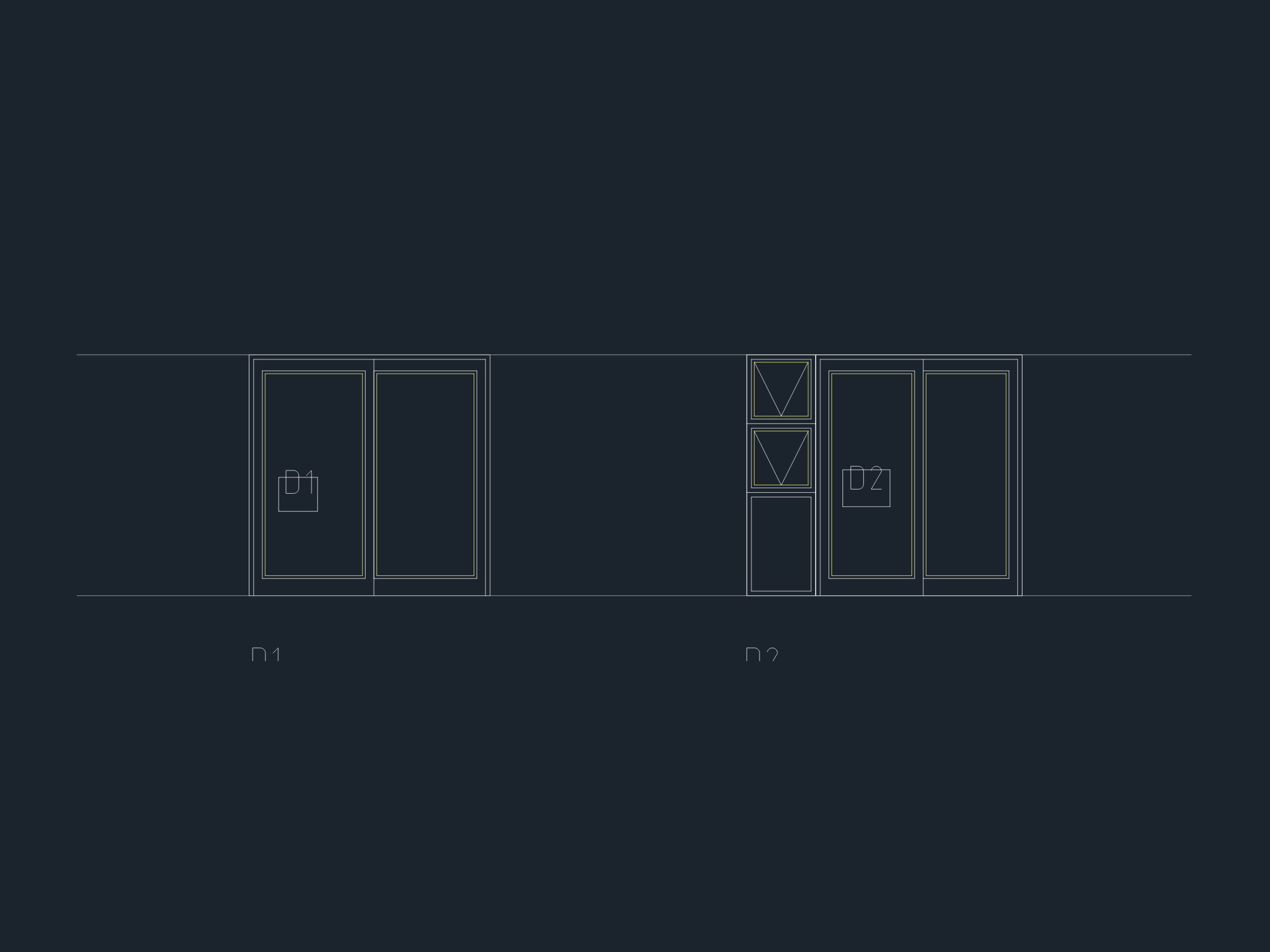

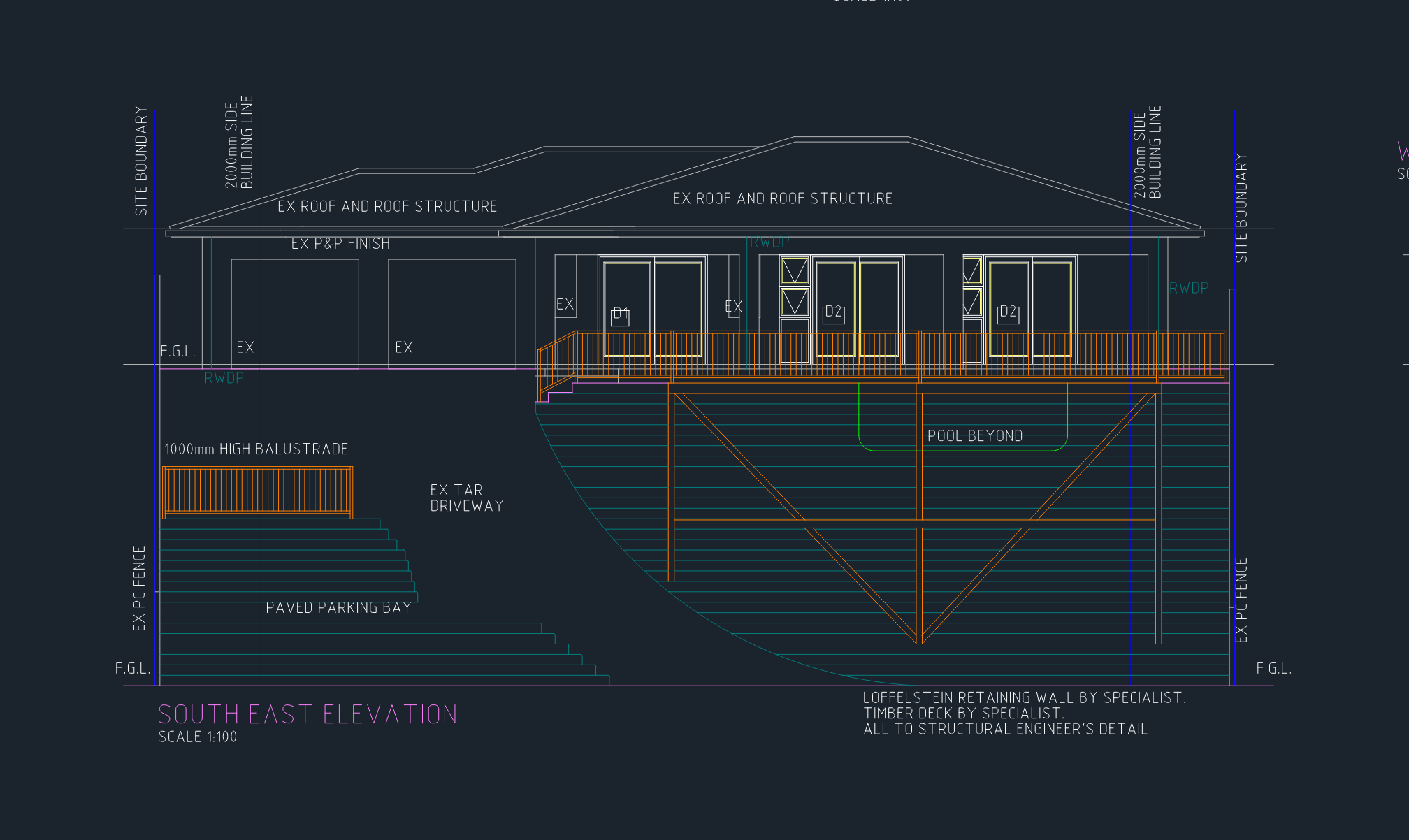

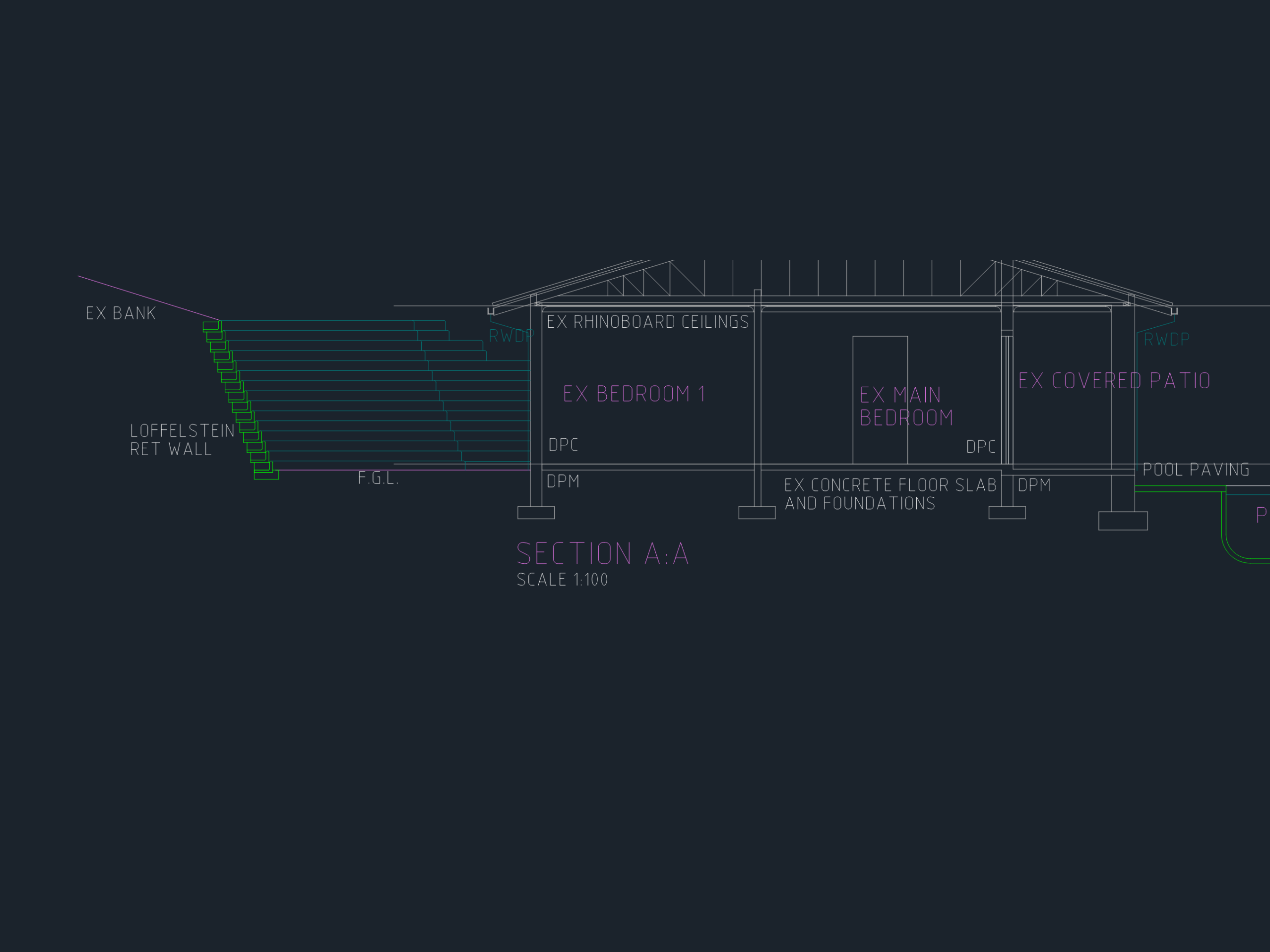

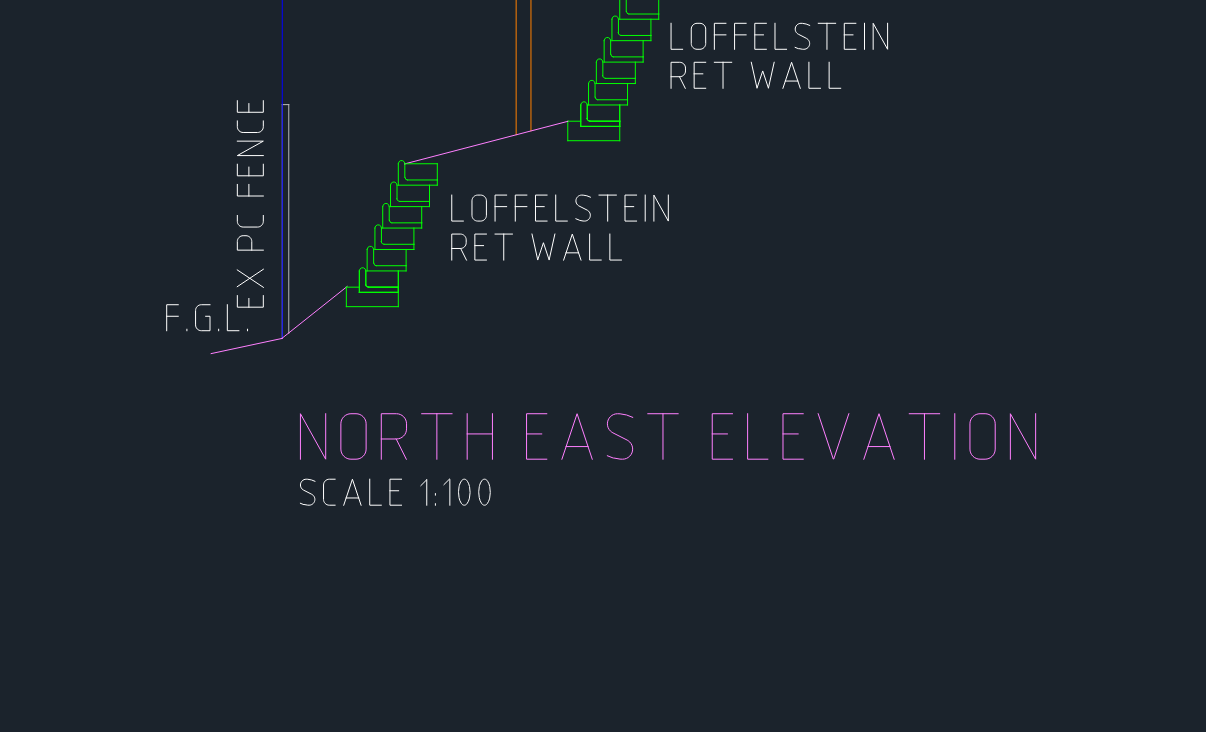

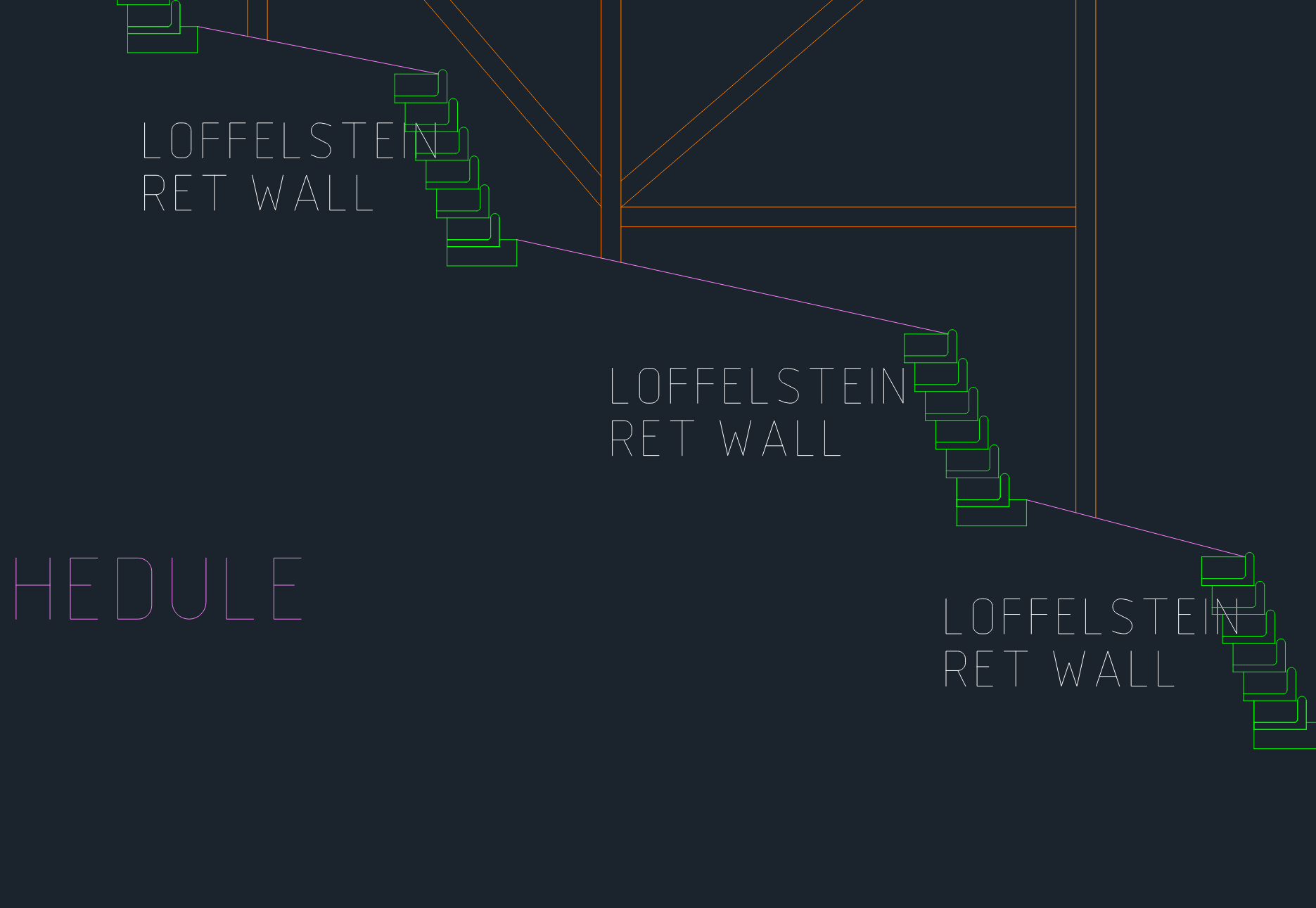

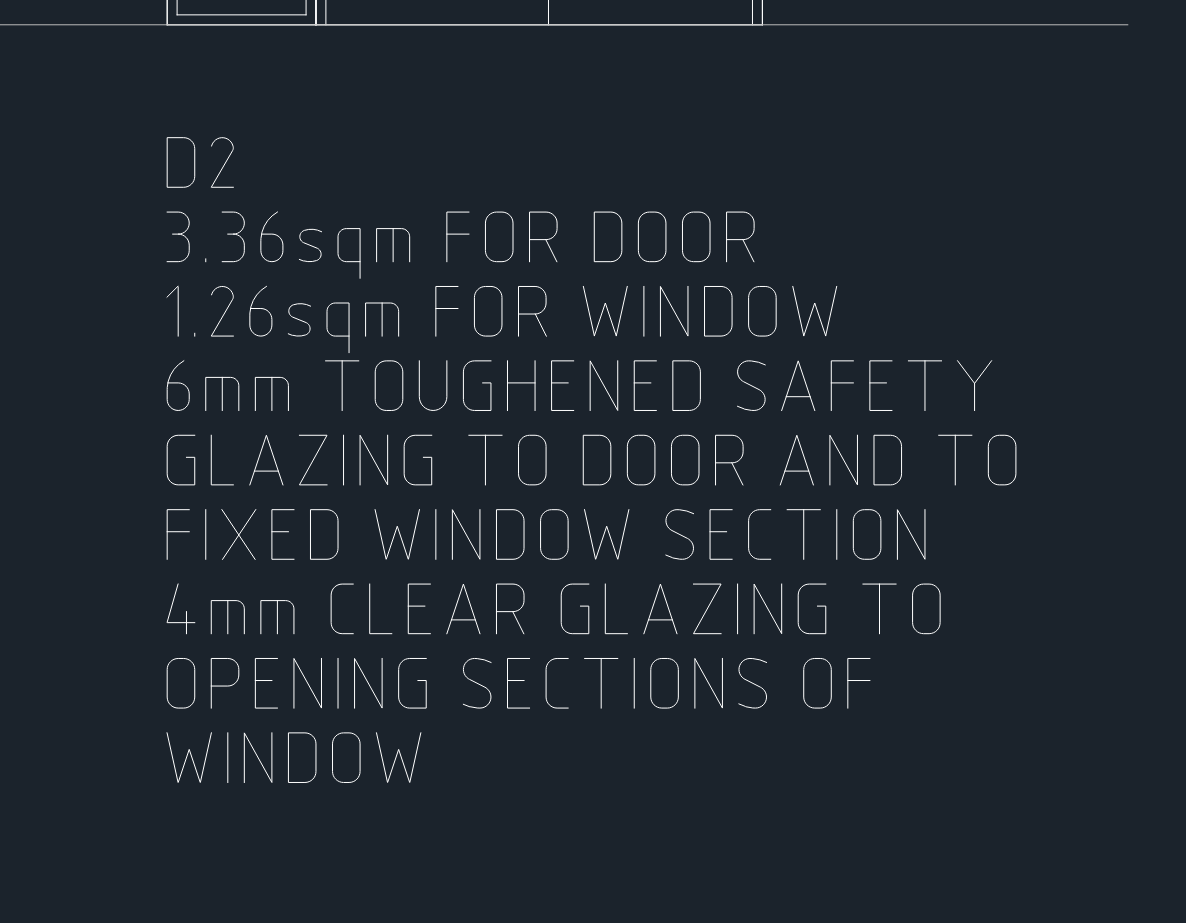

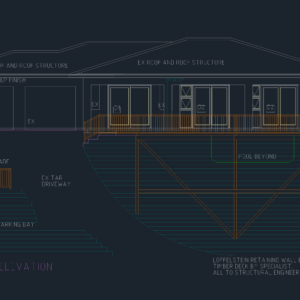

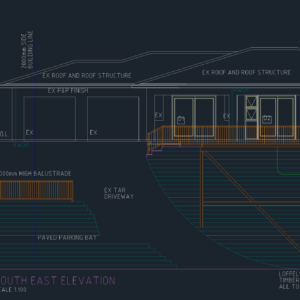

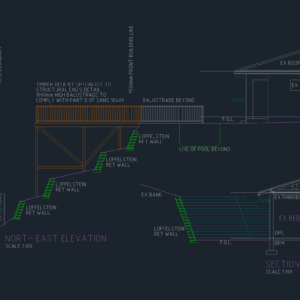

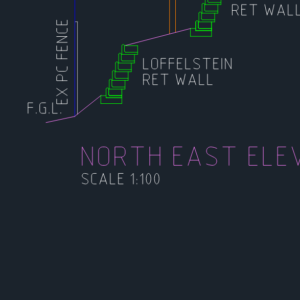

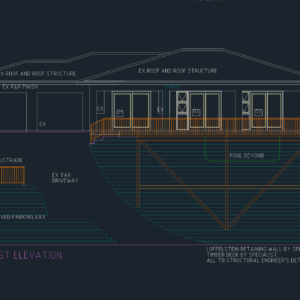

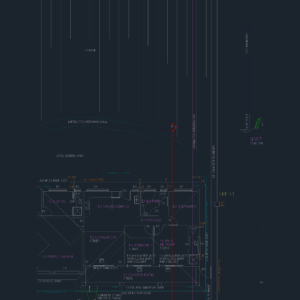

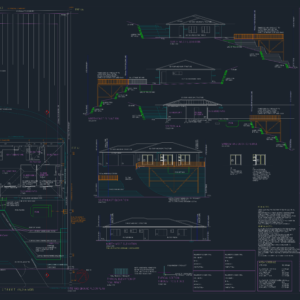

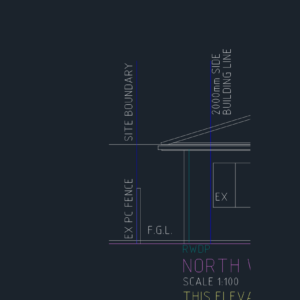

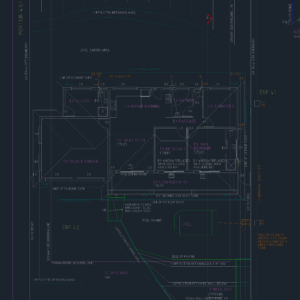

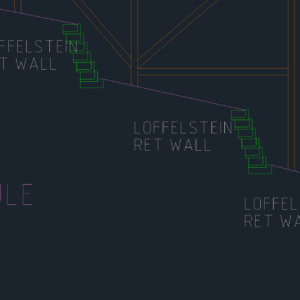

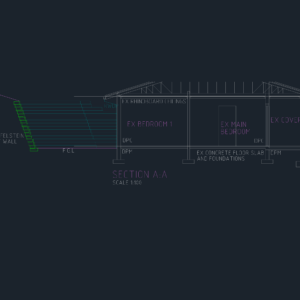

Submission drawing for residential additions and alterations at Erf 42 Desainagar. Complete set includes site plan, ground floor plan, four elevations, and cross-section A:A. Layout consists of 3 bedrooms, lviing, kitchen/dining, staff quarters, and double garage. Site details feature a pool with specialist-designed timber deck and Loffelstein retaining walls. Construction notes reference SANS 10400-A, 10400-P for drainage, and 10400-R for stormwater. Includes area schedule with FAR and coverage calcs. Typical pool fence elevation and section details provided. – Total site area: 1020 sqm – Total coverage: 169.88 sqm (16.6%) – SANS 10400 compliance notes – Glazing specs in door/window schedule
Residential Site Layout Floor Plan and Multiple Elevations Set
