Roof tile frenchs – Details with technical specifications

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Mei, French tile, Alfajia, Corner, tight, Machimbre plywood, Plastic membrane, Polystyrene, expanded, ribbon, Trapezoidal strip, Ladle, Fitted, Side closure, Side closure tile, French tile, Ladle, Machimbre plywood, tight, Liston trapez., Fitted, polystyrene, expanded, Plastic membrane, table, Nail clipboard, Layout of a tile, Flat french, Covered with French tiles

Raw text data extracted from CAD file:

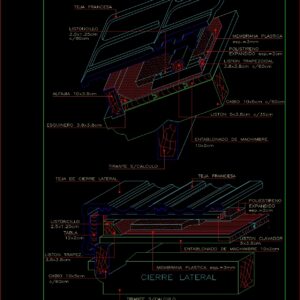

MEI TEJA FRANCESA ALFAJIA 10x3.8cm ESQUINERO 3.8x3.8cm TIRANTE S/CALCULO ENTABLONADO DE MACHIMBRE 10x2cm MEMBRANA PLASTICA esp.=3mm POLISTIRENO EXPANDIDO esp.=2cm LISTON 5x3.8cm c/35cm LISTON TRAPEZOIDAL 3.8x3.8cm c/60cm LISTONCILLO 2.5x1.25cm c/60cm CABIO 10x5cm c/60cm CIERRE LATERAL TEJA DE CIERRE LATERAL TEJA FRANCESA LISTONCILLO 2.5x1.25cm ENTABLONADO DE MACHIMBRE 10x2cm TIRANTE S/CALCULO LISTON TRAPEZ. 3.8x3.8cm CABIO 10x5cm c/60cm POLIESTIRENO EXPANDIDO esp.=2cm MEMBRANA PLASTICA esp.=3mm TABLA 12x2cm LISTON CLAVADOR 5x3.8cm ESQUEMA DE UNA TEJA FRANCESA PLANA 37.5cm 43-45cm 22cm 4cm CUBIERTA DE TEJAS FRANCESAS 24
