Roofed Parking 3D DWG Model for AutoCAD

Roofed Parking 3D DWG Model for AutoCAD

Roofed parking with capacity 4 cars ,6

Drawing labels, details, and other text information extracted from the CAD file:

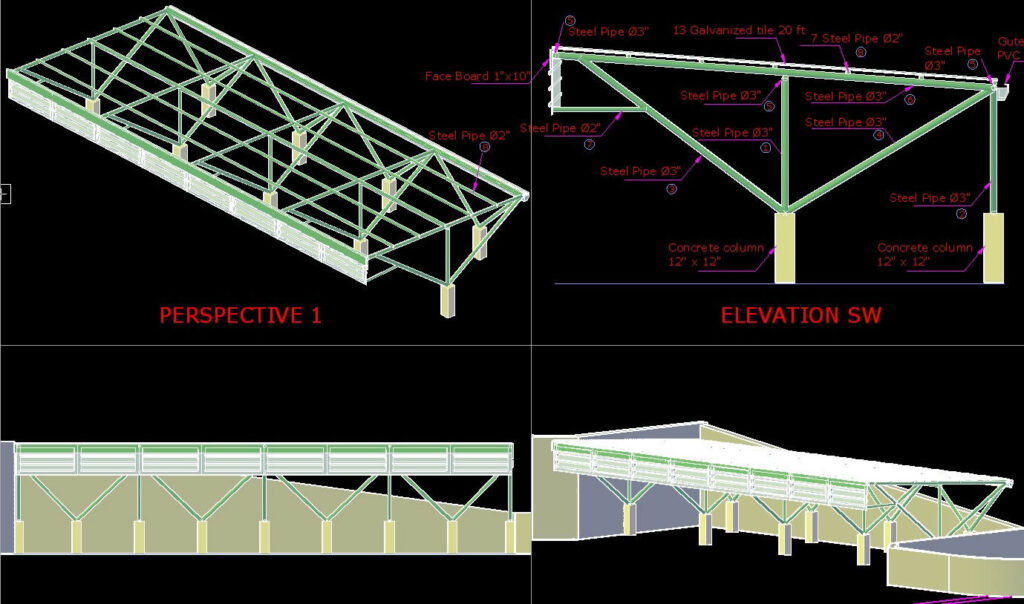

distribution of pipe on roof, elevation sw, elevation nw

Raw text data extracted from CAD file:

1 2 3 4 5 A B 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 1 1 1 1 1 1 1 6 6 6 6 6 DISTRIBUTION OF PIPE ON ROOF \A1;9'-10" \A1;3'-2" \A1;3'-2" \A1;3'-2" \A1;3'-2" \A1;3'-2" \A1;3'-2" \A1;11' \A1;11'-5" \A1;11'-5" \A1;11' \A1;11'-5" \A1;11'-5" \A1;11'-5" \A1;5'-9" \A1;5'-9" \A1;9'-1" PERSPECTIVE 1 ELEVATION SW ELEVATION NW PERSPECTIVE 2 Steel Pipe d3" Steel Pipe d3" Steel Pipe d3" Concrete column 12" x 12" Concrete column 12" x 12" Steel Pipe d2" Face Board 1"x10" 13 Galvanized tile 20 ft Steel Pipe d3" Steel Pipe d3" 6 1 Steel Pipe d3" 2 3 4 5 5 5 7 8 Steel Pipe d2" Steel Pipe d3" Steel Pipe d3" Gutering 6" PVC 7 Steel Pipe d2" 8

Language	English
Drawing Type	Model
Category	Transportation & Parking
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel, Other
Measurement Units	Metric
Footprint Area
Building Features	Garden / Park, Parking
Tags	autocad, capacity, car park, cars, DWG, estacionamento, model, parking, parkplatz, parkplatze, roofed, stationnement
