Roofing And Insulation DWG Detail for AutoCAD

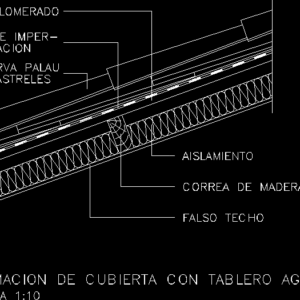

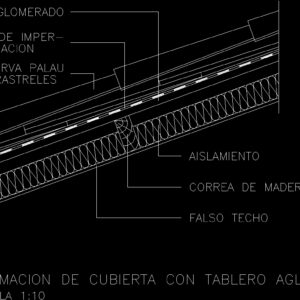

Cover formation with chipboard or agglomerated board – Details of materials and items in insulation.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

isolation, wooden strap, false ceiling, cover formation with chipboard, scale, chipboard, roof tile palau, between battens, sheet of, meabilization

Raw text data extracted from CAD file:
